| High-efficiency evaporator, fast ice production and stable output | |
 | |
| It adopts an annealing process to eliminate welding internal stress, has a stainless steel structure, high heat exchange efficiency, continuous and uninterrupted ice making, no decrease in full load operation, and can stably produce the rated ice output even for large tonnage models. | |
 | |
| Intelligent fully automatic control system | |
| |
| The PLC control program and touch screen control panel feature automatic water intake, automatic ice making, automatic shutdown when full of ice, automatic restart when ice is low, water shortage protection, high and low voltage overload protection, and fault code self-checking, requiring no dedicated personnel to operate it. | |
 | |
| Core Precision Spiral Ice Blade | |
| |
| Stainless steel precision spiral ice blade, scrapes ice evenly with less ice debris, wear-resistant and won't damage the evaporation tank, operates quietly, is durable, and saves energy. | |
 | |
| High-efficiency condenser for rapid heat dissipation and stable ice-making production | |
| |
| High-efficiency internally threaded copper tube heat exchanger, with a larger heat exchange area and better heat exchange effect.. | |
 | |
| Application Scenarios | |
| |
| Widely Used In Fields Such As Food Preservation,Beverage Cooling, And Industrial Cooling | |
 | |
| High-quality flake ice, highly efficient refrigeration | |
| |
| Ice flakes are available in thicknesses from 1.8 to 2.2 mm; the ice flakes have a large contact area, are dry and do not easily stick together or clump, resulting in rapid cooling and thorough mixing of materials. The ice flakes have rounded edges without sharp corners, preventing scratches or punctures to the materials being frozen during operation. | |
 | |

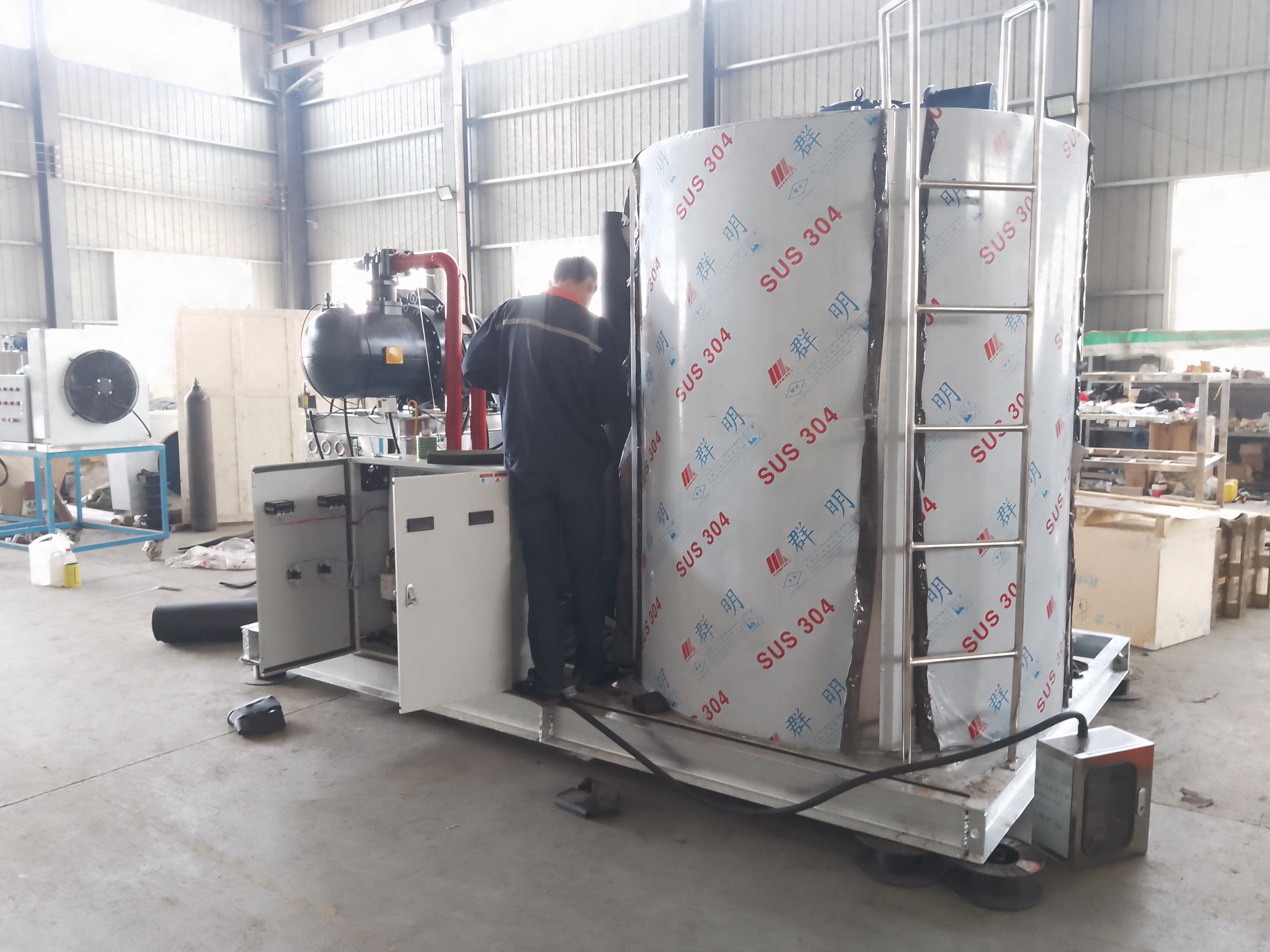

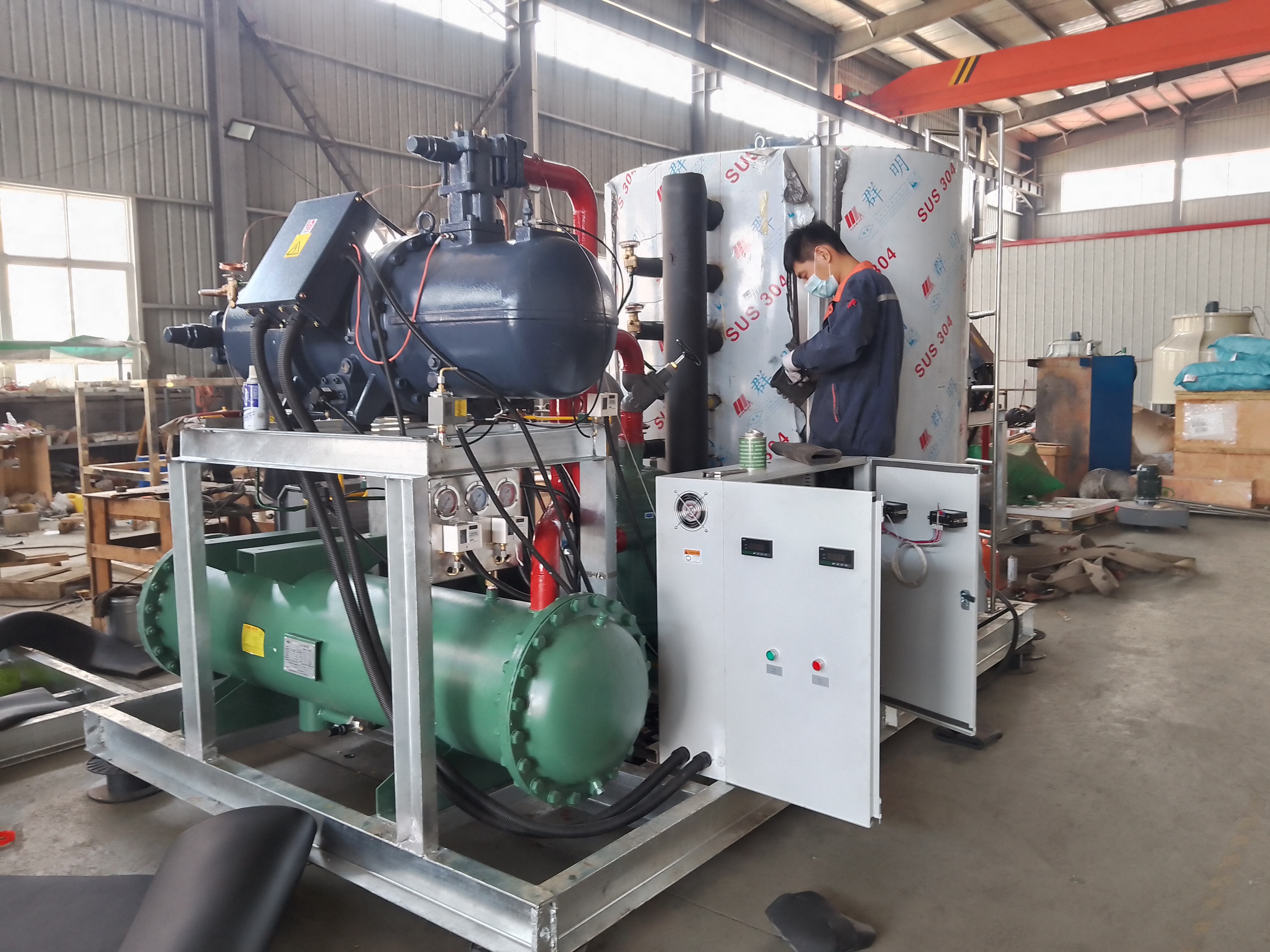

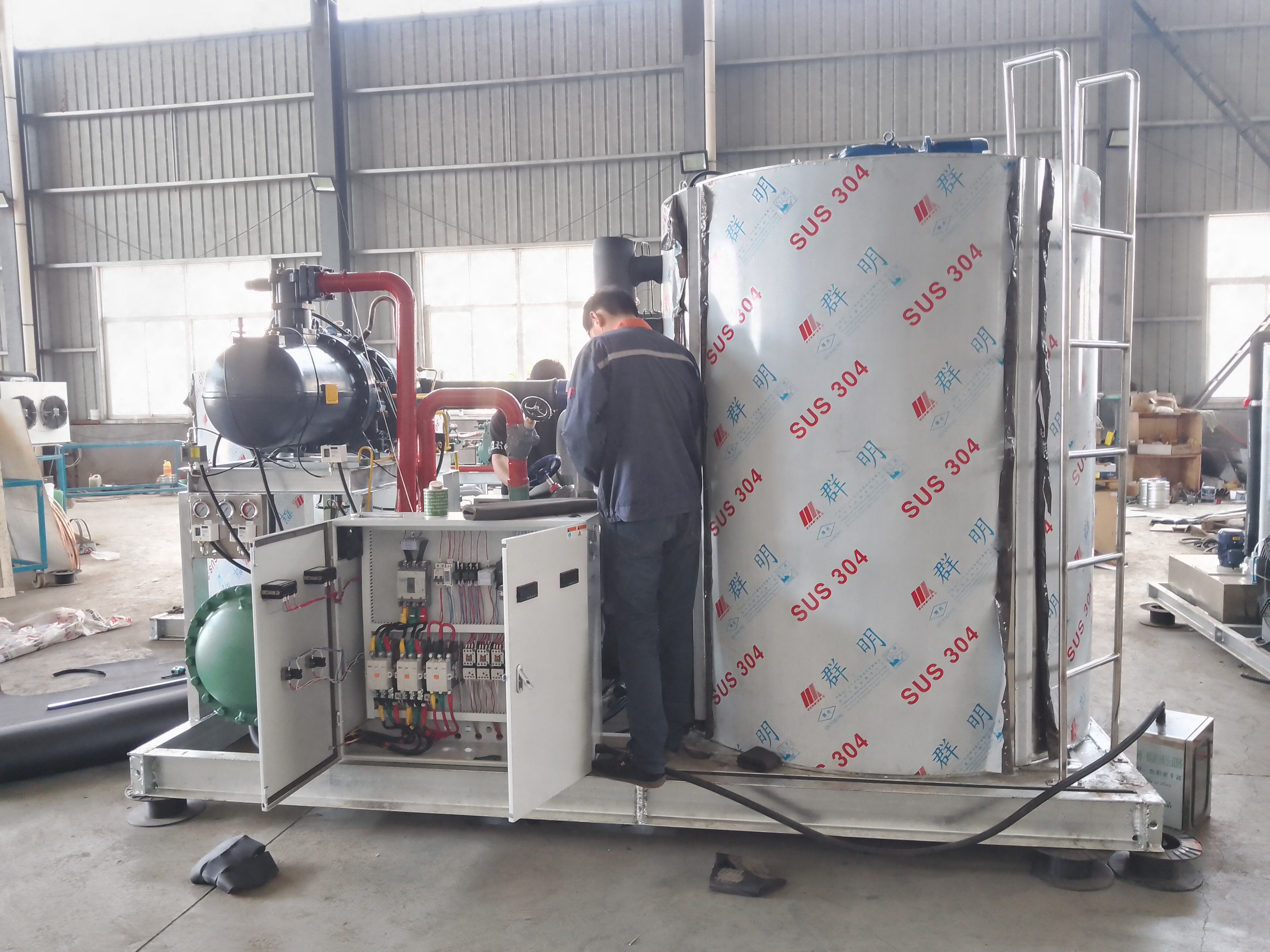

| Customer Visit | |
| |
| On-site visit to production lines, customized complete set solutions | |
 | |
|
|
|
 |
Technical Parameter |
|
Model |
RBF-25T |
The technical data based on |
25℃ambient temp. |
20℃water inlet temp. | |
The evaporating temperature |
-20℃ |
The condensing temperature |
38℃ |
Power supply |
3P/380V/50Hz |
The ice thickness |
1.6-2.3mm |
Refrigerant |
R404A |
Daily Output(Ton/24hrs) |
25tons |
Cooling Capacity(kw) |
164.5 |
General Power(kw) |
81 |
Compressor Input(kw) |
71KW |
Reductor Power(kw) |
1.1 |
Cooling Mode |
evaporation |
evaporative condenser power(kw) |
5 |
Water Inlet/ Drain Pipe |
2*3/4" |
