Flake Ice Evaporator

Description

+86-18596077851

[email protected]

Description

Descriptions

Professional Flake Ice Evaporator: The Core of High-Efficiency Ice Production in the Food Industry

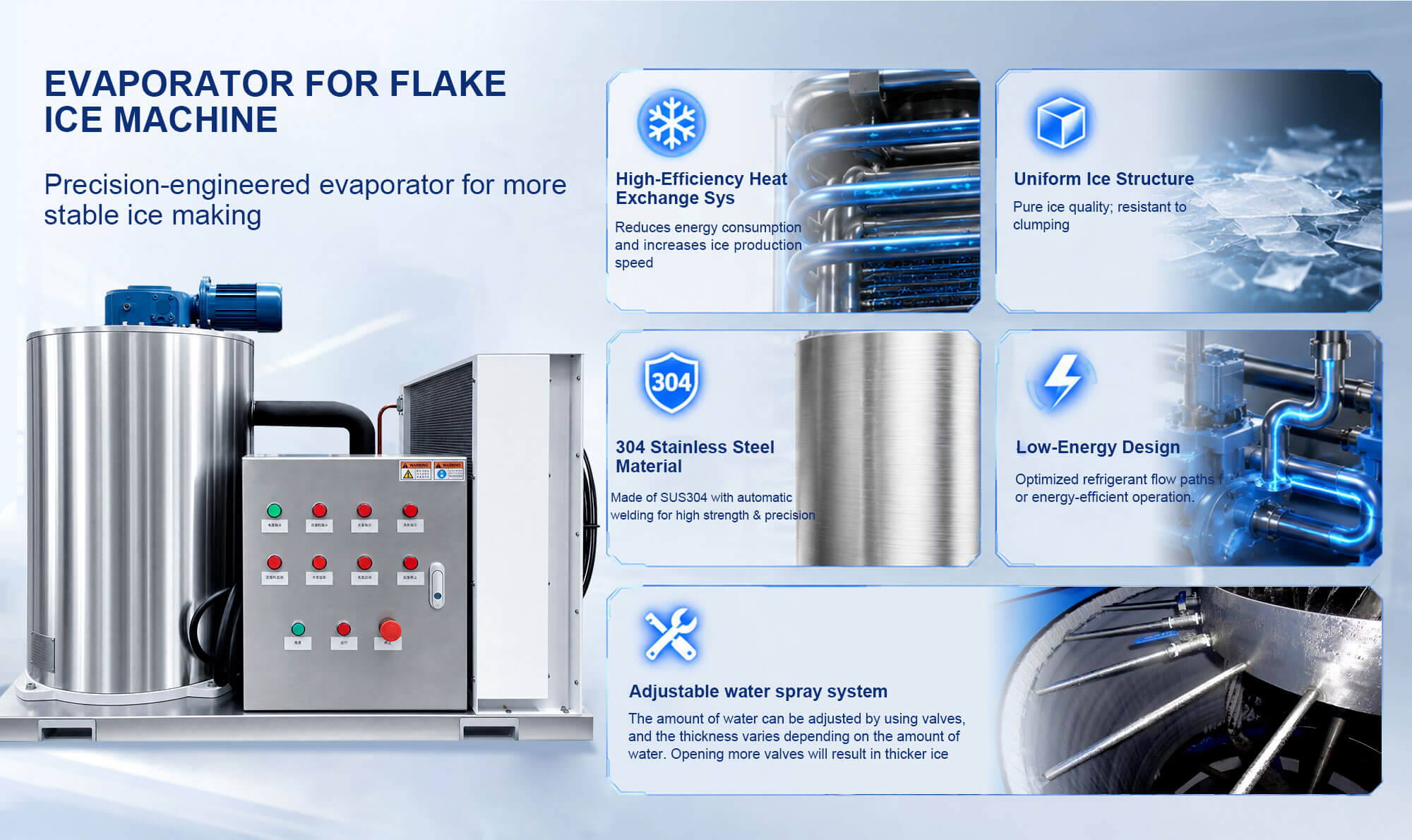

The Flake Ice Evaporator serves as the core component of industrial-grade flake ice machines; its performance directly determines the quality of the ice flakes, energy efficiency, and overall equipment stability. As a critical piece of equipment in sectors such as food processing, cold chain logistics, and seafood preservation, this evaporator utilizes optimized heat exchange designs and advanced material engineering to achieve efficient, hygienic, and sustainable flake ice production.

Core components for flake ice making

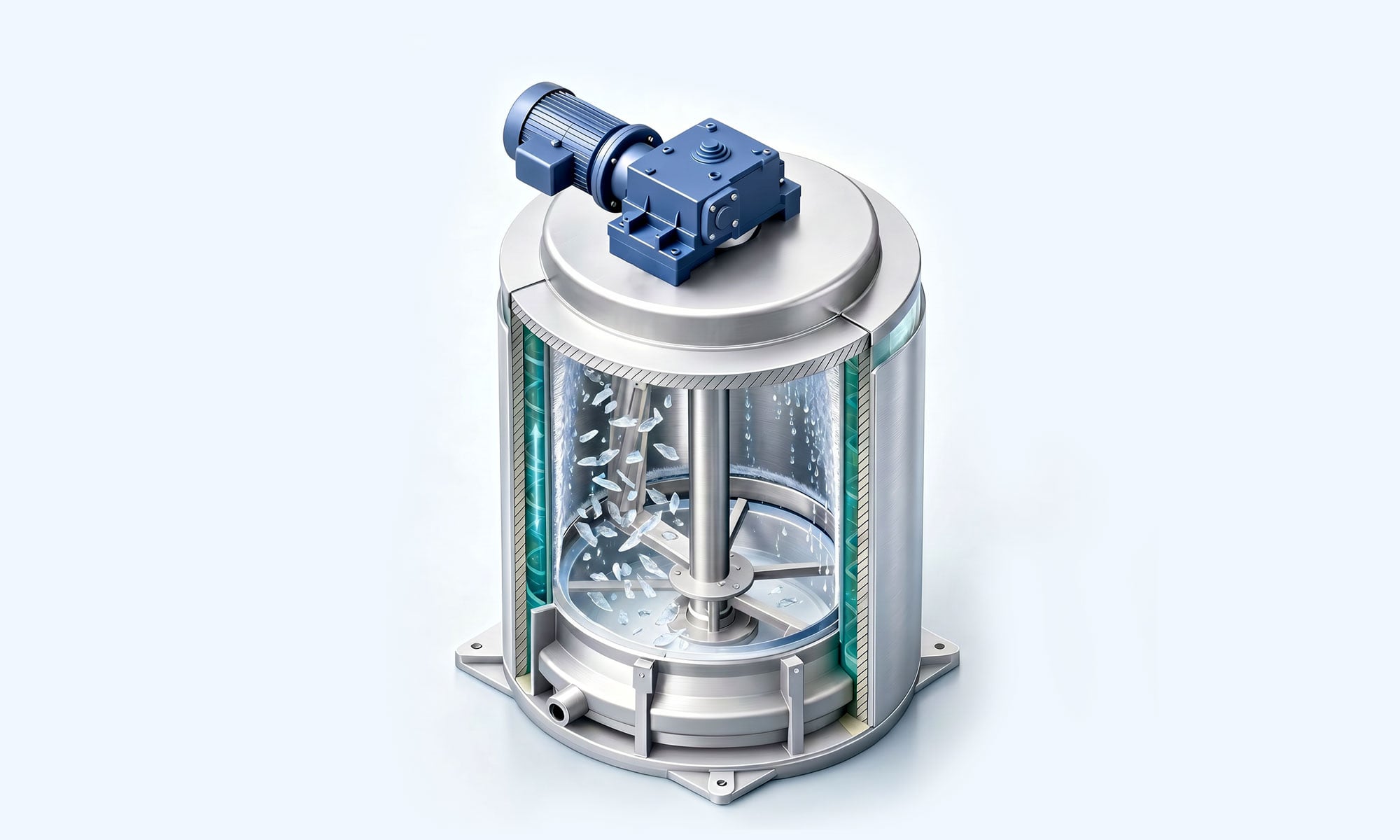

The flake ice evaporator serves as the core heat-exchange component of the ice-making unit. Refrigerant circulates within the cylindrical body to facilitate heat exchange, forming a uniform layer of ice on the inner wall, which is then continuously scraped off by a blade mechanism to produce flake ice. The unit features a stationary vertical design: the evaporator cylinder remains fixed while an internal scraper rotates along the inner wall to harvest the ice. This configuration minimizes wear and ensures a tight seal, effectively preventing refrigerant leakage.

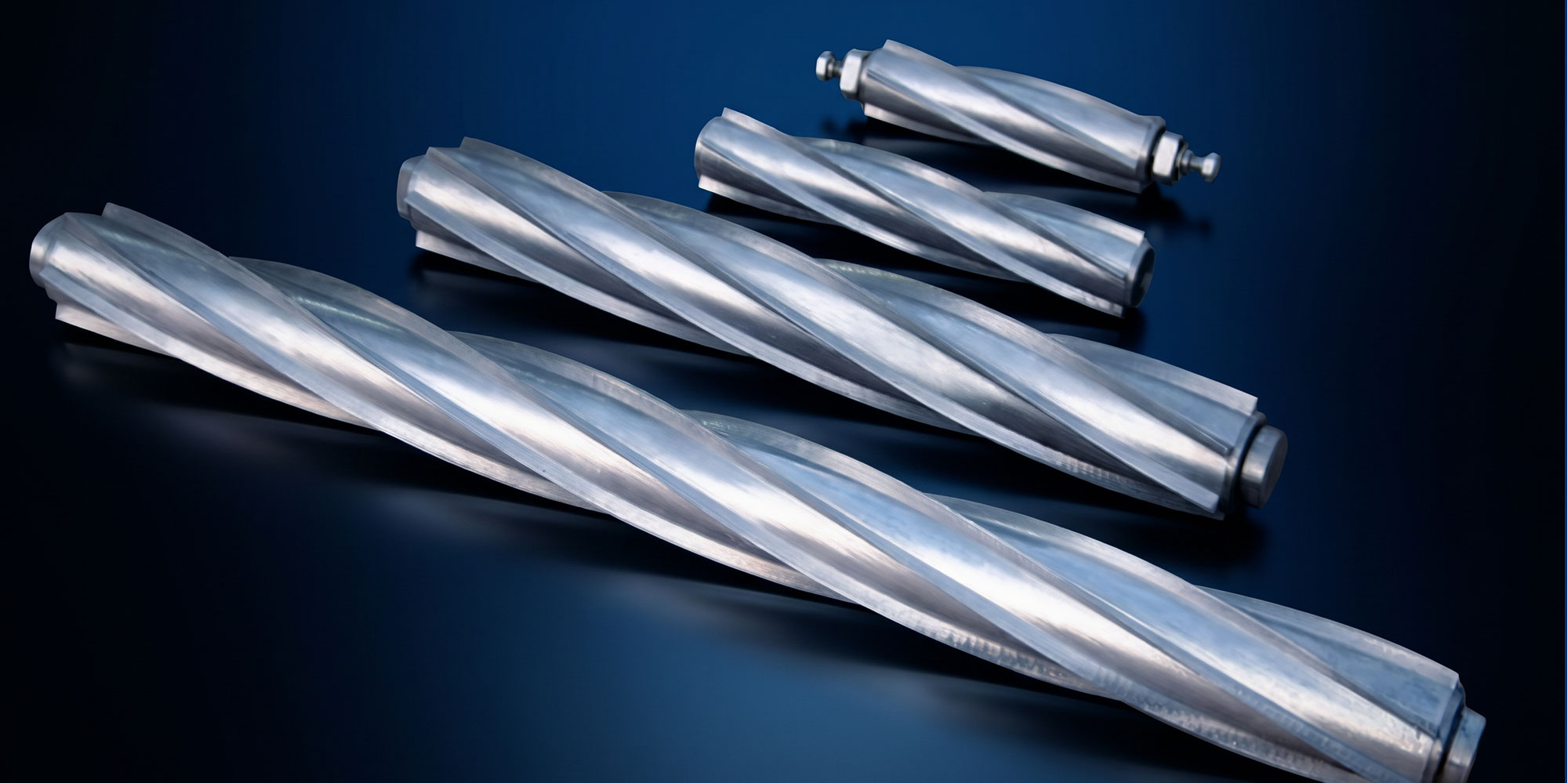

Core Precision Spiral Ice Blade

Stainless steel precision spiral ice blade, scrapes ice evenly with less ice debris, wear-resistant and won't damage the evaporation tank, operates quietly, is durable, and saves energy.

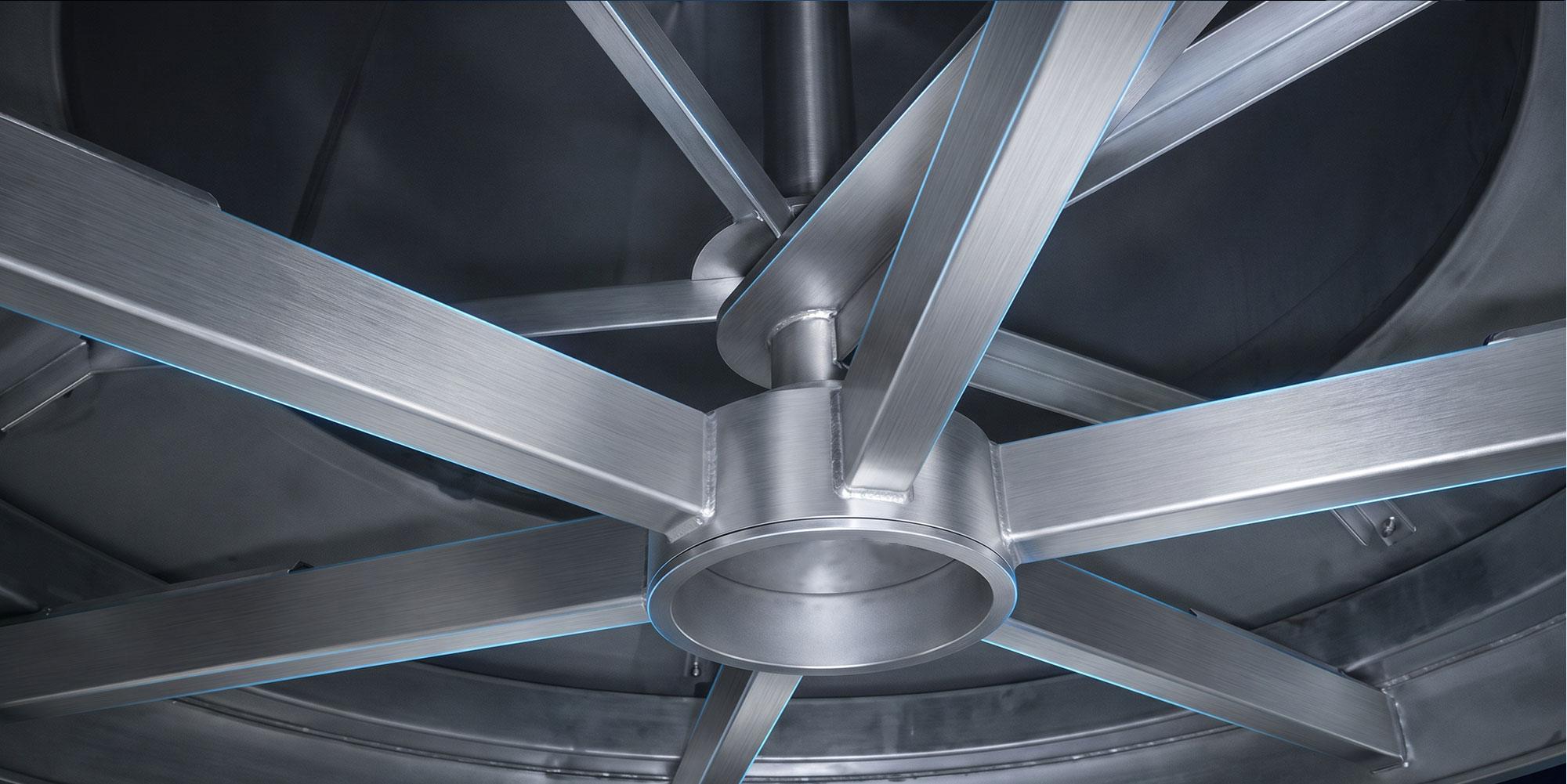

Stable top and bottom base

The upper and lower bases of the evaporator are constructed from carbon steel, offering excellent value for money; the surface is treated for rust prevention to ensure durability, and the robust load-bearing capacity provides a stable structure for the equipment during operation.

Application Scenarios

Widely Used In Fields Such As Food Preservation,Beverage Cooling, And Industrial Cooling

High-quality flake ice, highly efficient refrigeration

Ice flakes are available in thicknesses from 1.8 to 2.2 mm; the ice flakes have a large contact area, are dry and do not easily stick together or clump, resulting in rapid cooling and thorough mixing of materials. The ice flakes have rounded edges without sharp corners, preventing scratches or punctures to the materials being frozen during operation.

Customer Visit

On-site visit to production lines, customized complete set solutions

Model	Capacity	Refrigerating	Power supply	Total power	refrigerants	Dimension (mm)	Weight
Model	(kg/24h)	capacity (kw)	Power supply	(kw)	refrigerants	Dimension (mm)	(kg)
RBFE-0.5T	500	3.7	3P/380V/50HZ	0.32	R404A/R22	900580780	115
RBFE-1T	1,000	6.5	3P/380V/50HZ	0.32	R404A/R22	900580880	136
RBFE-1.2T	1,200	7.8	3P/380V/50HZ	0.32	R404A/R22	900580980	148
RBFE-1.5T	1,500	9.8	3P/380V/50HZ	0.32	R404A/R22	900580980	156
RBFE-2T	2,000	13	3P/380V/50HZ	0.39	R404A/R22	9106801040	246
RBFE-2.5T	2,500	16.2	3P/380V/50HZ	0.39	R404A/R22	9106801200	293
RBFE-3T	3,000	19.5	3P/380V/50HZ	0.39	R404A/R22	9106801200	324
RBFE-4T	4,000	26	3P/380V/50HZ	0.57	R404A/R22	11908901250	368
RBFE-5T	5,000	32.5	3P/380V/50HZ	0.57	R404A/R22	11908901450	436
RBFE-8T	8,000	49	3P/380V/50HZ	0.95	R22/R717	172012701560	638
RBFE-10T	10,000	65	3P/380V/50HZ	0.95	R22/R717	172012701700	795
RBFE-15T	15,000	95	3P/380V/50HZ	1.2	R22/R717	216016501865	1265
RBFE-20T	20,000	130	3P/380V/50HZ	1.2	R22/R717	216016502050	1968
RBFE-25T	25,000	160	3P/380V/50HZ	1.2	R22/R717	216016502265	2263
RBFE-30T	30,000	195	3P/380V/50HZ	1.89	R22/R717	286021802350	2862

Advantages & Features:

High-Efficiency Heat Exchange Structure

Employs enhanced heat transfer tube bundles or plate-type evaporation designs to boost the heat exchange efficiency between the refrigerant and water, thereby shortening the ice-forming cycle.

A precise temperature control system ensures uniform ice flake thickness (typically 1–2 mm), producing dry, fluffy, "snow-like" ice flakes that offer rapid cooling and resist clumping.

Food-Grade Safety Materials

The evaporator's contact surfaces are integrally formed from 304 stainless steel, complying with international food hygiene standards (e.g., FDA, CE). This material is corrosion-resistant and easy to clean, preventing secondary

contamination of the ice flakes.

A modular design facilitates quick disassembly for maintenance, thereby minimizing equipment downtime.

Energy Efficiency and Stability

Integrates a high-efficiency compressor and an intelligent defrosting system, reducing energy consumption by up to 25% compared to traditional models, and is capable of sustaining continuous, high-intensity operation.

An adaptive load adjustment function dynamically regulates production capacity based on ambient temperature and ice demand, ensuring stable output within an operating environment ranging from -10°C to 45°C.

Application:

Food Processing: Used in stages such as meat slaughtering, seafood processing, and bakery cooling; direct contact between the ice flakes and food allows for rapid cooling to 0–4°C, extending shelf life and locking in freshness.

Commercial Cold Chain: Ideal for supermarket fresh food displays and central kitchen distribution centers; the ice flakes offer excellent coverage and breathability, helping to preserve the visual appeal and quality of the merchandise.

Industrial Cooling: In sectors such as chemicals and pharmaceuticals, it provides a continuous low-temperature medium for reaction vessels or production lines, preventing process disruptions caused by water temperature fluctuations.

Services

Service before sale

1.One-on-one exclusive customer service staff, 24 hours online.

2.Inquiry, email, message will be replied at first time.

3.Supply professional technical parameters, video picture sharing, project design.

Service on sale

1.Ensure customer payment security.

2.Ensure the customer's price is stable and reasonable.

3.Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.

Service after sale

1.Arrange high-efficiency delivery and safe transport.

2.Supply installation training, direction for use, maintenance instructions, technical support, all necessary documents you need and oversea service.

FAQ

1.Can I customize the machine?

Yes. You can choose output, material, accessories brand, etc.

2.Are the prices on the website accurate?

No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.

3.How do I get a more accurate price?

Tell the salesman your requirements and they will give you a more accurate price.

4.How long will it take to make the machines?

The production time required for machines of different output is different. Peak season requires longer production time.

5.Is there any guarantee for my payment?

In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.

6.How do I receive the goods?

After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
