| Brand-name Compressors | |
 | |
| The equipment is equipped with compressors from renowned international brands such as Bitzer and Refcomp, delivering robust power and powerful cooling performance, ensuring stable and durable operation of the entire unit. | |
 | |

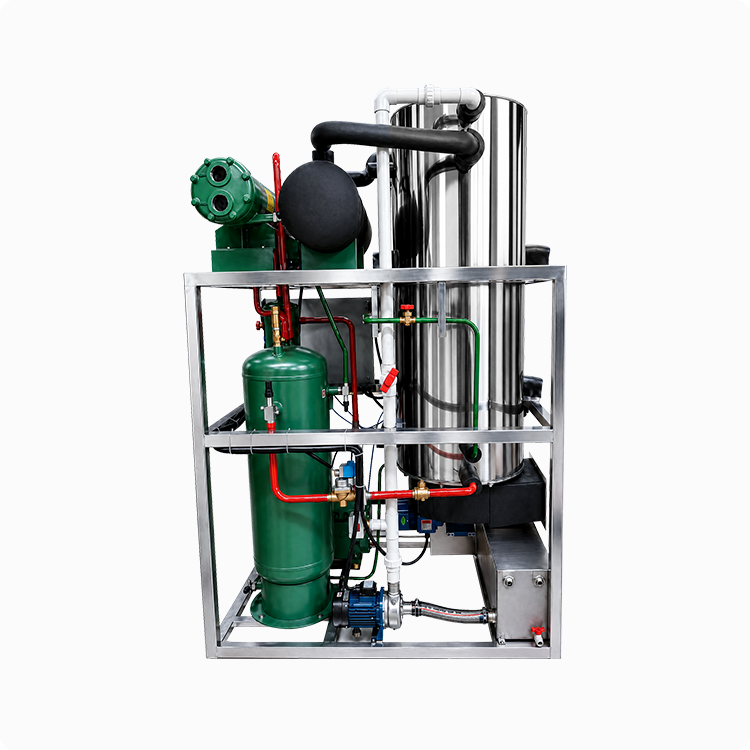

| Precision-Crafted Piping | |
| |
| Made from food-grade 304 stainless steel and treated with a professional annealing process, the piping offers excellent toughness, deformation resistance, and corrosion resistance, ensuring a longer service life. | |
 | |
| Sturdy Frame | |
| |
| The machine's framework is constructed from food-grade materials and features a robust, stable load-bearing structure; it is resistant to deformation and capable of continuous, full-load operation over the long term. | |
 | |
| Control Panel | |
| |
| Equipped with an intelligent PLC control system and a high-definition touchscreen, it offers intuitive and simple operation; it supports automatic water refilling, ice making, and ice harvesting processes, as well as programmable start/stop scheduling, ensuring a high level of automation. | |
 | |
| Tubular Ice Of Superior Quality | |
| |
| Crystal clear, high-quality tubular ice melts slowly and is widely used in various industries | |
 | |
| Application Scenarios | |
| |
| Widely Used In Fields Such As Food Preservation,Beverage Cooling, And Industrial Cooling | |
 | |
| Customer Visit | |
| |
| On-site visit to production lines, customized complete set solutions | |
 |
 |
 |
| Items/Model | RBT-1T(1ton/day) | RBT-2T (2 tons/day) | RBT-3T (3T/day) | RBT-5T (5 tons/day) | RBT-10T (10 tons/day) |
| Compressor | Copeland/Refcomp | Copeland/Refcomp | Refcomp/Bitzer | Refcomp/Bitzer | Refcomp/Bitzer |
| Cooling method | Water cooling / Air cooling | Water cooling / Air cooling | Water cooling / Air cooling | Water cooling / Air cooling | Water cooling |
| Compressor power | 5 | 10 | 15 | 25 | 50 |
| Ice Cutter Power | 0.75KW | 0.75KW | 0.75KW | 0.75KW | 0.75KW |
| Circulating water pump power | 0.75KW | 1.1KW | 1.1KW | 1.5KW | 1.5KW |
| Cooling Tower Water Pump | 1.1KW | 1.5KW | 1.5KW | 3KW | 4KW |
| Cooling Tower Motor | 0.18KW | 0.37KW | 0.37KW | 0.55KW | 1.5KW |
| Main Machine Dimensions | 1400*1100*1950 | 1500*1200*2130 | 1700*1300*2260 | 1900*1400*2730 | 2200*1600*3040 |
| Water Tower Size | 1000*1000*1900 | 1200*1200*2200 | 1200*1200*2200 | 1670*1670*2290 | 2120*2120*2550 |
| Main machine weight (kg) | 730 | 1000 | 1150 | 1700 | 2500 |
| Water tower weight (kg) | 60 | 80 | 80 | 116 | 290 |
