| Brand-name Compressors | |
 | |
| The equipment is equipped with compressors from renowned international brands such as Bitzer and Refcomp, delivering robust power and powerful cooling performance, ensuring stable and durable operation of the entire unit. | |
 | |
| Precision-Crafted Piping | |
| |
| Made from food-grade 304 stainless steel and treated with a professional annealing process, the piping offers excellent toughness, deformation resistance, and corrosion resistance, ensuring a longer service life. | |
 | |

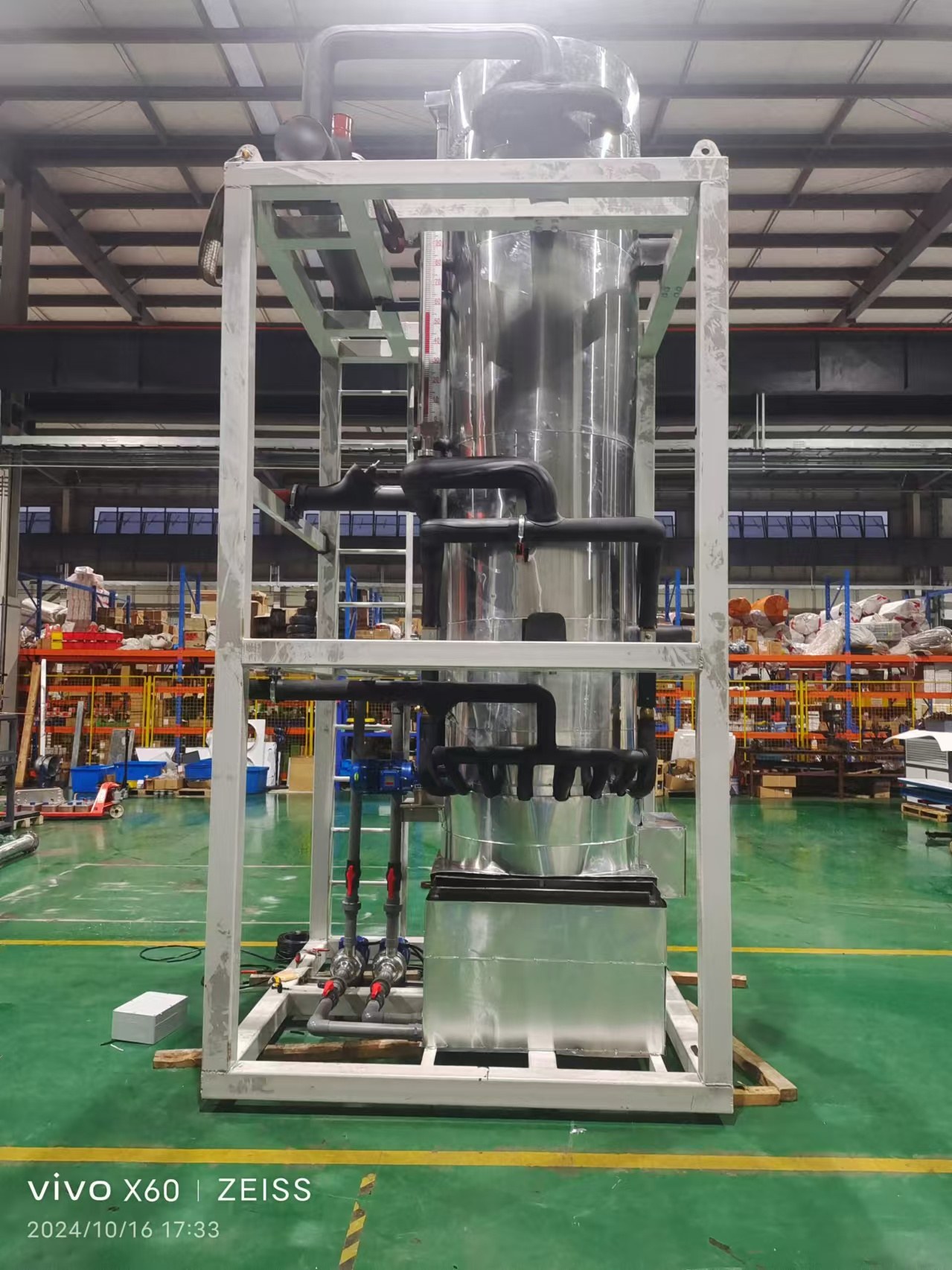

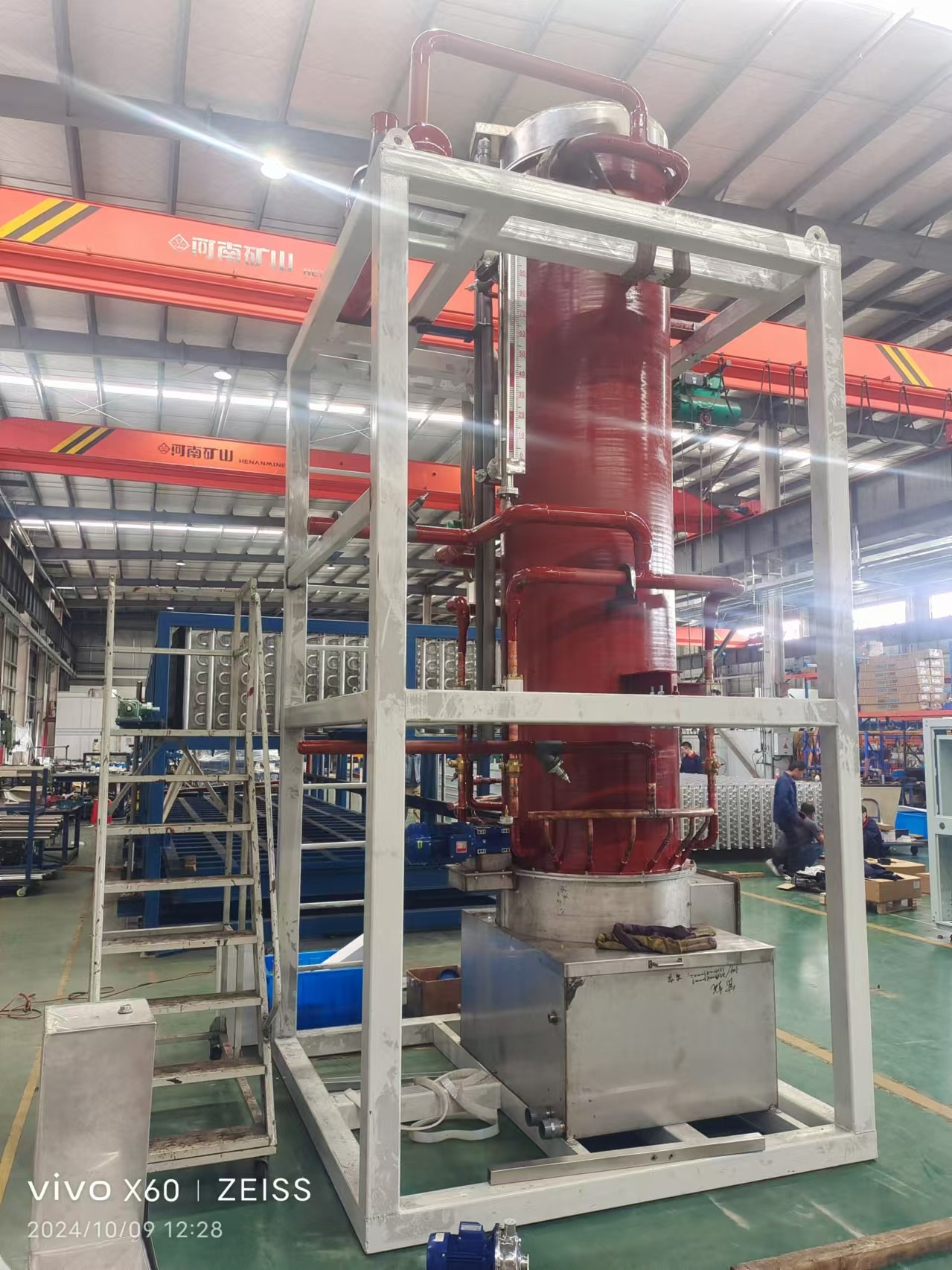

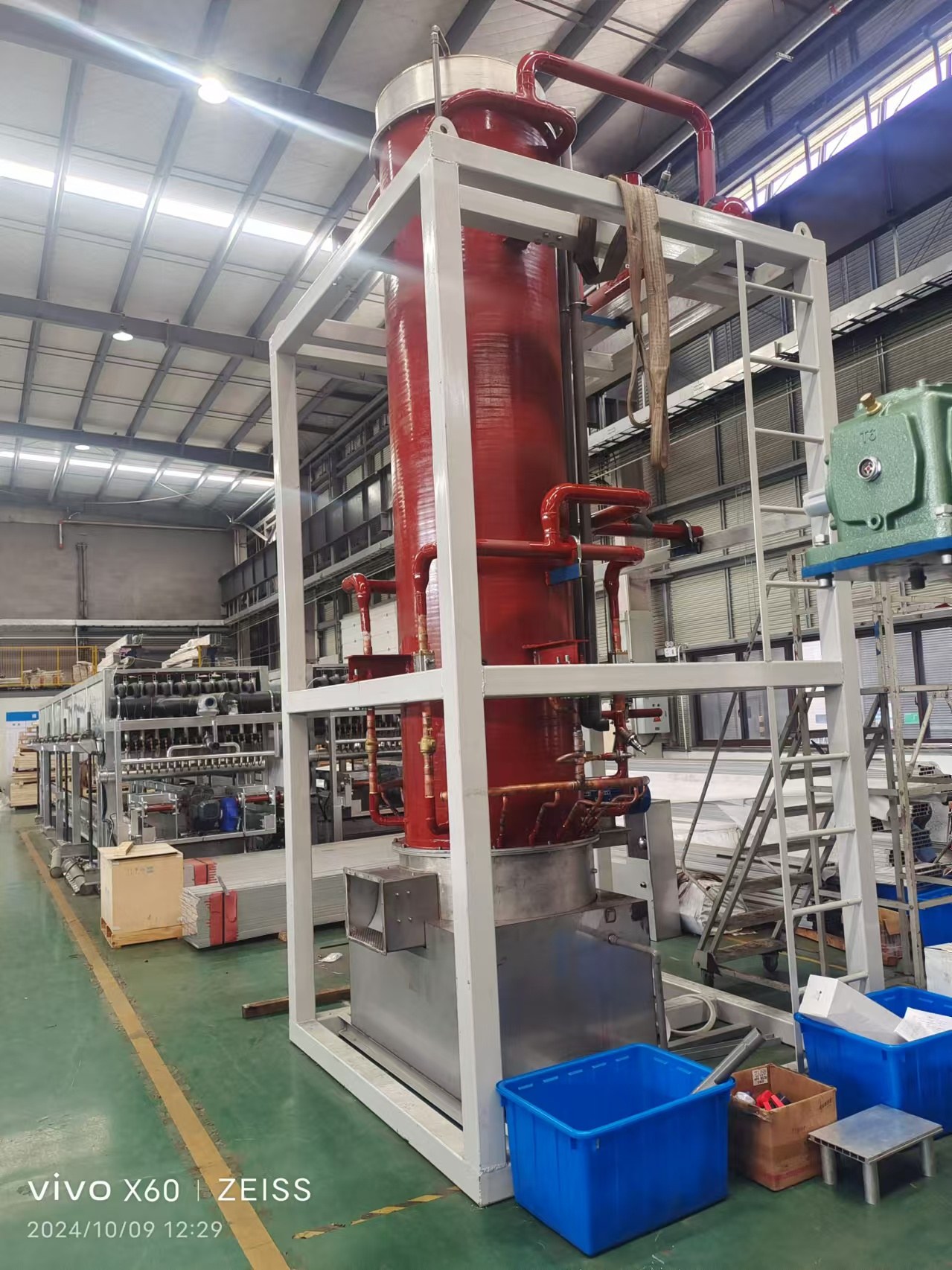

| Sturdy Frame | |
| |
| The machine's framework is constructed from food-grade materials and features a robust, stable load-bearing structure; it is resistant to deformation and capable of continuous, full-load operation over the long term. | |
 | |
| Control Panel | |
| |
| Equipped with an intelligent PLC control system and a high-definition touchscreen, it offers intuitive and simple operation; it supports automatic water refilling, ice making, and ice harvesting processes, as well as programmable start/stop scheduling, ensuring a high level of automation. | |
 | |
| Tubular Ice Of Superior Quality | |
| |
| Crystal clear, high-quality tubular ice melts slowly and is widely used in various industries | |
 | |
| Application Scenarios | |
| |
| Widely Used In Fields Such As Food Preservation,Beverage Cooling, And Industrial Cooling | |
 | |
| Customer Visit | |
| |
| On-site visit to production lines, customized complete set solutions | |
 | |
 |
 |

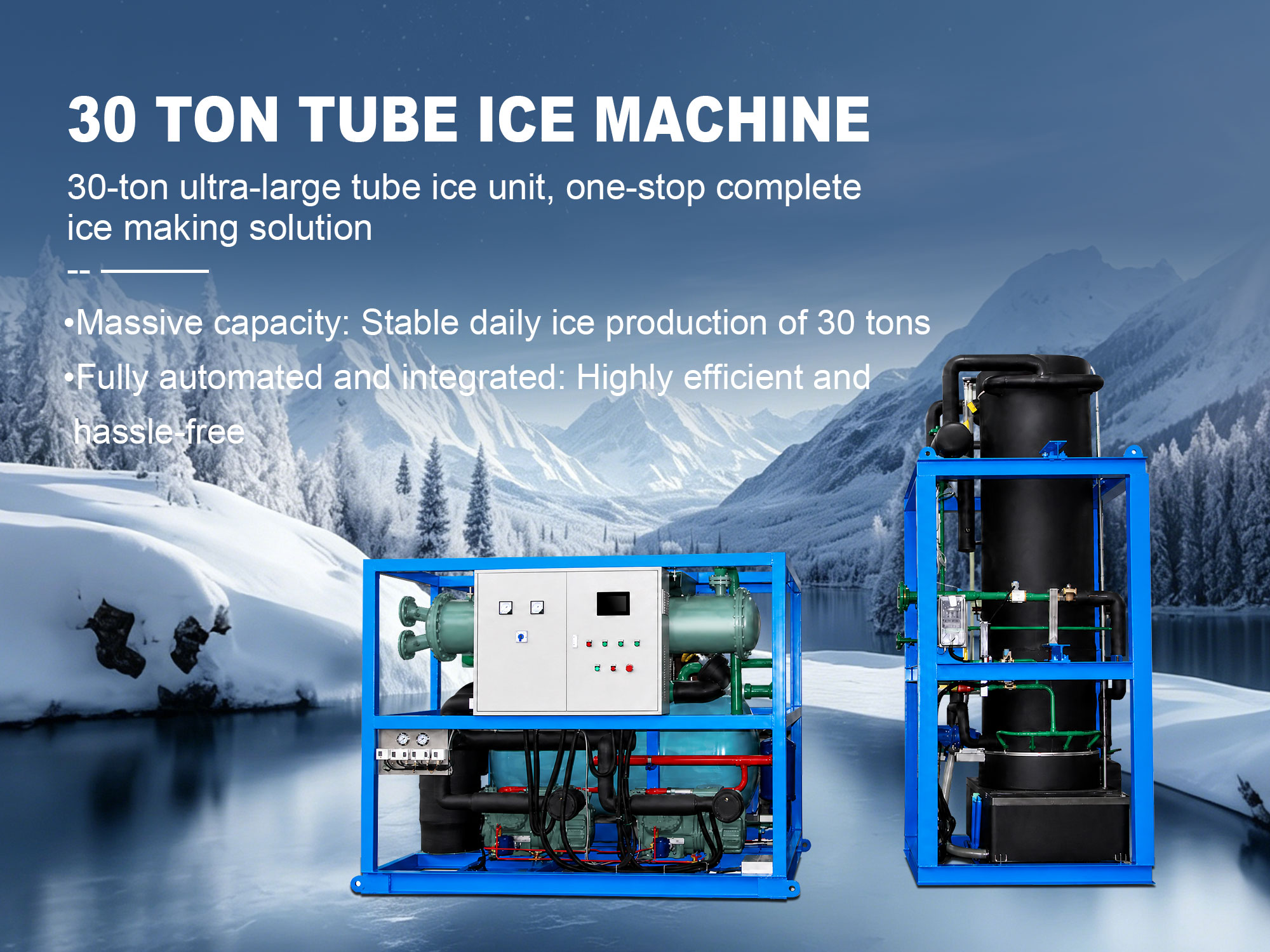

| Technical Specifications | |
| Model | RBI30T-R4AW |
| The technical data based on: | 30℃ambient temp. |
| 20℃water inlet temp. | |
| The evaporating temperature | -20℃ |
| The condensing temperature | 40℃ |
| Power supply | 3P/380V/50Hz |
| Tube Size(mm) | Φ22/29/35/42 |
| Refrigerant | R404A |
| Daily Output(Ton/24hrs) | 30ton |
| Cooling Capacity(kw) | 242.7 |
| General Power(kw) | 115.7 |
| Compressor Input(kw) | 33.5*3KW |
| Reductor Power(kw) | 1.5KW |
| Cooling Mode | Water Cooling |
| Water Inlet/ Drain Pipe | 2" |
| Weight(kg) | 6400kg |
| Dimension(mm) | 2900*2100*2300 |
| 2000*1600*4000 | |
 |
 |
 |
| Technical parameters of All the Robin Tube ice machine | |||||||
| Model | Daily output | Compressor Power | Fan Power for Cooling Tower | Cooling Pump Power | Unit Size (L*W*H mm) | Unit N.W. (kg) | |
| (T/ 24 h) | (Integrated Type) | ||||||
| RBT-1T | 1 | 4.1 kw | 0.25 kw | 1.1 kw | 1100*900*1780 | 900 | |
| RBT-2T | 2 | 7.44 kw | 0.25 kw | 1.5 kw | 1250*1000*1950 | 1200 | |
| RBT-3T | 3 | 10 kw | 0.55 kw | 1.5 kw | 1300*1100*2200 | 1500 | |
| RBT-5T | 5 | 19.9 kw` | 0.55 kw | 2.2 kw | 1600*1400*2250 | 1800 | |
| Fan Power for Cooling Tower | Unit size (L*W*H mm) | ||||||
| Model | Daily output | Compressor | Cooling Pump Power | （Split type） | Unit N.W. | ||
| (T/24 h) | Power | Main Host | Brine Tank | (kg) | |||
| RBT-10T | 10 | 27.9 kw | 1.5 kw | 4 kw | 1900*1600*1850 | 1200*1200*3390 | 3500 |
| RBT-12T | 10 | 39.8 kw | 1.5 kw | 4 kw | 2400*1700*2000 | 1200*1200*3390 | 3700 |
| RBT-15T | 15 | 46.4 kw | 1.5 kw | 5 kw | 2700*2000*2200 | 1500*1200*4250 | 4250 |
| RBT-20T | 20 | 55.7 kw | 2.2 kw | 7.5 kw | 2800*2200*2500 | 1500*1200*4700 | 6500 |
| RBT-30T | 30 | 83.6 kw | 2.2 kw | 7.5 kw | 3100*2200*2500 | 1800*1500*5700 | 7200 |
| RBT -40T | 40 | 111.4 kw | 2.2 kw | 11 kw | 3900*2250*2500 | 2000*1500*6800 | 8300 |
| RBT-50T | 50 | 139.3 kw | 3.75 kw | 15 kw | 4500*2250*2500 | 2200*1800*7200 | 9500 |
