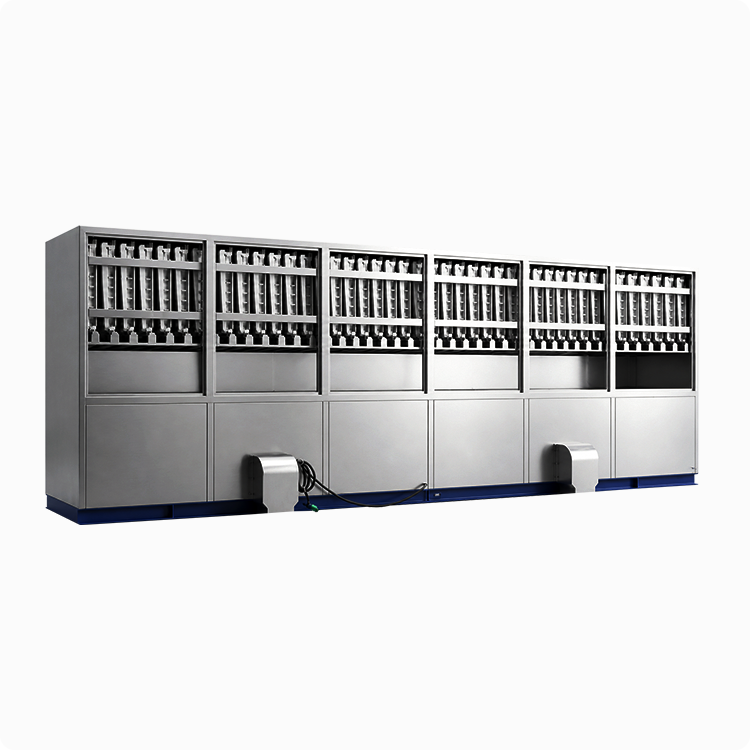

20 ton cube ice machine

Descriptions
20-Ton Cube Ice Machine: An Industrial-Grade, High-Efficiency Ice-Making Solution
The 20-ton cube ice machine is a high-performance ice-making unit specifically engineered to meet large-scale commercial and industrial ice requirements. With a daily ice production capacity reaching up to 20 tons, it reliably satisfies the intensive ice demands of sectors such as restaurant chains, food processing, large-scale cold chain warehousing, and the fisheries and aquaculture industries.
Brand-name Compressors
The equipment is equipped with compressors from renowned international brands such as Bitzer and Refcomp, delivering robust power and powerful cooling performance, ensuring stable and durable operation of the entire unit.
Stainless steel evaporator
The evaporator has the characteristics ofanti-corrosin, safety and sanitation, largecontact area, and accelerated heat andcold exchange with the refrigerant.
Control Panel
Equipped with a touchscreen display, supporting Chinese, English, and Spanish language switching, and can also be customized to input programs in other languages ​​according to customer needs; featuring multiple protection mechanisms including compressor, phase sequence, high and low pressure, overload, and water shortage protection, automatically protecting the equipment in case of failure and extending the service life of the entire machine.
Intelligent Control
Utilizing Siemens PLC intelligent control, the entire process of water replenishment, ice making, and ice removal is fully automated, making it easy and user-friendly to operate.
High-Quality Squar
Properly shaped & crystal-clear cube ice with slow melting rate, flexibly applicable to a wide range of industries and scenarios.
Application Scenarios
Widely Used In Fields Such As Food Preservation,Beverage Cooling, And Industrial Cooling
Customer Visit
On-site visit to production lines, customized complete set solutions

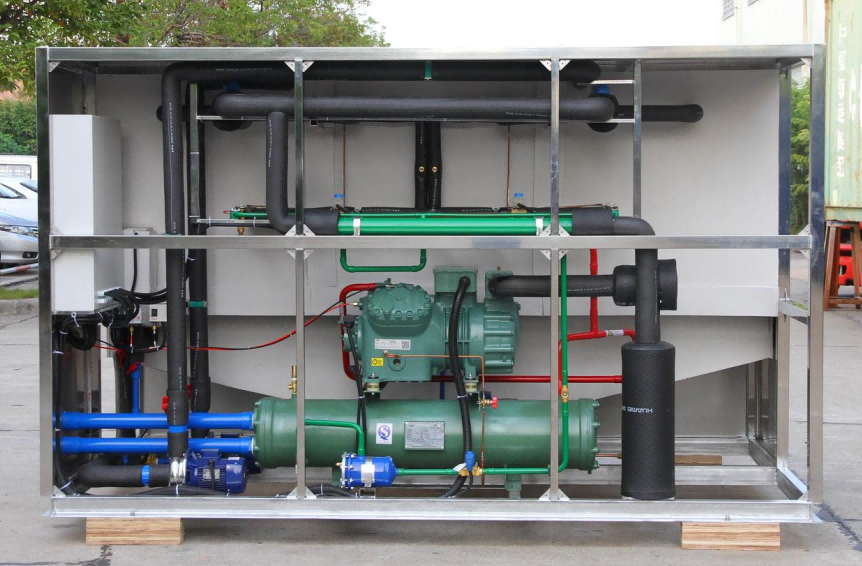

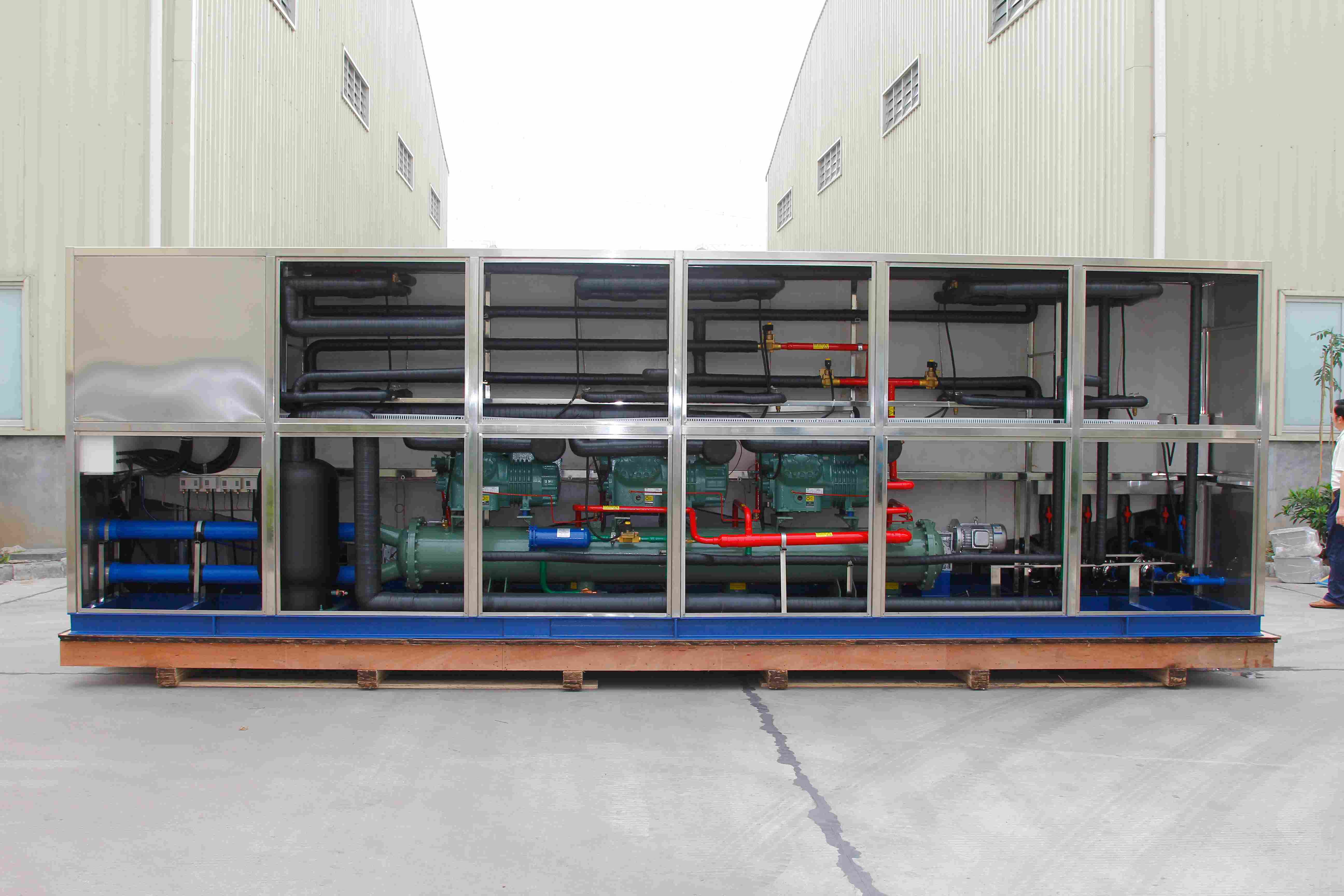

10T.jpg 1667182561(1).png
Technical Parameter
Capacity 20 Ton/24hours
Refrigerant R22/R404A/R507/R449
Compressor Brand Bitzer/Refcomp
Cooling Way Water Cooling
Compressor Power 102 HP
Ice Cutter Motor 2.2*2 KW
Power of Circulating Water Pump 1.1*2 KW
Power of Cooling Pump 4.0 KW
Cooling Tower Motor 2.2 KW
Machinery Unit Size(L*W*H) 6250mm*2310mm*2470mm
Input Water Temp 21degrees Celsius
Evaporating Temp 25degrees Celsius
Condensing Temp 40degrees Celsius
Supply power 380V/50Hz(60Hz)/3P; 220V(230V)/50Hz/1P; 220V/60Hz/3P(1P); 415V/50Hz/3P; 440V/60Hz/3P.
Advantages & Features:
Under standard operating conditions (ambient temperature of 21°C and water inlet temperature of 10°C), the machine delivers a daily ice output of up to 20 tons, ensuring an ample supply of ice even during peak demand periods.
Utilizing an industrial-grade compressor and an optimized refrigeration system, the unit maintains stable and efficient production performance—even in high-temperature summer environments.
Professional-Grade Cube Ice Output: Produces pure, hard, and highly transparent cube ice. This type of ice melts relatively slowly, effectively preserving beverage flavors and maintaining optimal temperatures for food preservation, making it suitable for a variety of applications including direct consumption, beverage mixing, and refrigerated food displays.
High-Efficiency, Energy-Saving Design: Employs an advanced refrigeration system and automated control technology to optimize energy utilization. Compared to traditional equipment, it significantly reduces energy consumption per unit of ice produced, helping users control long-term operating costs.
Food-Grade Hygiene and Safety: Components that come into direct contact with water are typically constructed from stainless steel (e.g., SUS304), ensuring that the ice production process complies with strict hygiene standards. The resulting ice is clean, odorless, and meets the rigorous food safety requirements of commercial establishments.
Intelligent Automated Control: Equipped with an automated control system and a digital interface, it enables one-touch operation, real-time monitoring of operating status, and self-diagnostic capabilities for troubleshooting. This simplifies daily management and maintenance procedures, reducing the need for highly specialized operator expertise.
Robust and Durable Construction: The entire unit typically features a stainless steel frame and corrosion-resistant materials, allowing it to withstand the humid conditions often found in commercial kitchens or industrial environments, thereby ensuring the equipment's long-term durability.
Application:
Large-scale Hotels & Resorts: Ensuring a year-round supply of ice for room service, restaurants, bars, and banquet events.
Central Kitchens & Food Processing Plants: Used for ingredient pre-processing, temperature control during processing, and the preservation of finished products.
Restaurant Chains & Supermarkets:Meeting the continuous demand for ice required for in-store beverage preparation, fresh food displays, and seafood preservation.
Major Events & Competitions:Providing large-volume, on-demand ice supplies for sports stadiums, music festivals, exhibitions, and similar venues.
Fisheries & Cold Chain Logistics:Used for the immediate preservation of seafood post-catch and for maintaining low temperatures during transportation.
Services
Service before sale
1.One-on-one exclusive customer service staff, 24 hours online.
2.Inquiry, email, message will be replied at first time.
3.Supply professional technical parameters, video picture sharing, project design.
Service on sale
1.Ensure customer payment security.
2.Ensure the customer's price is stable and reasonable.
3.Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service after sale
1.Arrange high-efficiency delivery and safe transport.
2.Supply installation training, direction for use, maintenance instructions, technical support, all necessary documents you need and oversea service.
FAQ
1.Can I customize the machine?
Yes. You can choose output, material, accessories brand, etc.
2.Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
3.How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
4.How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5.Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.
6.How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
