2-Ton Air-Cooled Tube Ice Machine: An Industrial-Grade, High-Efficiency Ice-Making Solution
Designed to meet the steady demand for a continuous, high-volume supply of high-quality ice across commercial and industrial sectors, the 2-ton air-cooled tube ice machine stands as the preferred equipment choice for industries such as seafood processing, meat handling, supermarket cold chains, hospitality, and chemical cooling. Specifically engineered to produce a daily output of 2 tons (approximately 2,000 kg) of tube ice, this unit features an efficient air-cooling heat dissipation system that eliminates the need for an external water supply, thereby significantly reducing both installation complexity and operational costs.
1. High hardness and high clarity: Melts more slowly than ordinary ice; ideal for the food service industry, bars, and cocktails.
2. Hygienic and edible: Distinct from industrial flake ice.
3. High efficiency and energy savings: Low long-term operating costs.
4. High level of automation: Saves on labor.
5. Scalable production capacity: Ranges from small-scale (1 ton) to large-scale (30 tons).

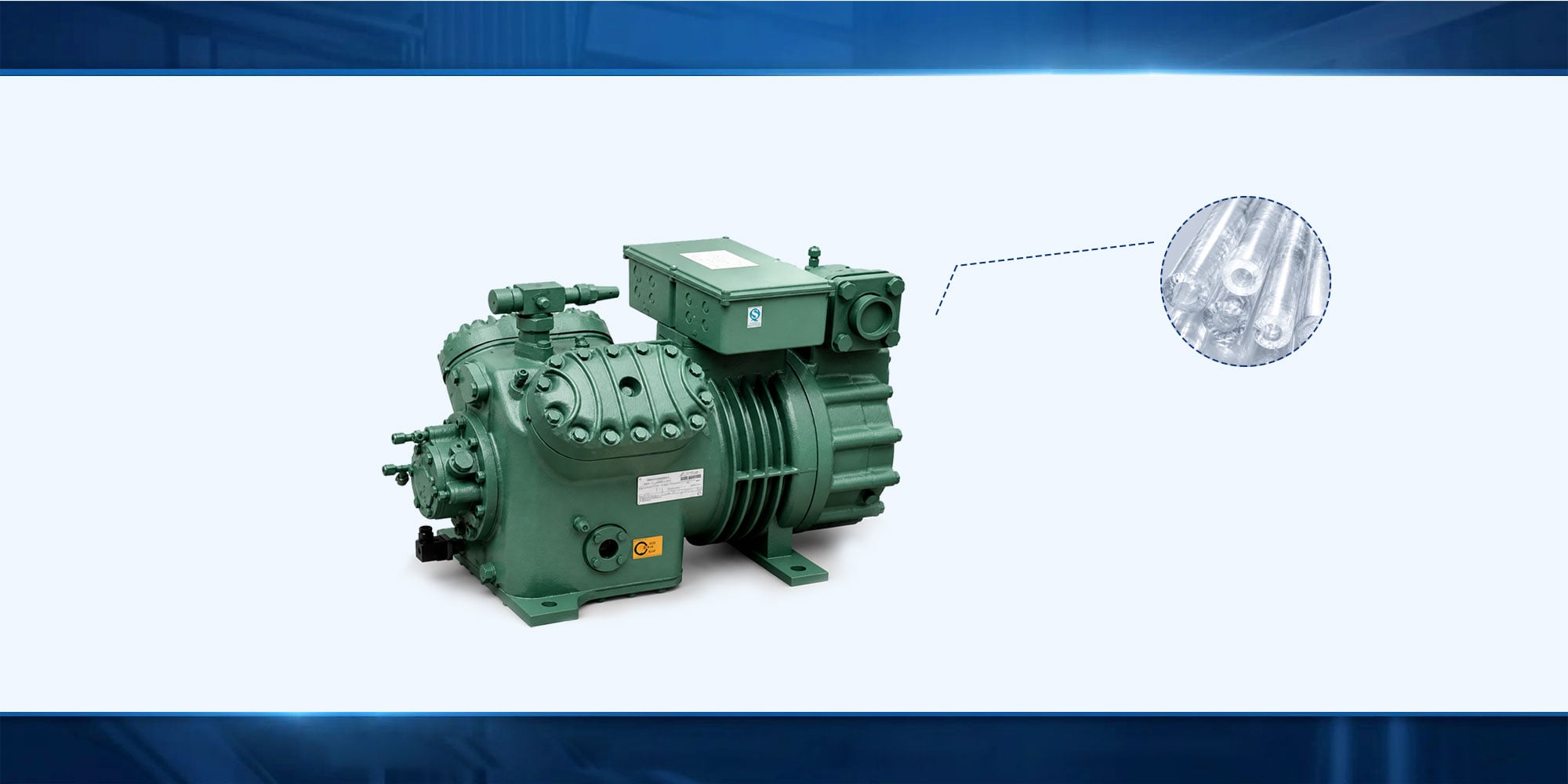

| Brand-name Compressors |
 |
| The equipment is equipped with compressors from renowned international brands such as Bitzer and Refcomp, delivering robust power and powerful cooling performance, ensuring stable and durable operation of the entire unit. |
 |

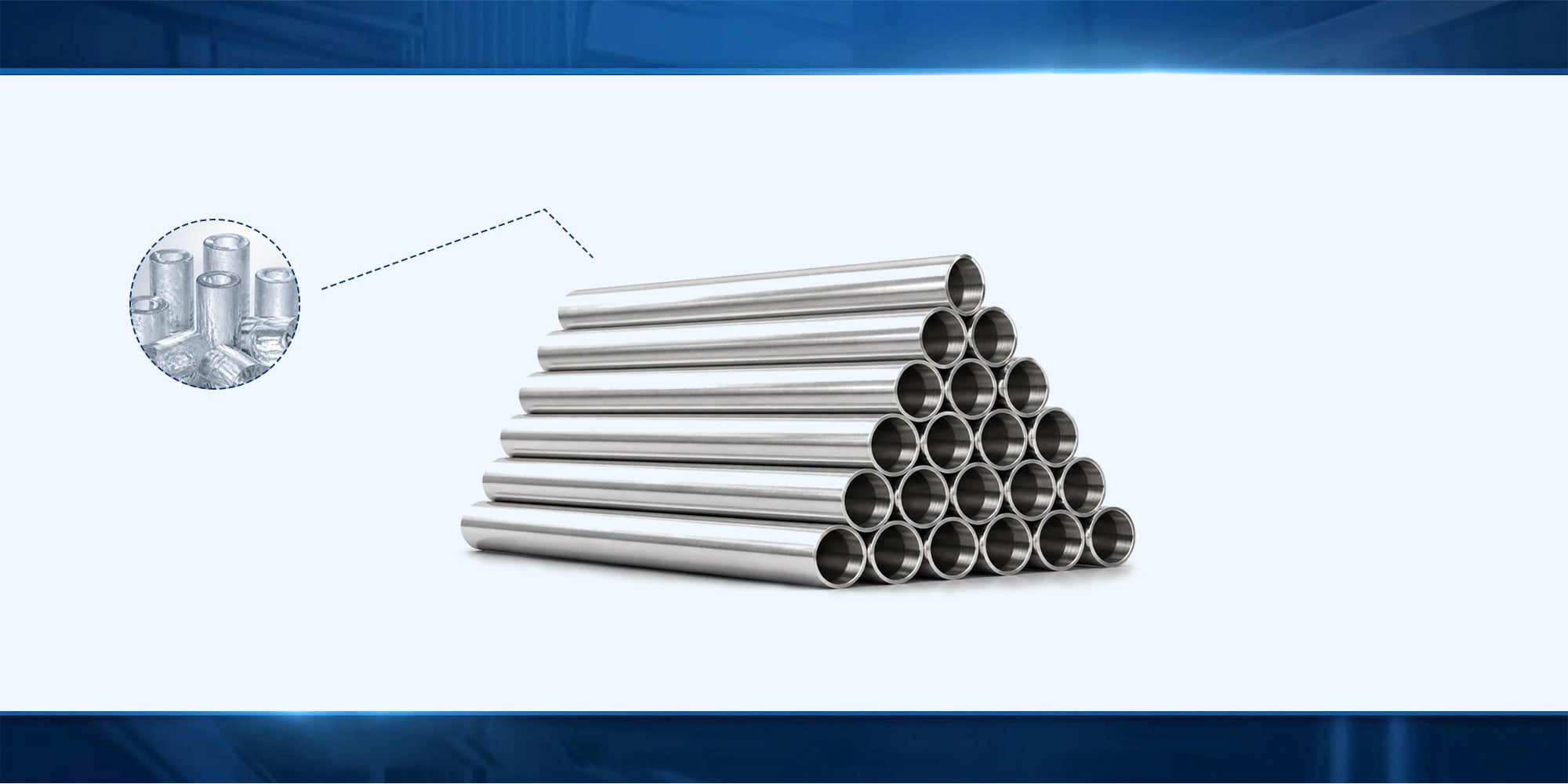

| Precision-Crafted Piping |
|
| Made from food-grade 304 stainless steel and treated with a professional annealing process, the piping offers excellent toughness, deformation resistance, and corrosion resistance, ensuring a longer service life. |
 |

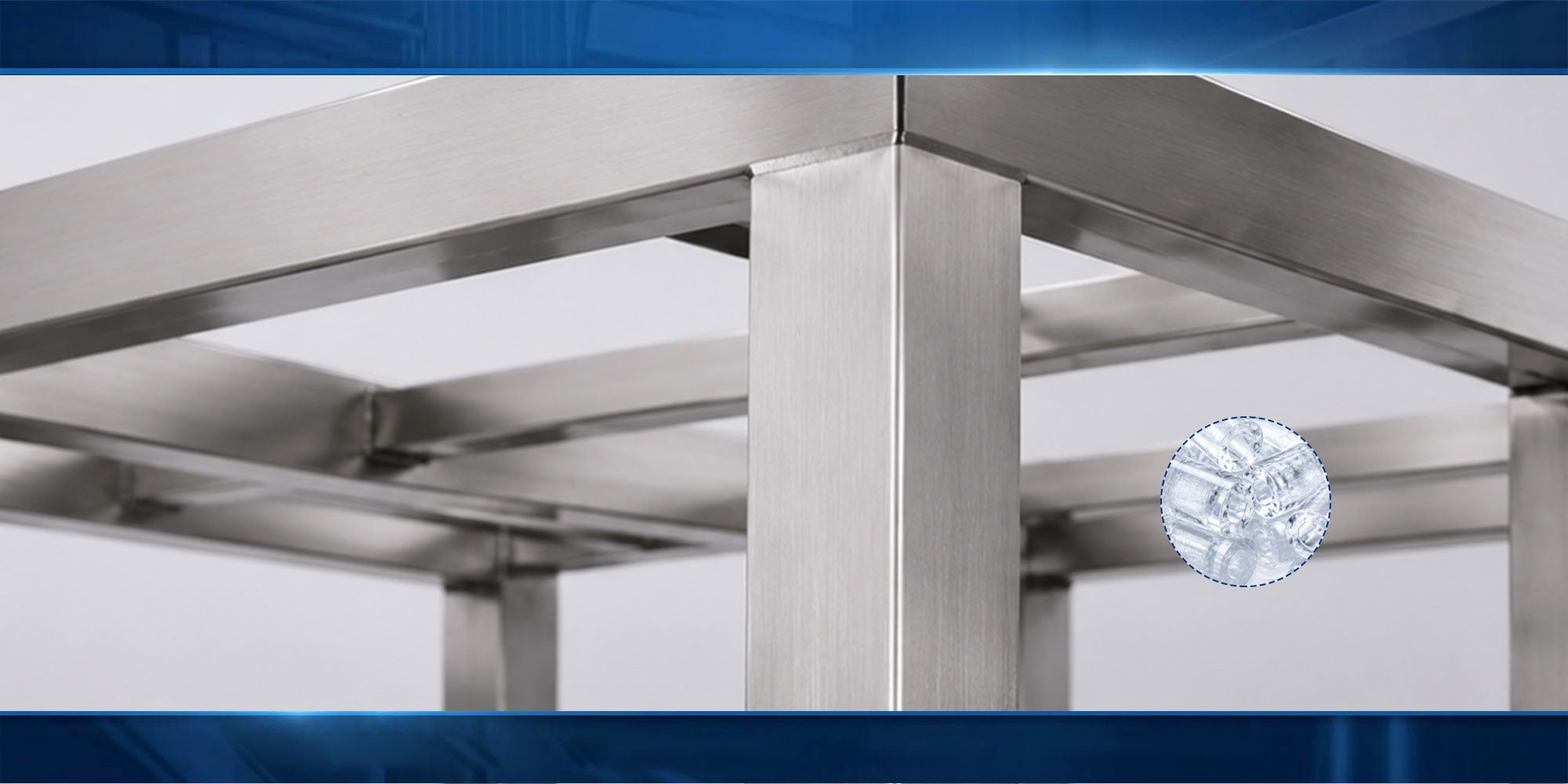

| Sturdy Frame |
|
| The machine's framework is constructed from food-grade materials and features a robust, stable load-bearing structure; it is resistant to deformation and capable of continuous, full-load operation over the long term. |
 |

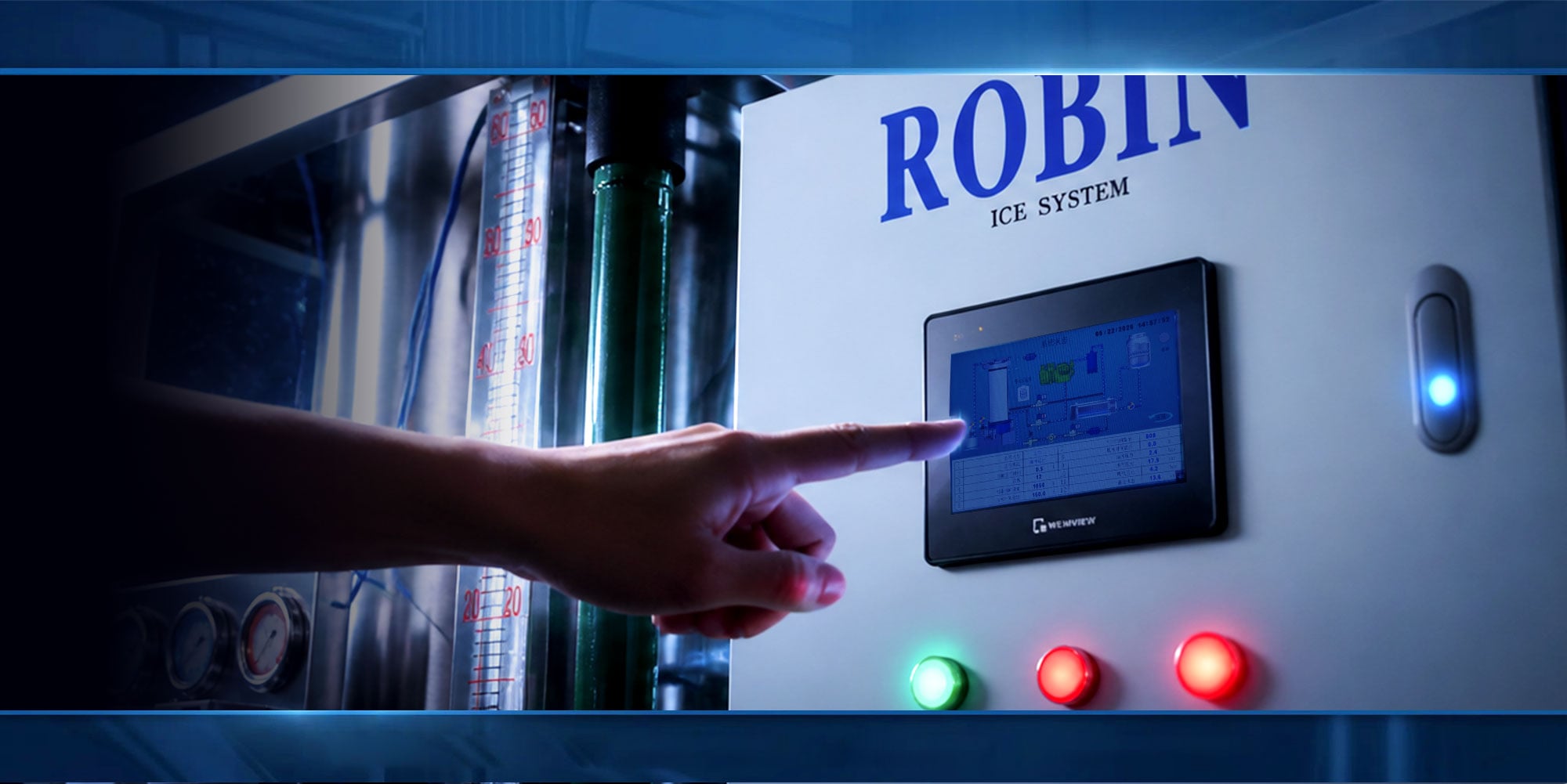

| Control Panel |
|
| Equipped with an intelligent PLC control system and a high-definition touchscreen, it offers intuitive and simple operation; it supports automatic water refilling, ice making, and ice harvesting processes, as well as programmable start/stop scheduling, ensuring a high level of automation. |
 |
| Tubular Ice Of Superior Quality |
|
| Crystal clear, high-quality tubular ice melts slowly and is widely used in various industries |
 |
| Application Scenarios |
|
| Widely used in fields such as food preservation, beverage cooling, and industrial cooling |
 |
| Customer Visit |
|
| On-site visit to production lines, customized complete set solutions |
 |
|

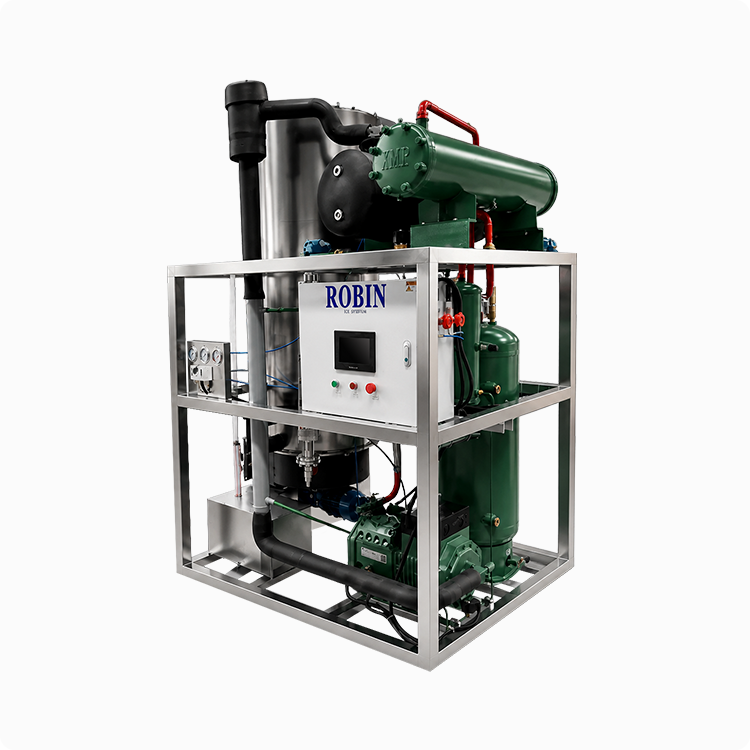

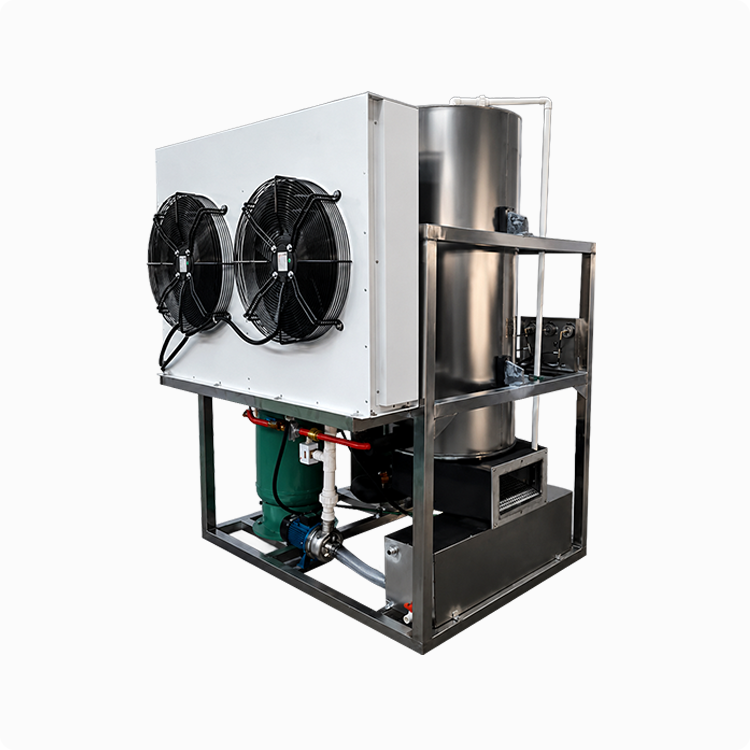

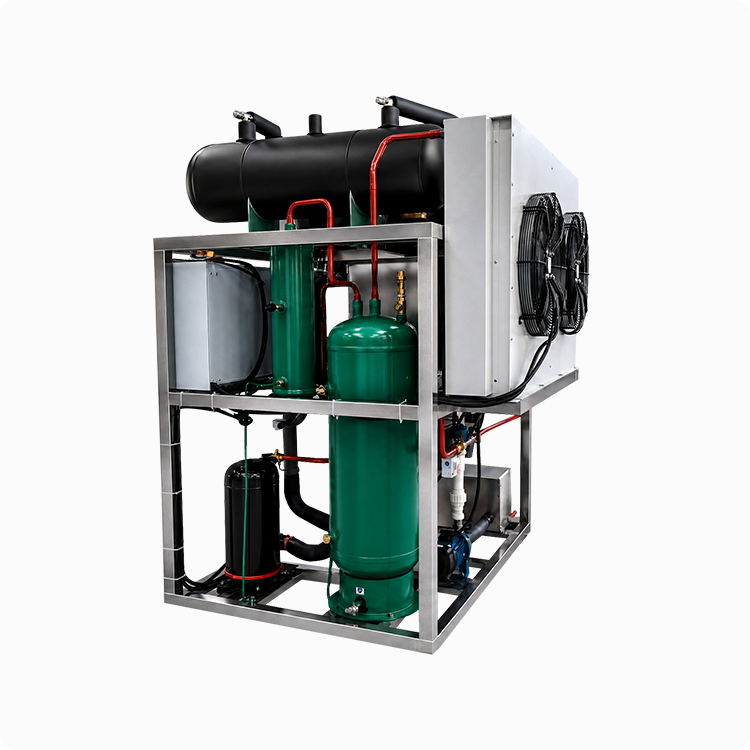

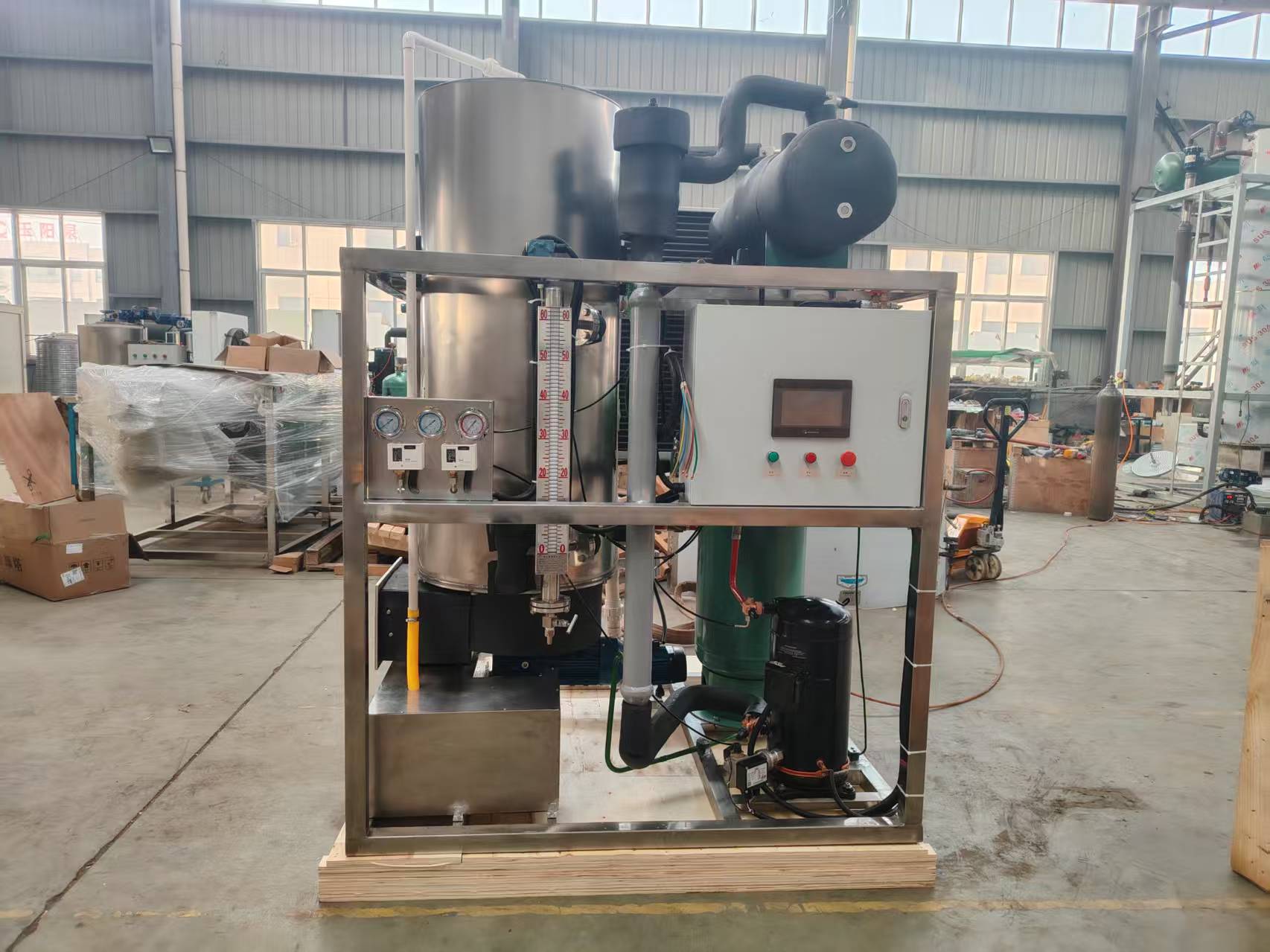

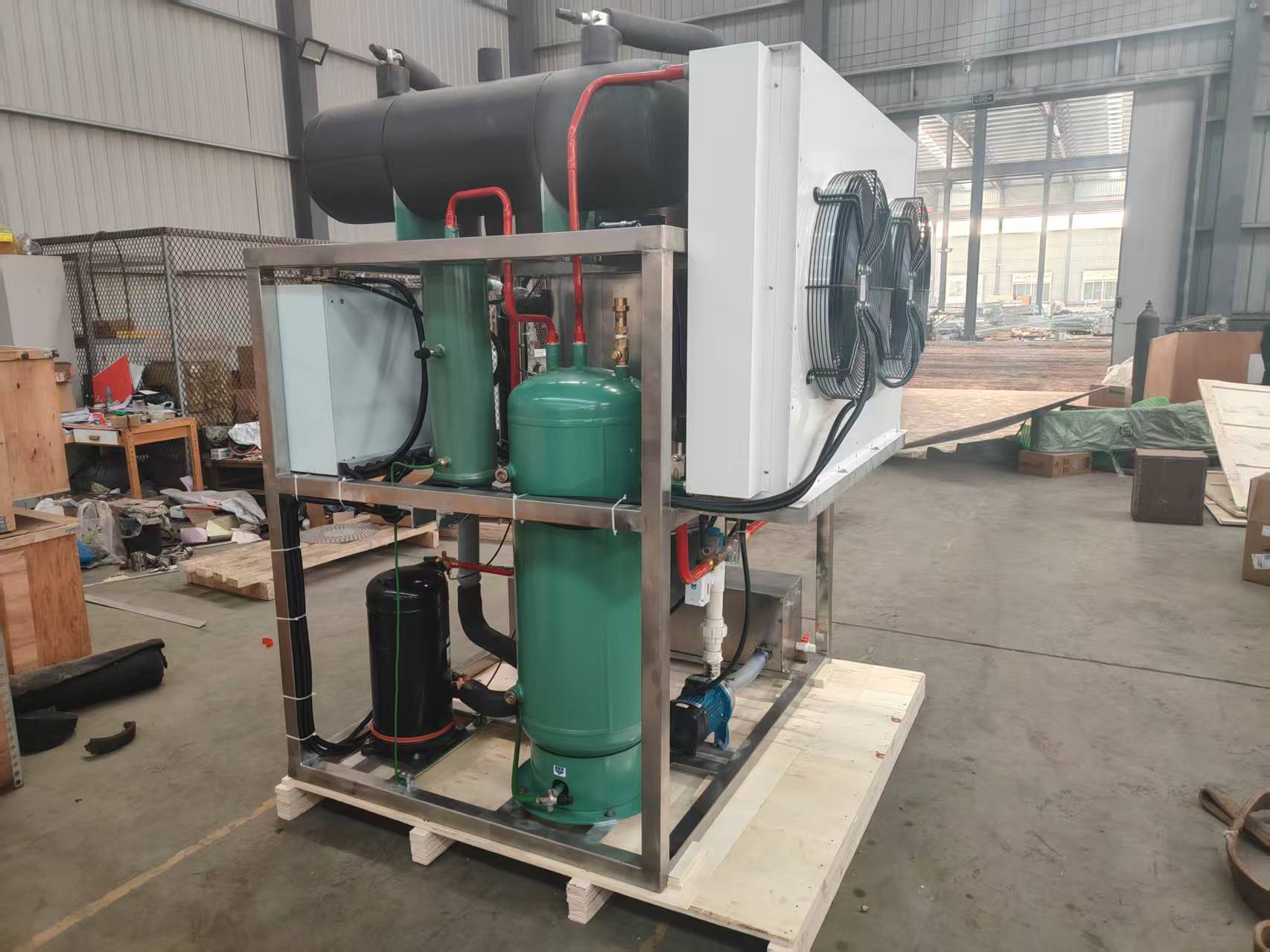

Actual Product Photos
Tube Ice Machine Parameters
Items/Model |
RBT-1T(1ton/day) |
RBT-2T (2 tons/day) |
RBT-3T (3T/day) |
RBT-5T (5 tons/day) |
RBT-10T (10 tons/day) |
Compressor |
Copeland/Refcomp |
Copeland/Refcomp |
Refcomp/Bitzer |
Refcomp/Bitzer |
Refcomp/Bitzer |
Cooling method |
Water cooling / Air cooling |
Water cooling / Air cooling |
Water cooling / Air cooling |
Water cooling / Air cooling |
Water cooling |
Compressor power |
5 |
10 |
15 |
25 |
50 |
Ice Cutter Power |
0.75KW |
0.75KW |
0.75KW |
0.75KW |
0.75KW |
Circulating water pump power |
0.75KW |
1.1KW |
1.1KW |
1.5KW |
1.5KW |
Cooling Tower Water Pump |
1.1KW |
1.5KW |
1.5KW |
3KW |
4KW |
Cooling Tower Motor |
0.18KW |
0.37KW |
0.37KW |
0.55KW |
1.5KW |
Main Machine Dimensions |
1400*1100*1950 |
1500*1200*2130 |
1700*1300*2260 |
1900*1400*2730 |
2200*1600*3040 |
Water Tower Size |
1000*1000*1900 |
1200*1200*2200 |
1200*1200*2200 |
1670*1670*2290 |
2120*2120*2550 |
Main machine weight (kg) |
730 |
1000 |
1150 |
1700 |
2500 |
Water tower weight (kg) |
60 |
80 |
80 |
116 |
290 |
The tube ice produced by the Air-Cooled Tube Ice Machine is suitable for a diverse array of commercial and industrial sectors:
Food & Beverage Industry: Used for cooling and garnishing beverages and cold drinks; suitable for direct human consumption.
Fresh Food Preservation:Widely utilized for the display, transportation, and storage preservation of fresh foods—such as seafood, vegetables, and meat—effectively extending their shelf life.
Commercial Venues: Supplies ice for supermarkets, convenience stores, hotels, and restaurants.
Specialized Institutions: Facilities requiring a large, clean supply of ice, such as hospitals and port-side ice plants.
Cold Chain Logistics:Provides a secure low-temperature environment to safeguard fresh products during transit.
1.One-on-one exclusive customer service staff, 24 hours online.
2.Inquiry, email, message will be replied at first time.
3.Supply professional technical parameters, video picture sharing, project design.
Service on sale
1.Ensure customer payment security.
2.Ensure the customer's price is stable and reasonable.
3.Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service after sale
1.Arrange high-efficiency delivery and safe transport.
2.Supply installation training, direction for use, maintenance instructions, technical support, all necessary documents you need and oversea service.
1.Can I customize the machine?
Yes. You can choose output, material, accessories brand, etc.
2.Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
3.How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
4.How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5.Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.
6.How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
×
