10 ton tube ice machine-0

Tube ice machine System

Home >  Products >  Tube ice machine System

All Categories

Tube ice machine System
Flake Ice Machine System
Cube Ice Machine System
Block ice machine System
Slurry Ice Machine System
Cold Room System
Other Related Machinery

All Small Categories

10 Ton Tube Ice Machine
10 Ton Tube Ice Machine
10 Ton Tube Ice Machine
10 Ton Tube Ice Machine
10 Ton Tube Ice Machine
10 Ton Tube Ice Machine

10 Ton Tube Ice Machine

Get a Quote
  • Description

+86-18596077851
[email protected]
Inquiry
Descriptions
10-Ton Tube Ice Machine: Crafting Purity, Locking in Freshness
Tube ice consists of uniform, transparent, hollow cylindrical ice bodies. Compared to other forms of ice, it boasts the highest density, exceptional purity, excellent breathability, and a long storage life.
The 10-ton tube ice machine is specifically engineered to meet large-scale, high-quality industrial and commercial ice requirements, making it a reliable choice for sectors such as food processing, seafood preservation, and chemical cooling.
Brand-name Compressors
The equipment is equipped with compressors from renowned international brands such as Bitzer and Refcomp, delivering robust power and powerful cooling performance, ensuring stable and durable operation of the entire unit.
Precision-Crafted Piping
Made from food-grade 304 stainless steel and treated with a professional annealing process, the piping offers excellent toughness, deformation resistance, and corrosion resistance, ensuring a longer service life.
Sturdy Frame
The machine's framework is constructed from food-grade materials and features a robust, stable load-bearing structure; it is resistant to deformation and capable of continuous, full-load operation over the long term.
Control Panel
Equipped with an intelligent PLC control system and a high-definition touchscreen, it offers intuitive and simple operation; it supports automatic water refilling, ice making, and ice harvesting processes, as well as programmable start/stop scheduling, ensuring a high level of automation.
Tubular Ice Of Superior Quality
Crystal clear, high-quality tubular ice melts slowly and is widely used in various industries
Application Scenarios
Widely Used In Fields Such As Food Preservation,Beverage Cooling, And Industrial Cooling
Customer Visit
On-site visit to production lines, customized complete set solutions
Tube Ice Machine Parameters

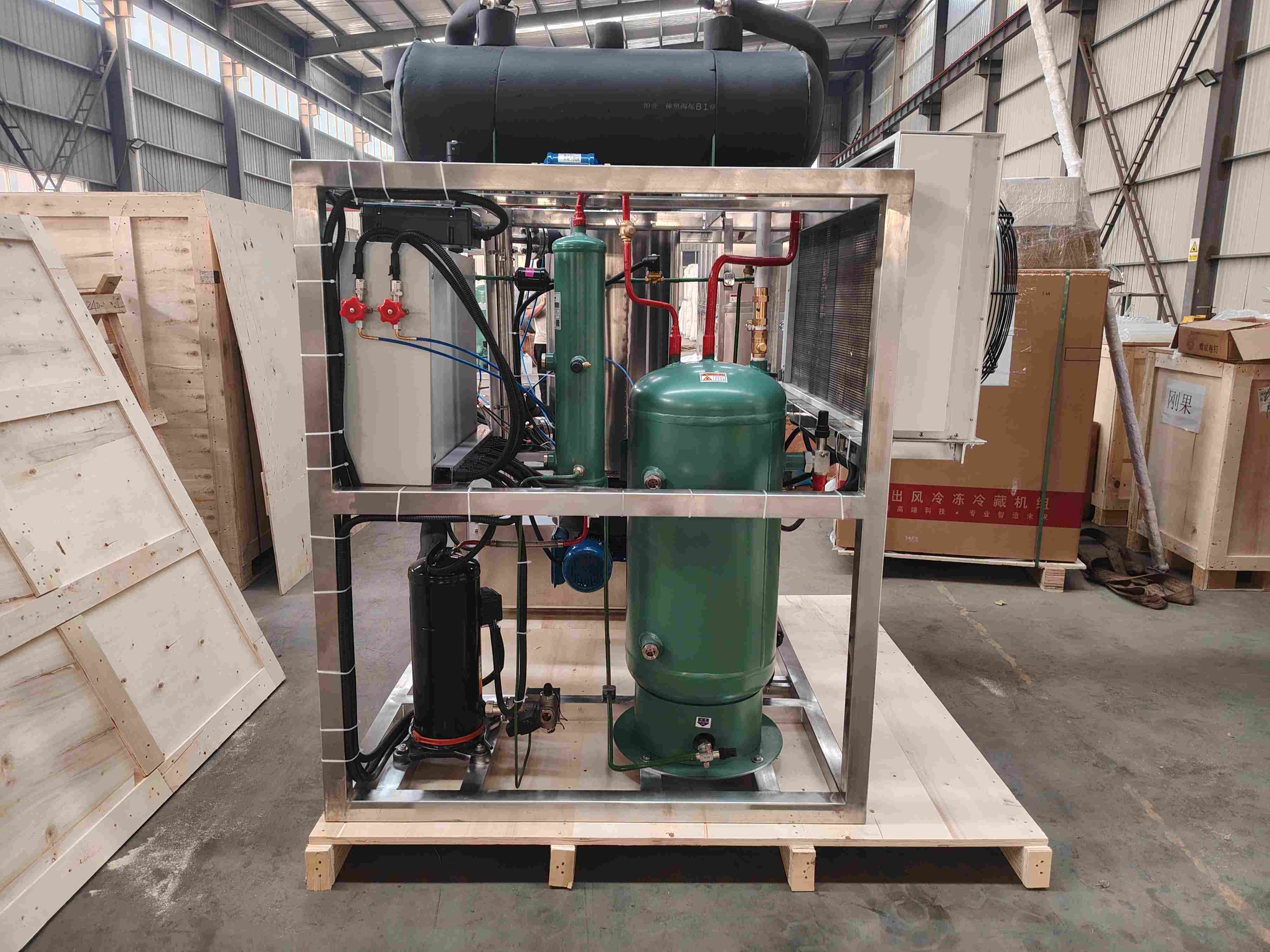

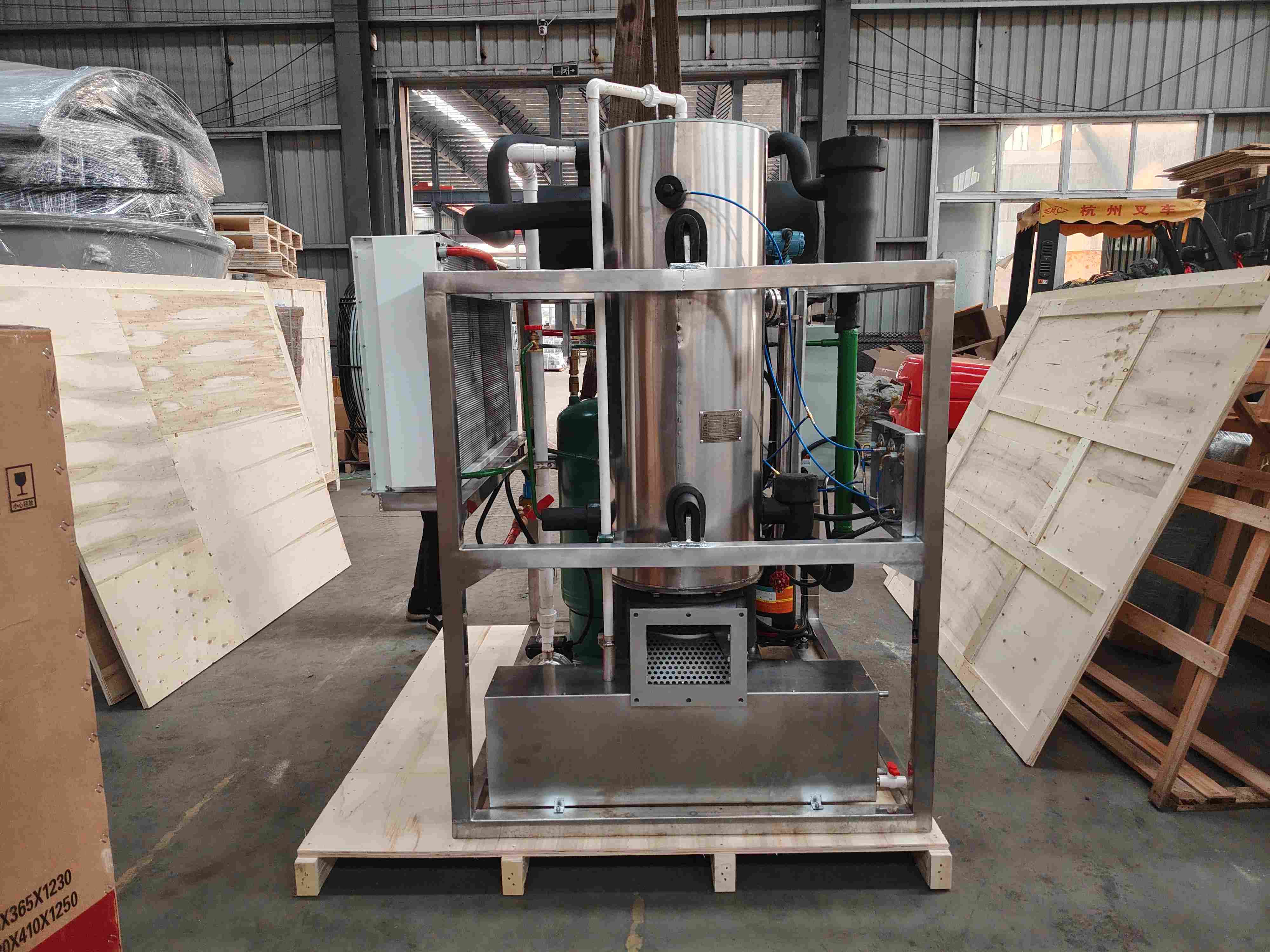

微信图片_20250522094822.jpg 微信图片_20250522094819.jpg

Items/Model

RBT-1T(1ton/day)

RBT-2T (2 tons/day)

RBT-3T (3T/day)

RBT-5T (5 tons/day)

RBT-10T (10 tons/day)

Compressor

Copeland/Refcomp

Copeland/Refcomp

Refcomp/Bitzer

Refcomp/Bitzer

Refcomp/Bitzer

Cooling method

Water cooling / Air cooling

Water cooling / Air cooling

Water cooling / Air cooling

Water cooling / Air cooling

Water cooling

Compressor power

5

10

15

25

50

Ice Cutter Power

0.75KW

0.75KW

0.75KW

0.75KW

0.75KW

Circulating water pump power

0.75KW

1.1KW

1.1KW

1.5KW

1.5KW

Cooling Tower Water Pump

1.1KW

1.5KW

1.5KW

3KW

4KW

Cooling Tower Motor

0.18KW

0.37KW

0.37KW

0.55KW

1.5KW

Main Machine Dimensions

1400*1100*1950

1500*1200*2130

1700*1300*2260

1900*1400*2730

2200*1600*3040

Water Tower Size

1000*1000*1900

1200*1200*2200

1200*1200*2200

1670*1670*2290

2120*2120*2550

Main machine weight (kg)

730

1000

1150

1700

2500

Water tower weight (kg)

60

80

80

116

290
Advantages and Features：
High Efficiency, Energy Savings, and Stable Operation.
Features a modular, compact design that occupies minimal floor space.
Ensures stable, continuous operation with zero energy waste. Its unique hot-fluorine ice-harvesting technology enables rapid ice release; a single harvesting cycle takes only approximately 150–180 seconds, significantly boosting overall ice-making efficiency.
Equipped with high-performance compressors from leading brands (such as Bitzer and Refcomp) and plate evaporators, delivering outstanding cooling results with low energy consumption.
Flexible Installation and Easy Maintenance
Application:
The tube ice produced by the Air-Cooled Tube Ice Machine is suitable for a diverse array of commercial and industrial sectors:
Food & Beverage Industry:** Used for cooling and garnishing beverages and cold drinks; suitable for direct human consumption.
Fresh Food Preservation:** Widely utilized for the display, transportation, and storage preservation of fresh foods—such as seafood, vegetables, and meat—effectively extending their shelf life.
Commercial Venues: Supplies ice for supermarkets, convenience stores, hotels, and restaurants.
Specialized Institutions: Facilities requiring a large, clean supply of ice, such as hospitals and port-side ice plants.
Cold Chain Logistics:Provides a secure low-temperature environment to safeguard fresh products during transit.
Services
Service before sale
1.One-on-one exclusive customer service staff, 24 hours online.
2.Inquiry, email, message will be replied at first time.
3.Supply professional technical parameters, video picture sharing, project design.
Service on sale
1.Ensure customer payment security.
2.Ensure the customer's price is stable and reasonable.
3.Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service after sale
1.Arrange high-efficiency delivery and safe transport.
2.Supply installation training, direction for use, maintenance instructions, technical support, all necessary documents you need and oversea service.
FAQ
1.Can I customize the machine?
Yes. You can choose output, material, accessories brand, etc.
2.Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
3.How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
4.How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5.Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.
6.How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
