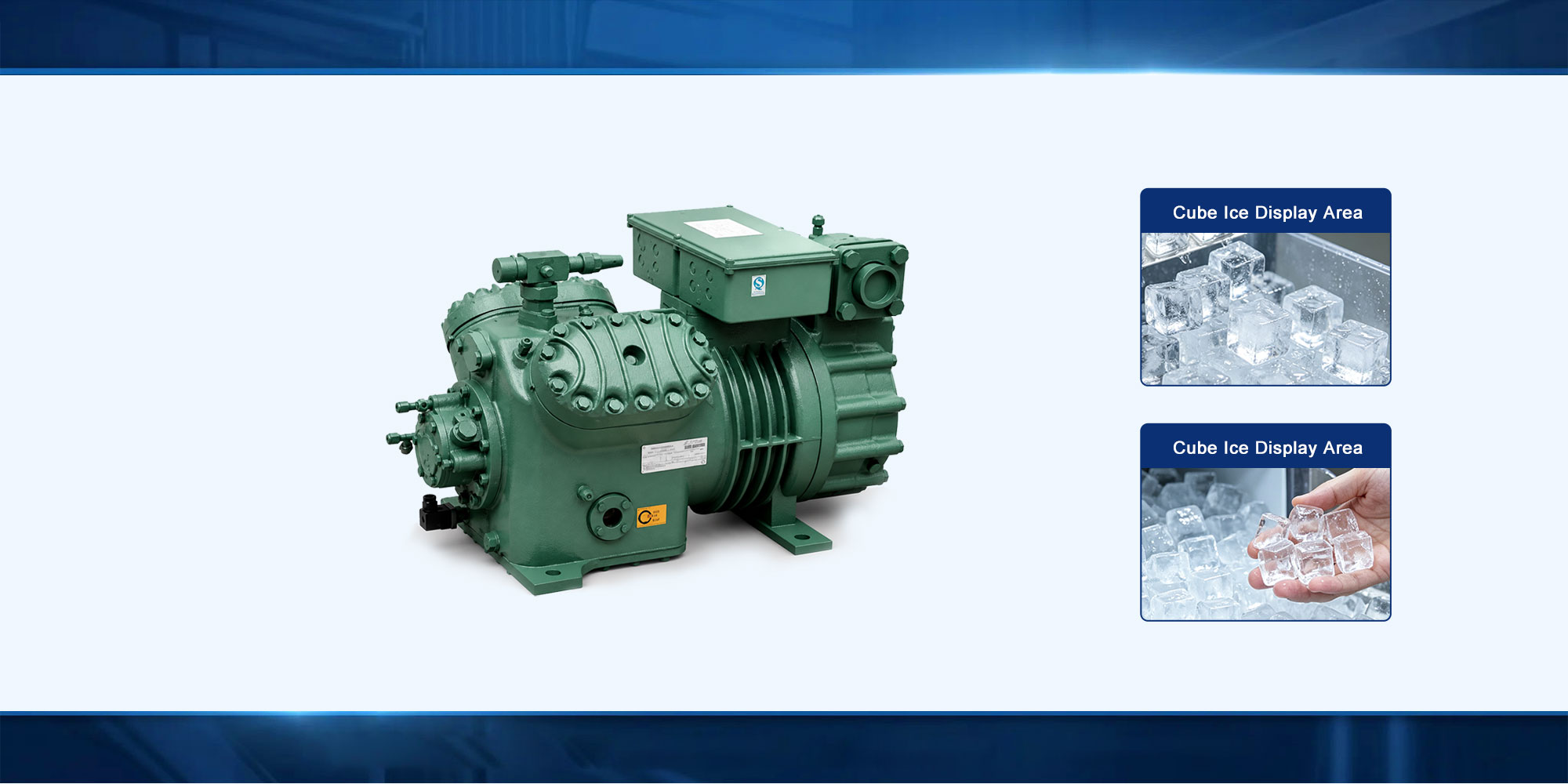

| Brand-name Compressors | |
 | |
| The equipment is equipped with compressors from renowned international brands such as Bitzer and Refcomp, delivering robust power and powerful cooling performance, ensuring stable and durable operation of the entire unit. | |
 | |

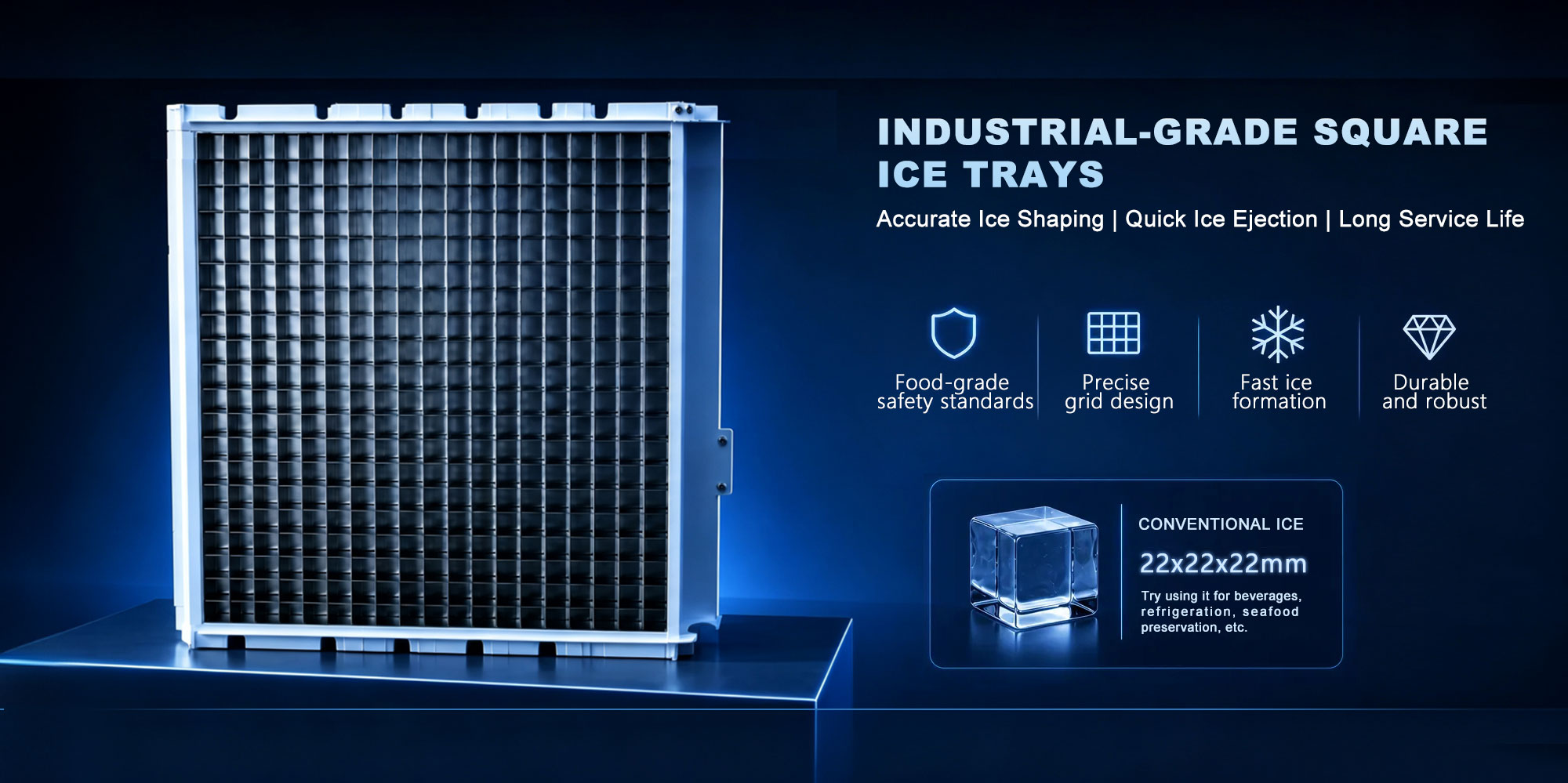

| Stainless steel evaporator | |
| |
| The evaporator has the characteristics ofanti-corrosin, safety and sanitation, largecontact area, and accelerated heat andcold exchange with the refrigerant. | |
 | |

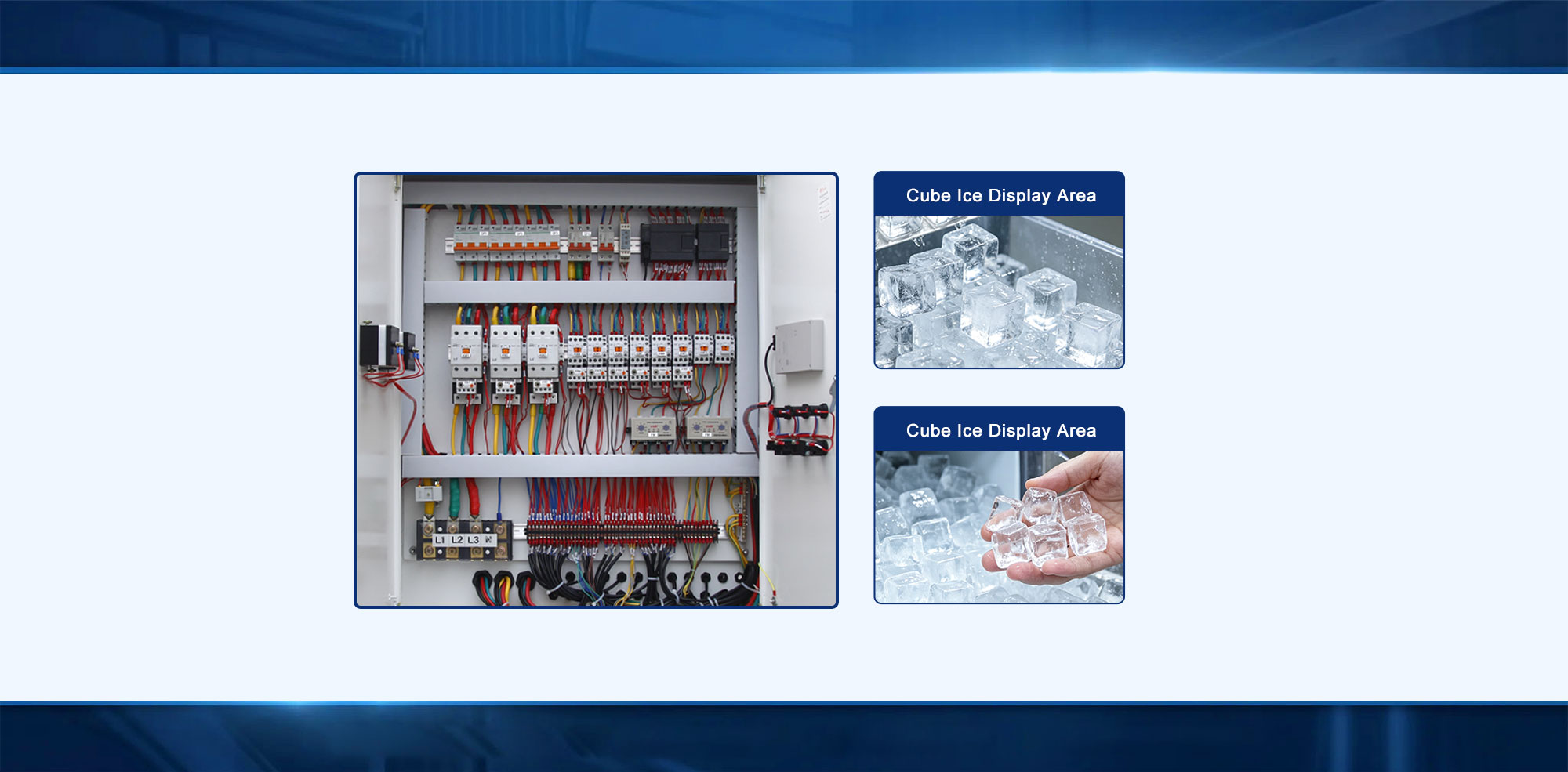

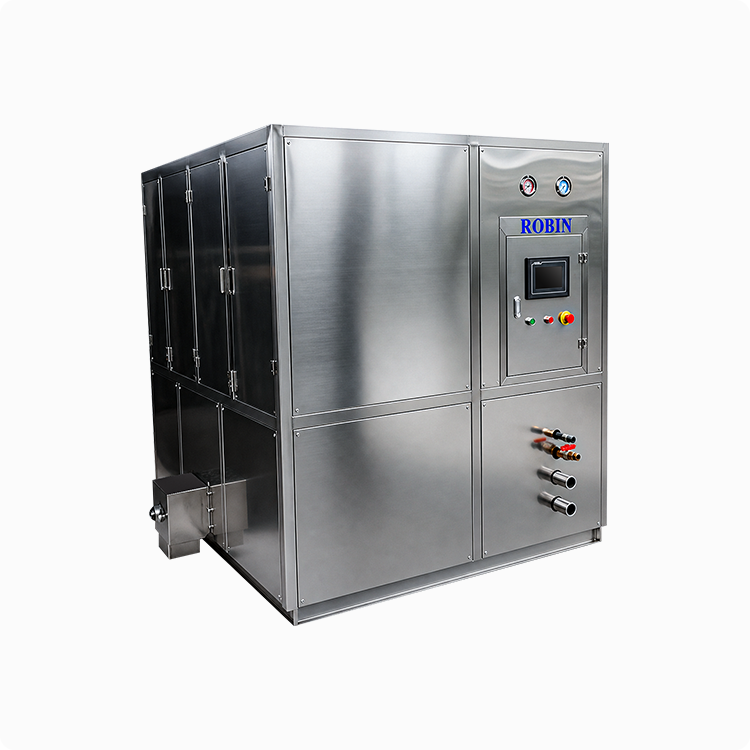

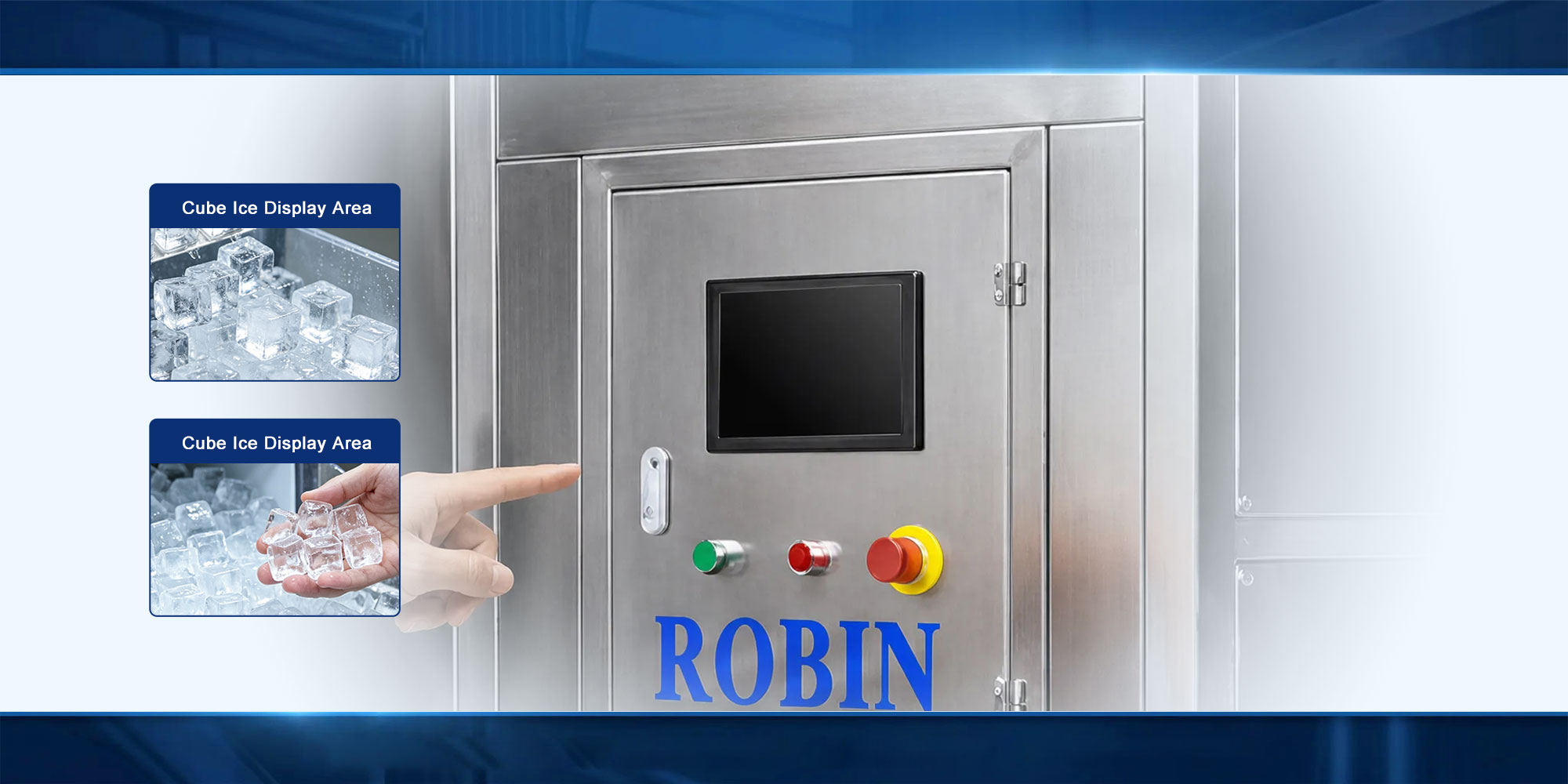

| Control Panel | |
| |
| Equipped with a touchscreen display, supporting Chinese, English, and Spanish language switching, and can also be customized to input programs in other languages according to customer needs; featuring multiple protection mechanisms including compressor, phase sequence, high and low pressure, overload, and water shortage protection, automatically protecting the equipment in case of failure and extending the service life of the entire machine. | |
 | |
| Intelligent Control | |
| |
| Utilizing Siemens PLC intelligent control, the entire process of water replenishment, ice making, and ice removal is fully automated, making it easy and user-friendly to operate. | |
 | |
| High-Quality Squar | |
| |
| Properly shaped & crystal-clear cube ice with slow melting rate, flexibly applicable to a wide range of industries and scenarios. | |
 | |
| Application Scenarios | |
| |
| Widely Used In Fields Such As Food Preservation,Beverage Cooling, And Industrial Cooling | |
 | |
| Customer Visit | |
| |
| On-site visit to production lines, customized complete set solutions | |
 | |
 |
 |
| Cube Ice Machine Paremeters: | |||||
| Model Parameters | RBC-2T | RBC-3T | RBC-5T | RBC-10T | |
| Daily output (T/24 h) | 2 | 3 | 5 | 10 | |
| Compressor Power | 7.88 kw | 10.58 kw | 21 kw | 42 kw | |
| Fan Power of Cooling Tower | 0.37 kw | 0.56 kw | 0.75 kw | 1.5 kw | |
| Cooling Pump Power | 1.5 kw | 1.5 kw | 2.2 kw | 4 kw | |
| Unit Size | L (mm) | 1630 | 1980 | 2890 | 5730 |
| W (mm) | 1600 | 1630 | 1780 | 1780 | |
| H (mm) | 1706 | 1860 | 1860 | 2130 | |
| Unit N.W. (kg) | 1000 | 1200 | 1600 | 3000 | |
