Home > Products > Block ice machine System > Brine Block Ice Machine

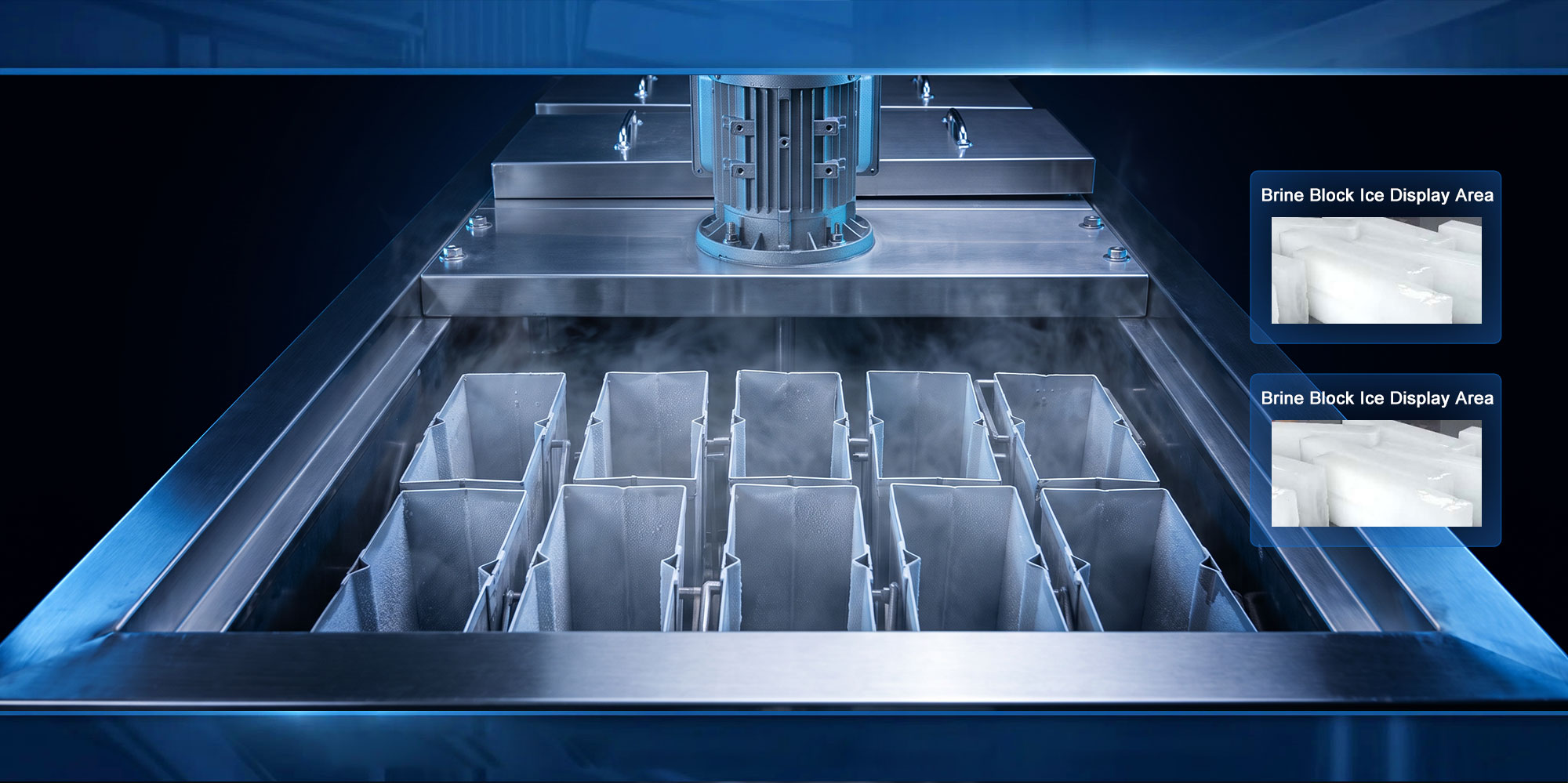

| Refrigeration Tank | |
 | |
| The ultra-quiet cold circulation system features directional heat exchange for faster and more efficient cooling, shortening ice-making time. The tank's temperature-locking design resists environmental interference, ensuring stable ice quality while reducing brine evaporation and contamination, significantly lowering maintenance and consumable costs. | |
 | |

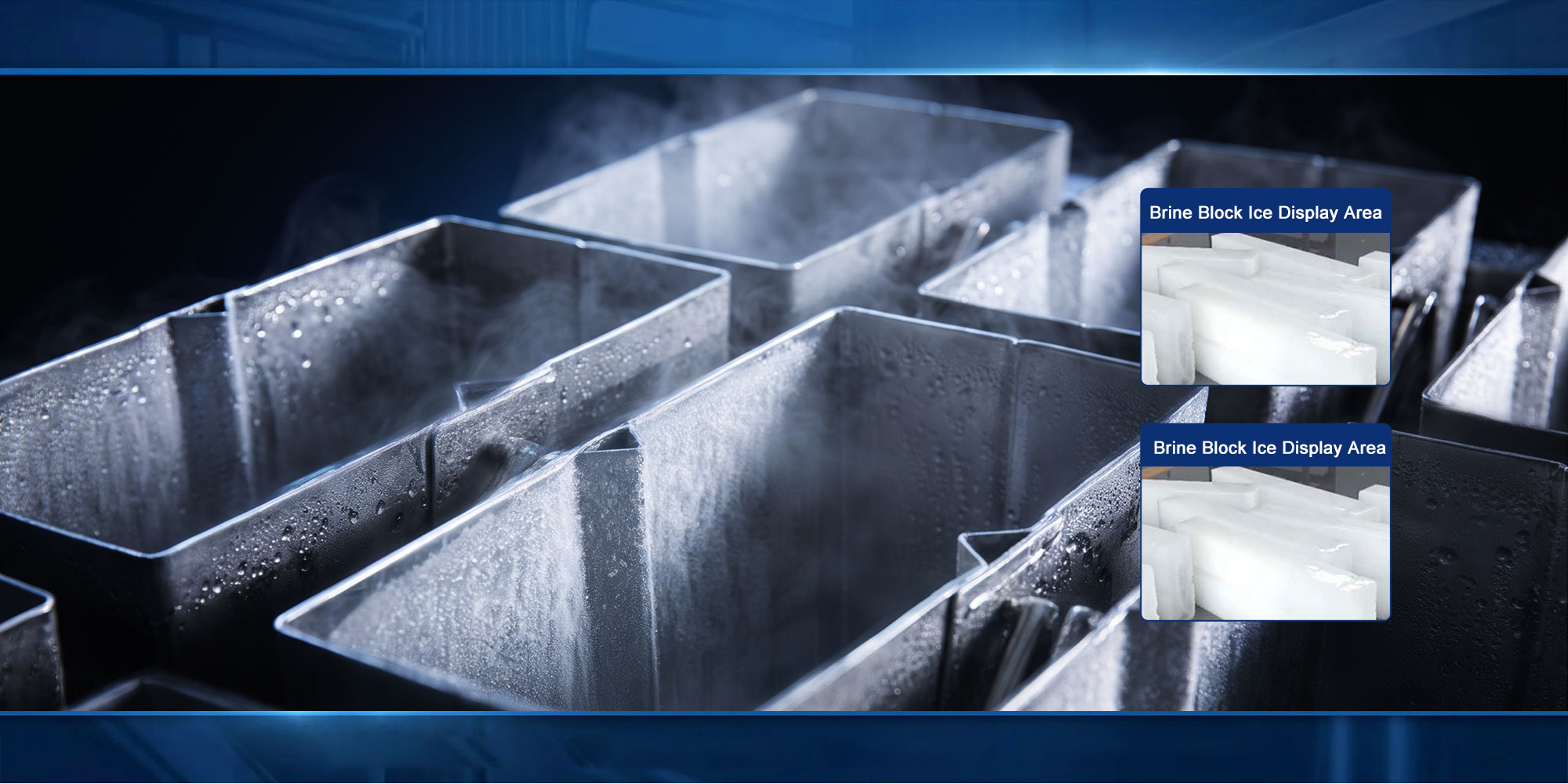

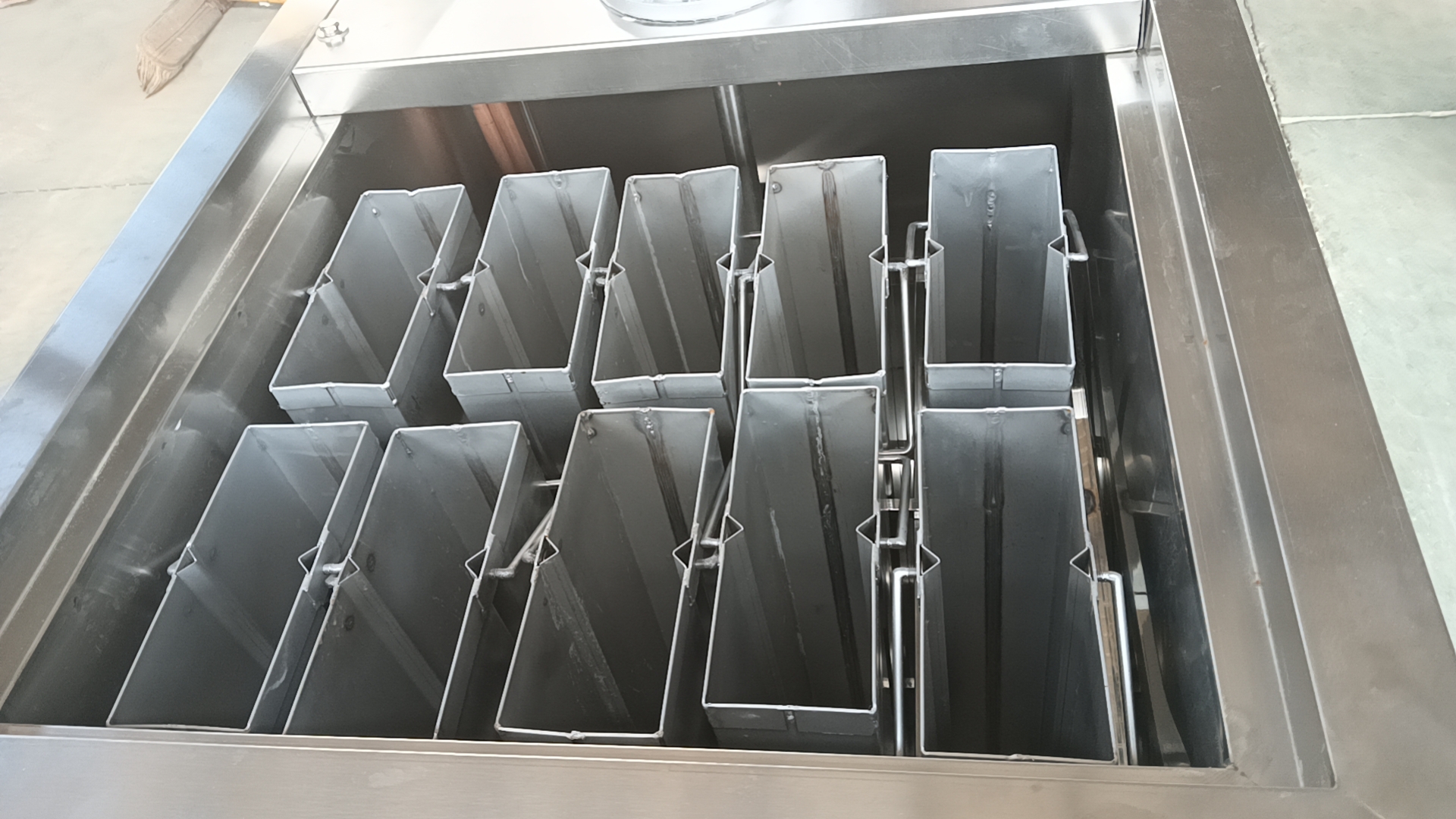

| Mold | |
| |
Made of thickened plate material welded in one piece, it is resistant to deformation and corrosion. Ice sizes can be customized to meet specific needs. Durable and robust for long-term, repeated use, it meets the requirements of different customers. | |
 | |

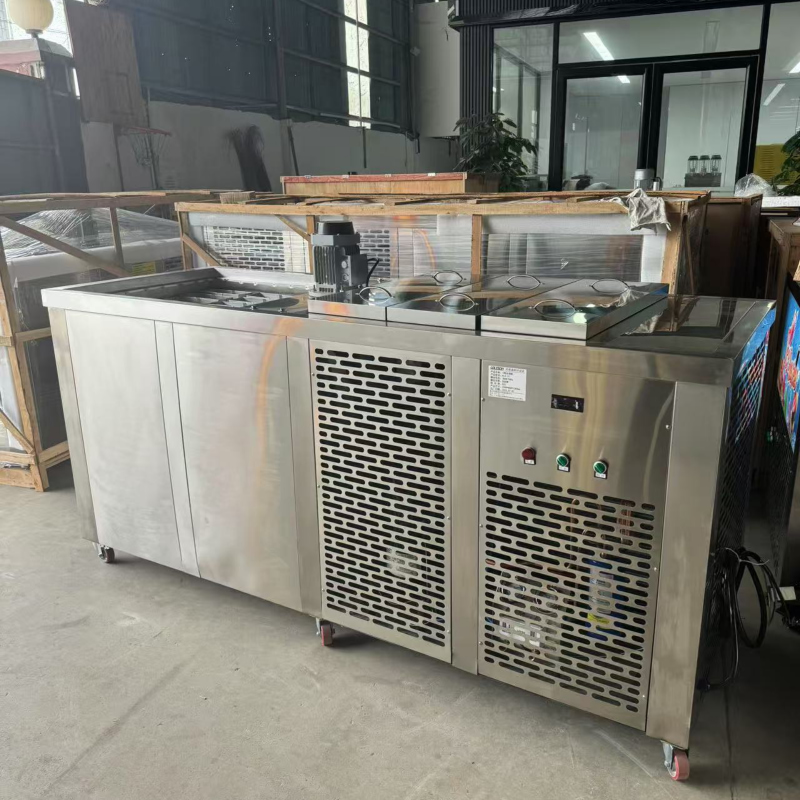

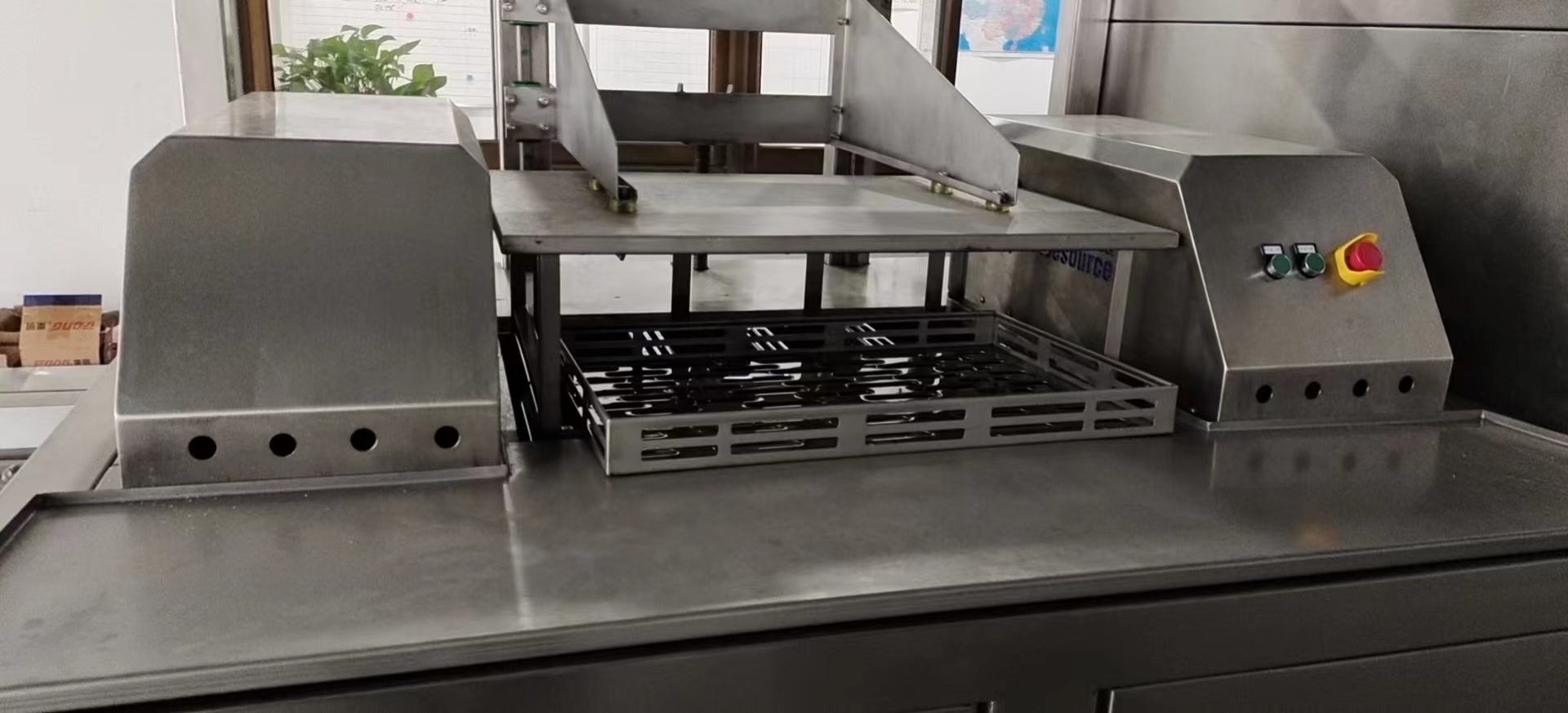

| Integrated Design | |
| |
| The integrated design allows for factory pre-installation and debugging, resulting in neat and space-saving wiring and conduit systems. Installation is simple and easy, and the overall stability of the machine is enhanced. | |
 | |

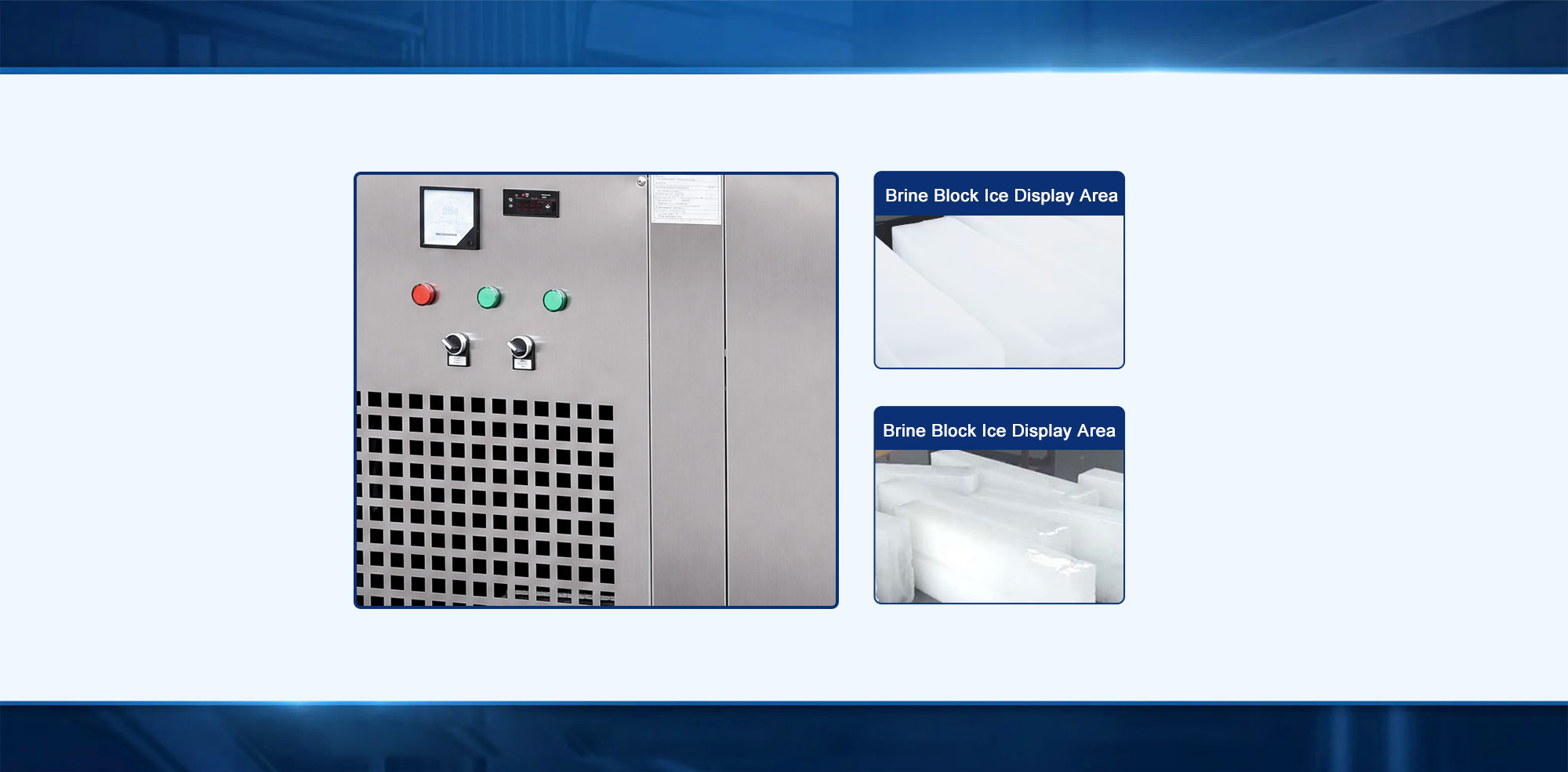

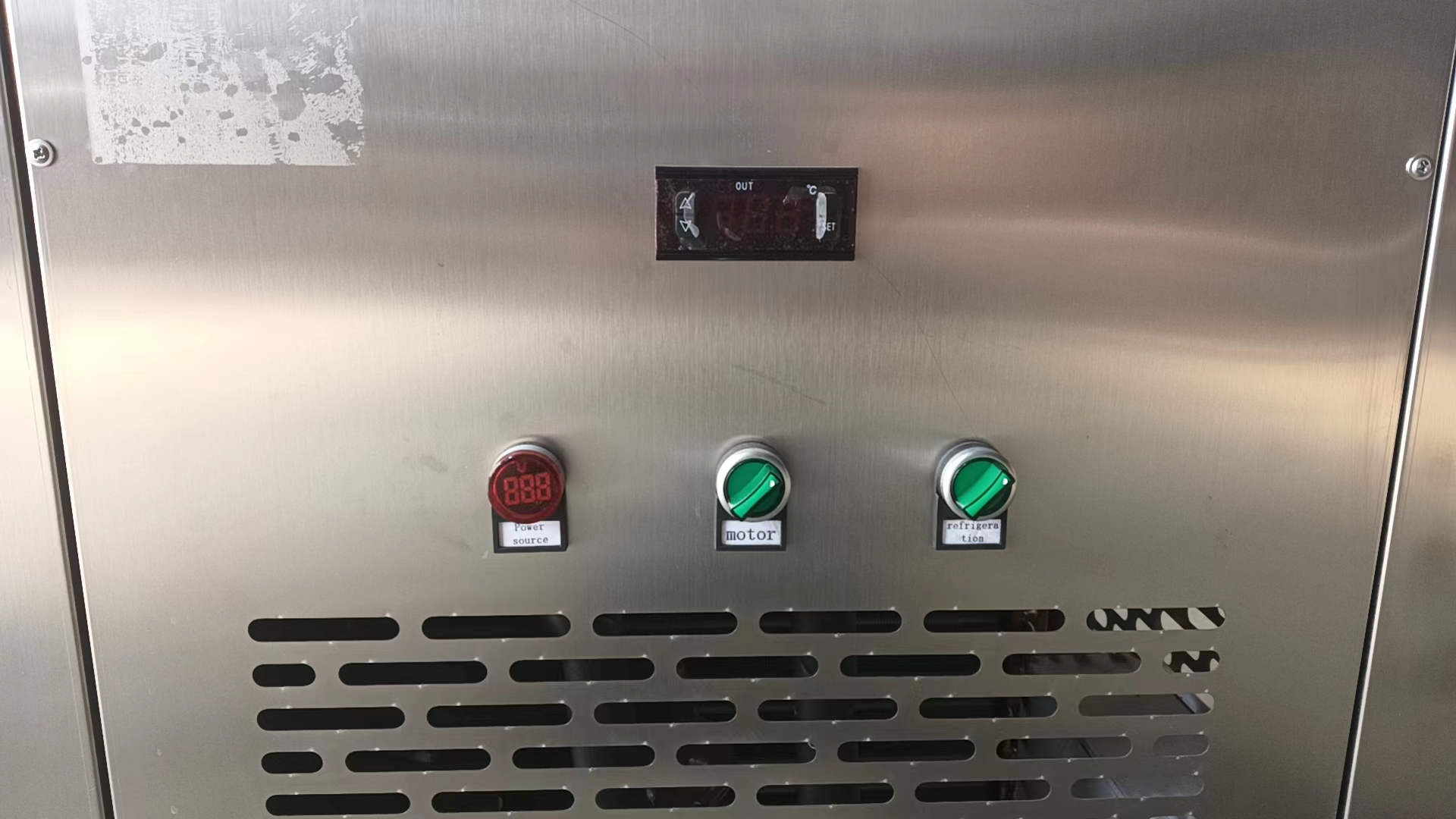

| Intelligent Control | |
| |
The PLC intelligent programmable control system features fully automated management and control, multiple safety protections, and reliable and stable operation and maintenance. | |
 | |

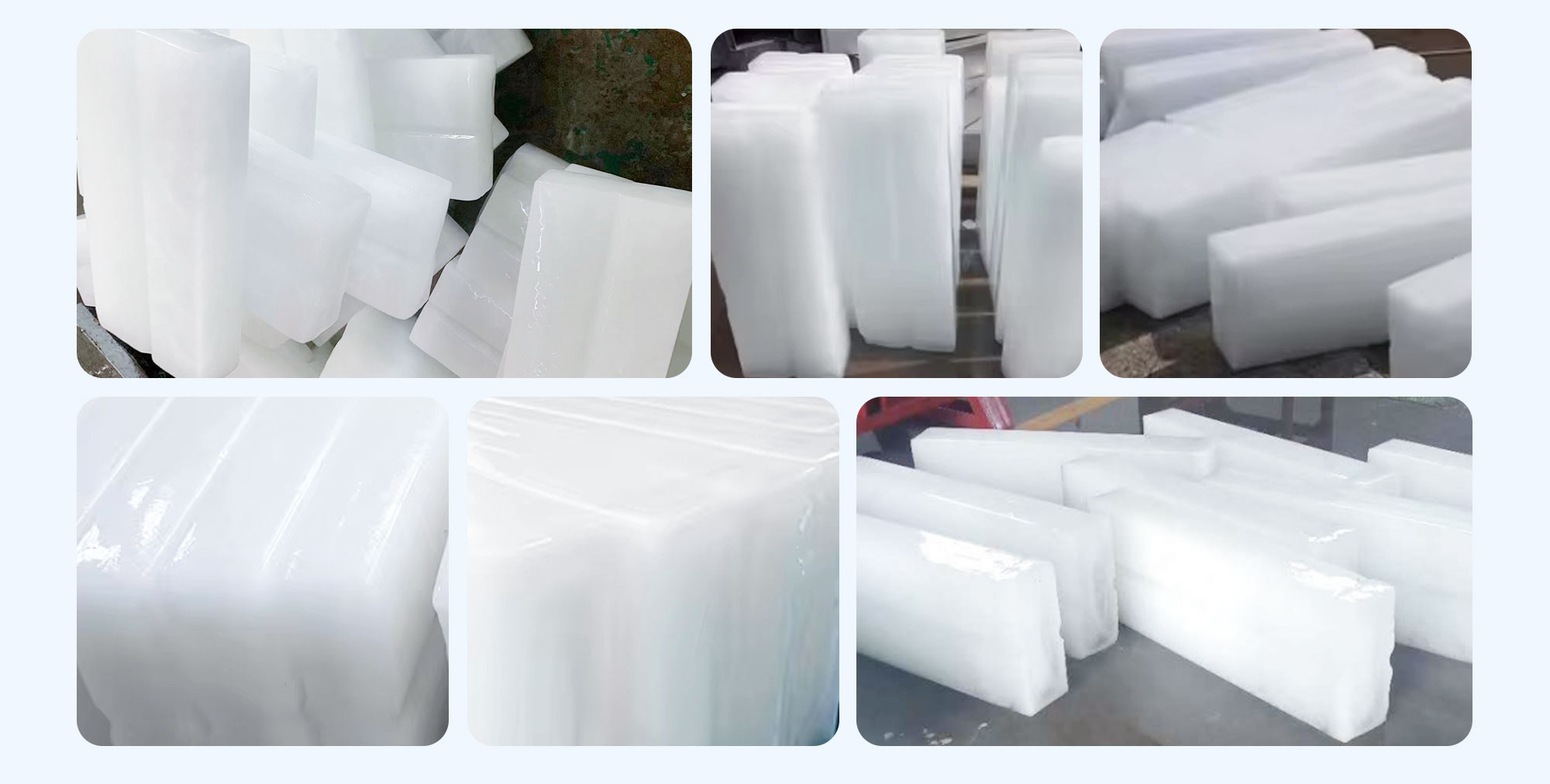

| High-Quality Ice Cubes | |
| |
| The block is regular and thick, crystal clear throughout, and has a firm texture that is not easily broken. It melts slowly and lasts a long time | |
 | |
| Application Scenarios | |
| |
| Widely Used In Fields Such As Food Preservation,Beverage Cooling, And Industrial Cooling | |
 | |
| Customer Visit | |
| |
| On-site visit to production lines, customized complete set solutions | |
 | |
 |
 |
 |
 |
 |
| Model | GL-2T | GL-2T | GL-2T | GL-2T | GL-2T |
| Capacity (ton/24hours) | 2 | 2 | 2 | 2 | 2 |
| Cooling Way | Air | Air | Air | Air | Air |
| Compressor Brand | Copeland | Copeland | Copeland | Copeland | Copeland |
| Voltage | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz |
| Power | 11kw | 11kw | 11kw | 11kw | 11kw |
| Electricity consumption | 70 | 70 | 70 | 70 | 70 |
| (per tons) | |||||
| Refrigerant | R404a/R22 | R404a/R22 | R404a/R22 | R404a/R22 | R404a/R22 |
| Temperature | -15℃~-25℃ | -15℃~-26℃ | -15℃~-27℃ | -15℃~-28℃ | -15℃~-29℃ |
| ice dispensed one time (blocks) | 63 | 33 | 44 | 33 | 27 |
| Ice bucket size(mm) | 200*80*560（5kg） | 240*80*670(10kg) | 175*120*800(15kg) | 230*120*800(20kg) | 260*120*900(25kg) |
| Machine Size (mm) | 3000*1300*915 | 2100*1540*1105 | 1590*1760*1155 | 2130*1980*1255 | 2220*1660*1355 |
| +280(Motors) | +280(Motors) | +280(Motors) | +280(Motors) | +280(Motors) |
