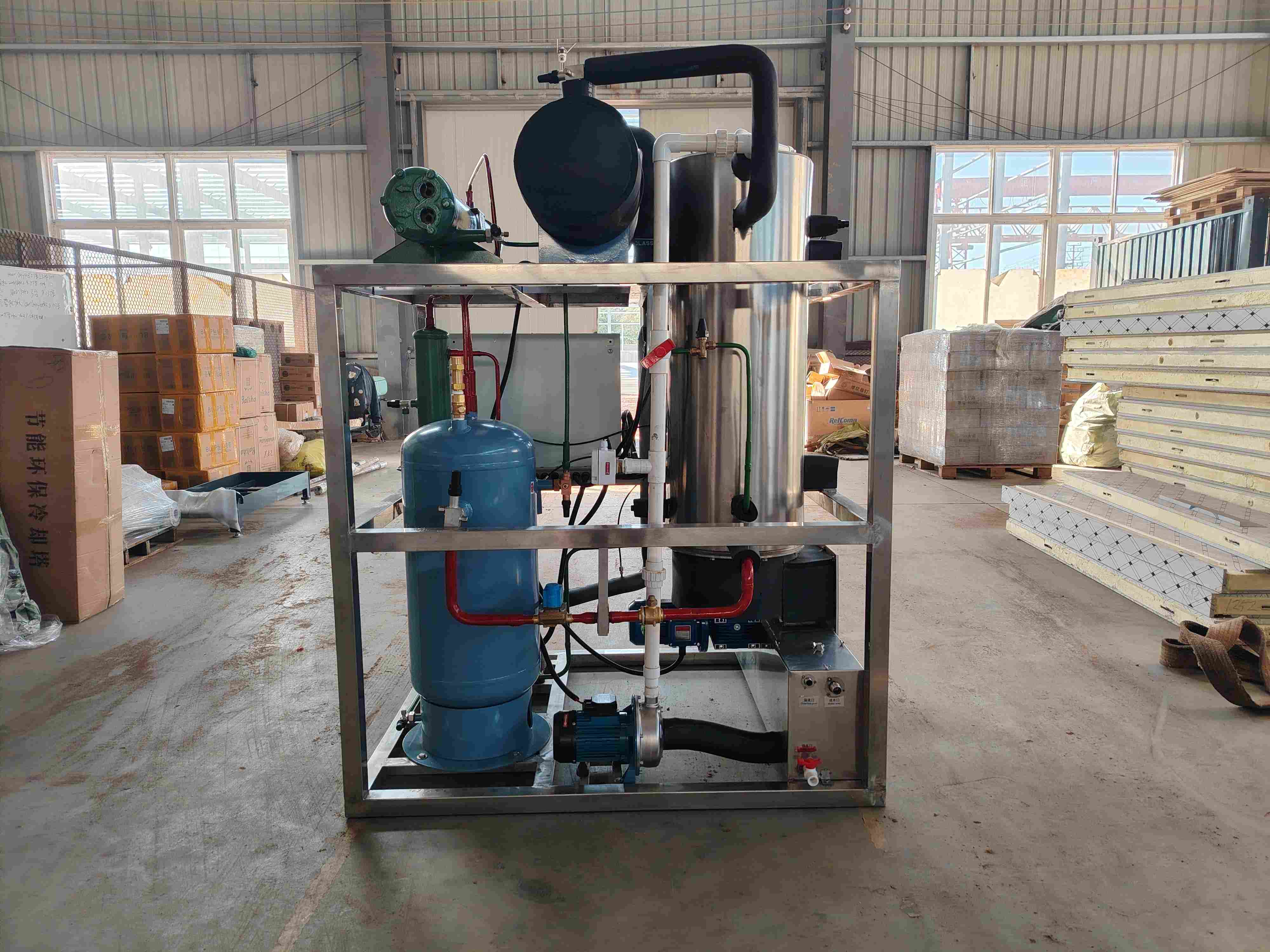

5 ton tube ice machine

Description

+86-18596077851

[email protected]

Description

Descriptions

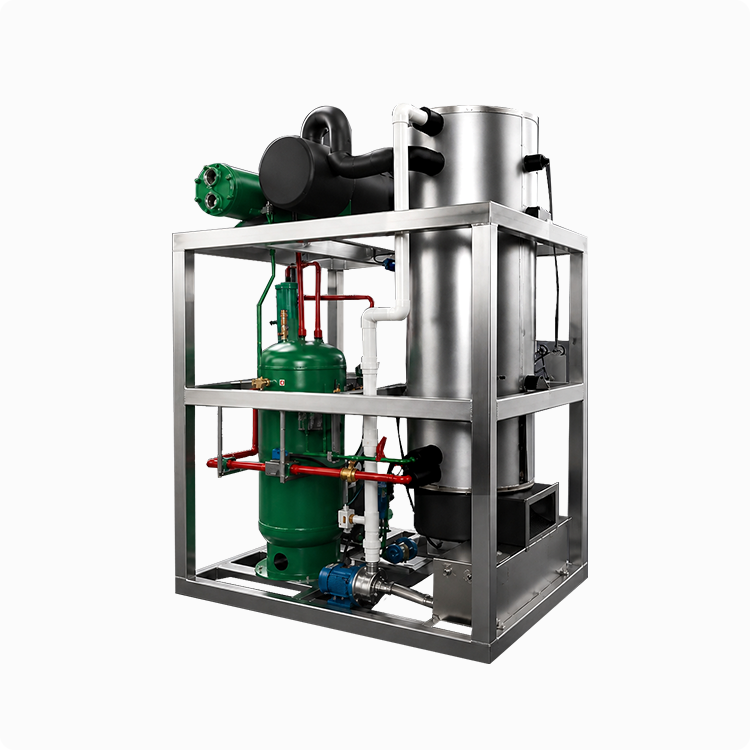

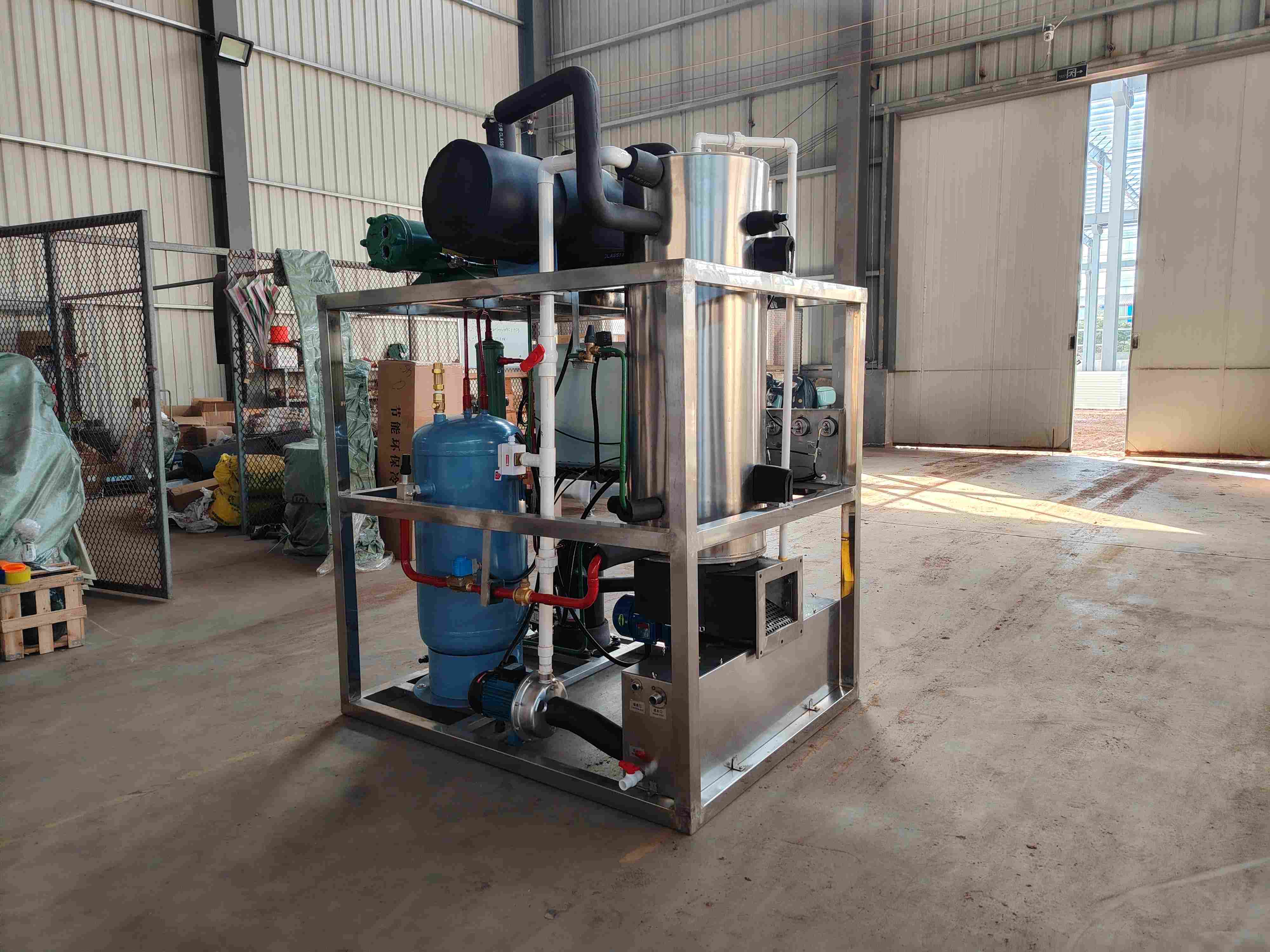

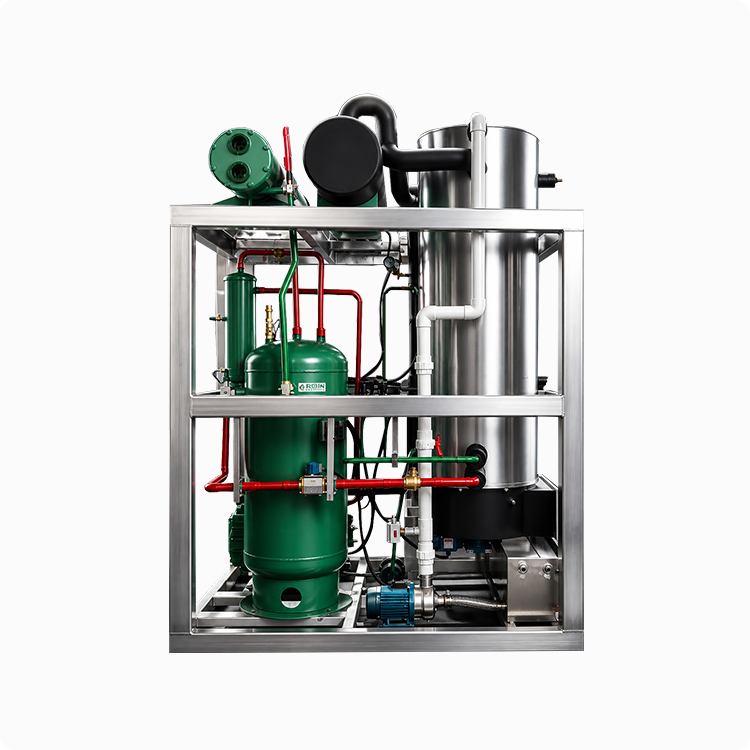

The 5-ton tube ice machine is a large-scale industrial or commercial ice-making unit capable of producing approximately 5 tons of hollow, cylindrical ice per day. This type of equipment is widely used in food processing, seafood preservation, concrete cooling, and the food service industry.

Ice Production Capacity: 5 tons/24 hours (under standard operating conditions: ambient temperature 30°C, water inlet temperature 20°C).
Ice Dimensions:
Outer Diameter: Typically φ22mm, φ28mm, φ29mm, φ32mm, φ35mm, etc. (selectable).
Inner Diameter: Adjustable, typically between φ5mm and φ10mm.
Length: Approximately 25mm–42mm.
Power Consumption:
Input Power: Approximately 17kW–22.7kW (depending on compressor brand and energy efficiency).
Refrigeration Capacity: Approximately 31.8kW–49.6kW.
Cooling Method:

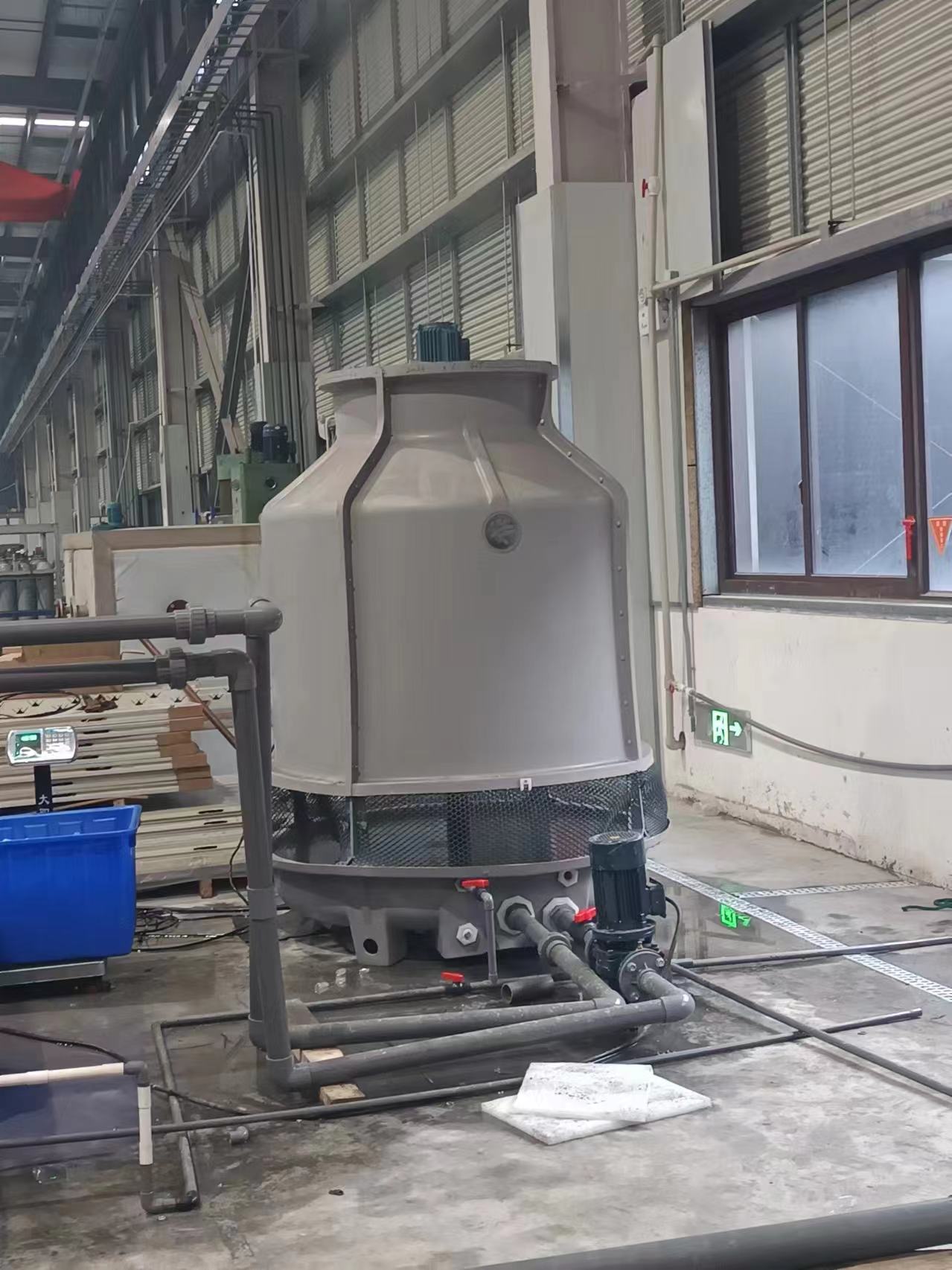

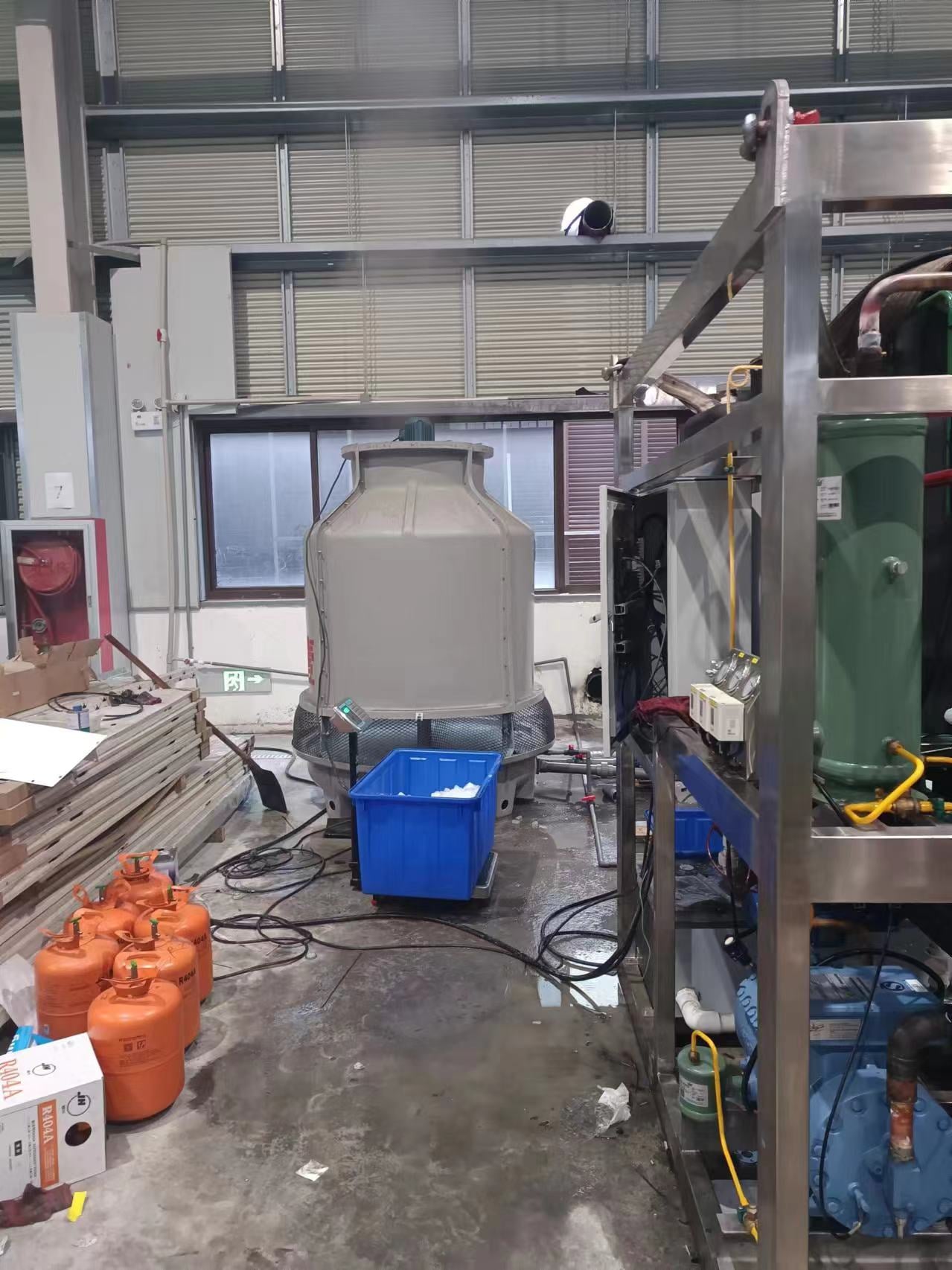

Water-cooled: Most common; high efficiency; requires a cooling tower.
Air-cooled: Easy to install but significantly affected by ambient temperature; efficiency drops in high-temperature regions.
Refrigerant: Commonly uses eco-friendly refrigerants such as R404A, R448A, or R507C.
Material: Parts in contact with water are typically made of SUS304 or SUS316 stainless steel, complying with food hygiene standards.

Brand-name Compressors

The equipment is equipped with compressors from renowned international brands such as Bitzer and Refcomp, delivering robust power and powerful cooling performance, ensuring stable and durable operation of the entire unit.

Precision-Crafted Piping

Made from food-grade 304 stainless steel and treated with a professional annealing process, the piping offers excellent toughness, deformation resistance, and corrosion resistance, ensuring a longer service life.

Sturdy Frame

The machine's framework is constructed from food-grade materials and features a robust, stable load-bearing structure; it is resistant to deformation and capable of continuous, full-load operation over the long term.

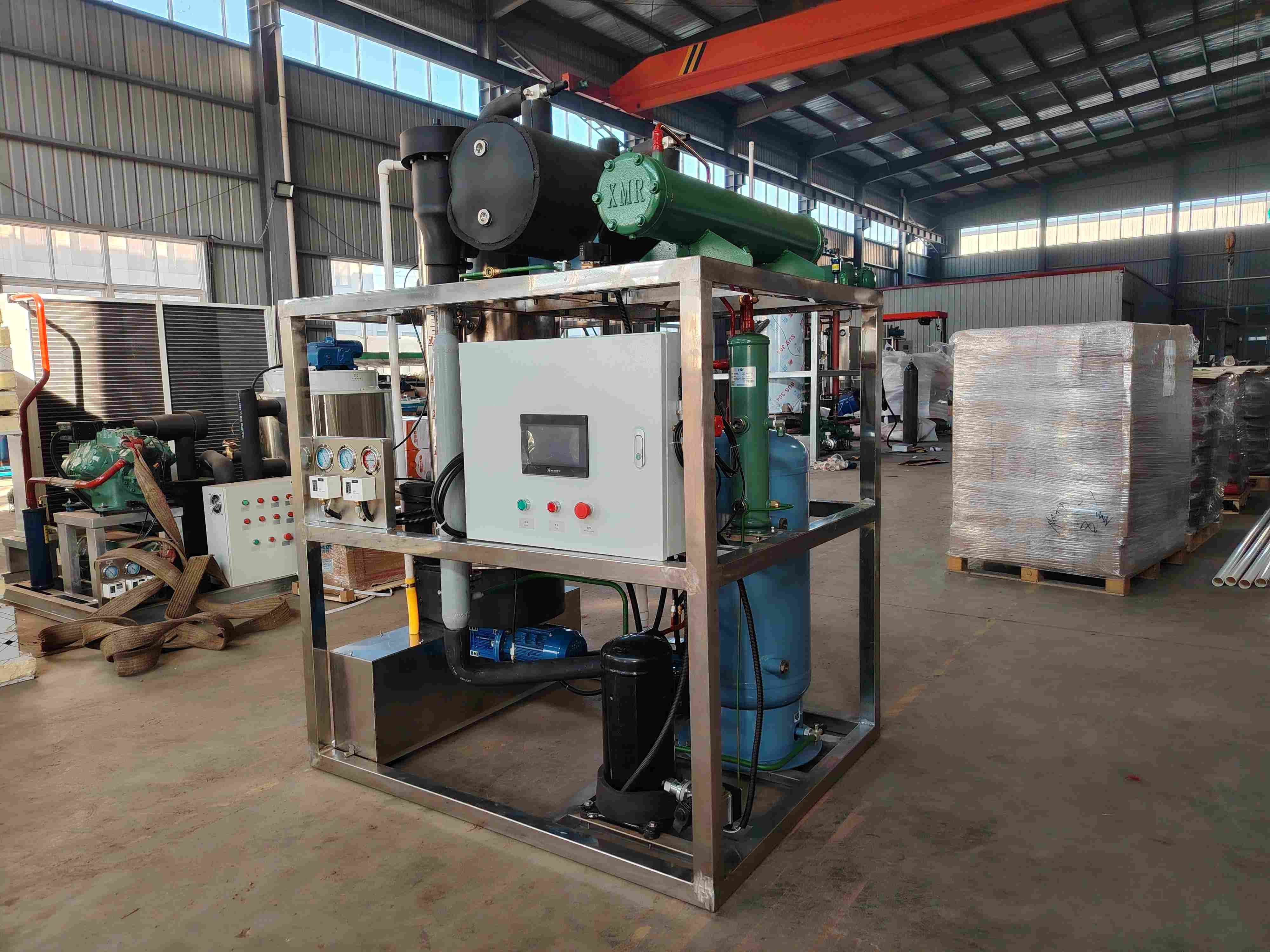

Control Panel

Equipped with an intelligent PLC control system and a high-definition touchscreen, it offers intuitive and simple operation; it supports automatic water refilling, ice making, and ice harvesting processes, as well as programmable start/stop scheduling, ensuring a high level of automation.

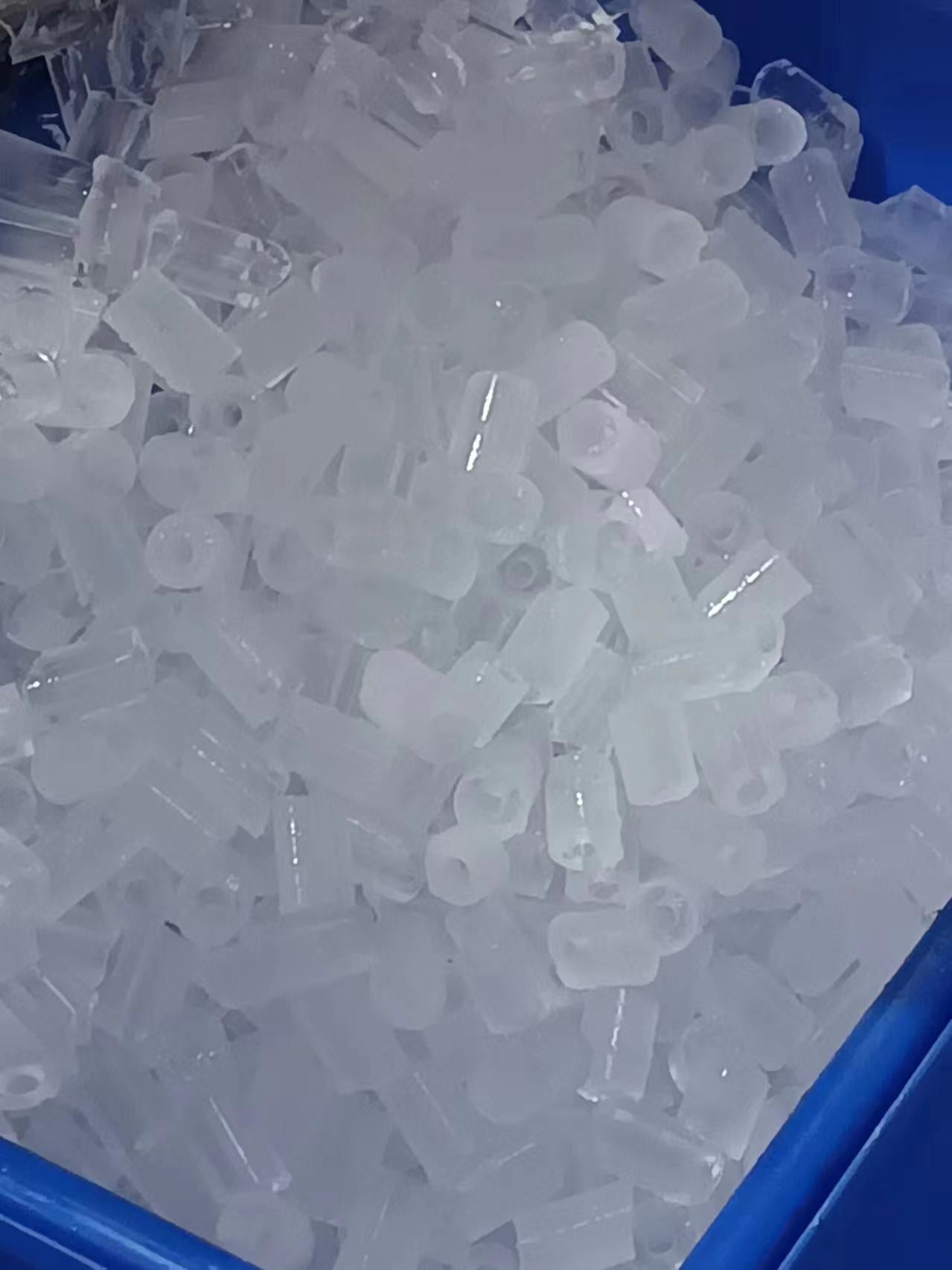

Tubular Ice Of Superior Quality

Crystal clear, high-quality tubular ice melts slowly and is widely used in various industries

Application Scenarios

Widely Used In Fields Such As Food Preservation,Beverage Cooling, And Industrial Cooling

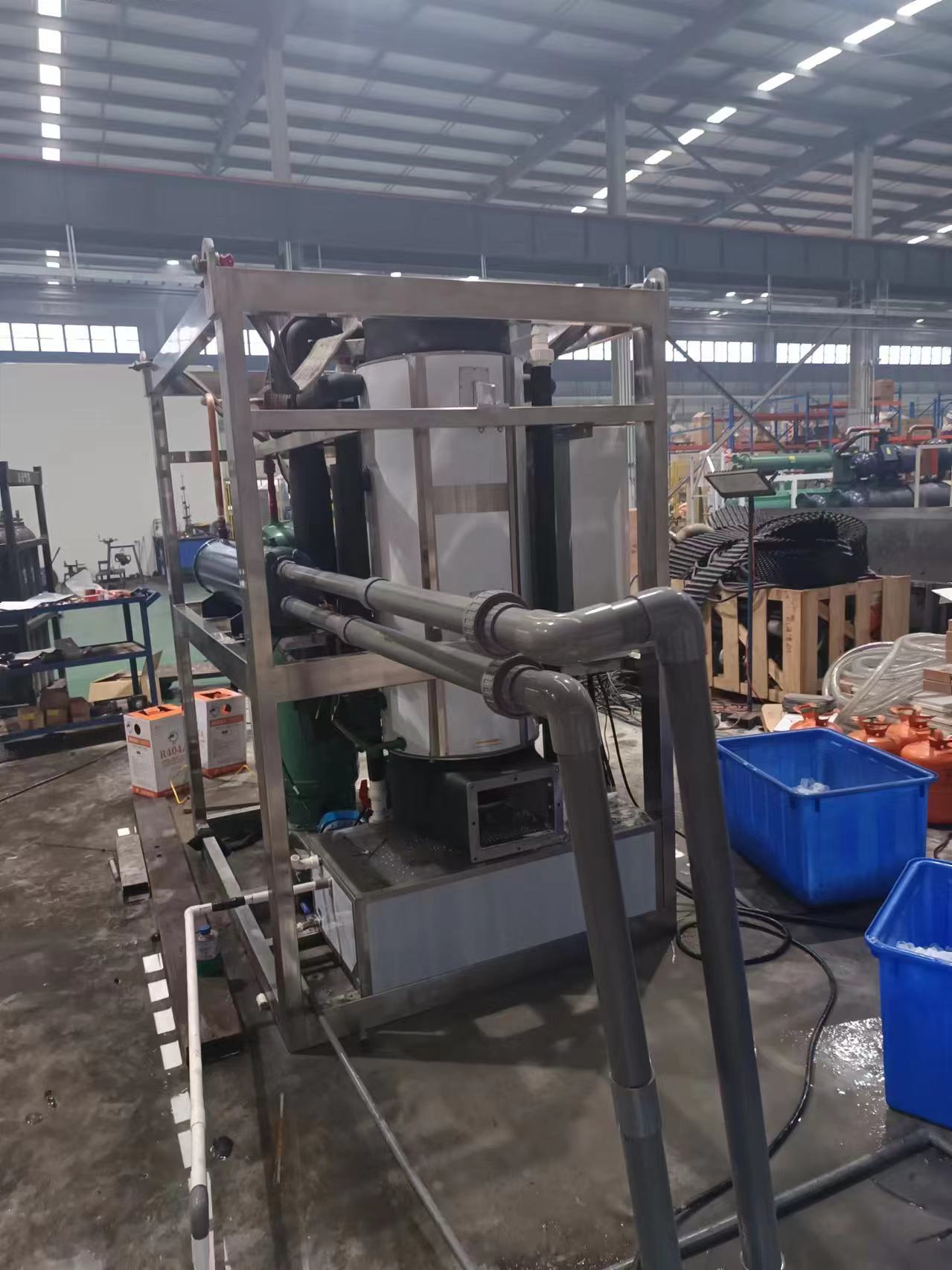

Customer Visit

On-site visit to production lines, customized complete set solutions

Tube Ice Machine Parameters

Items/Model	RBT-1T(1ton/day)	RBT-2T (2 tons/day)	RBT-3T (3T/day)	RBT-5T (5 tons/day)	RBT-10T (10 tons/day)
Compressor	Copeland/Refcomp	Copeland/Refcomp	Refcomp/Bitzer	Refcomp/Bitzer	Refcomp/Bitzer
Cooling method	Water cooling / Air cooling	Water cooling / Air cooling	Water cooling / Air cooling	Water cooling / Air cooling	Water cooling
Compressor power	5	10	15	25	50
Ice Cutter Power	0.75KW	0.75KW	0.75KW	0.75KW	0.75KW
Circulating water pump power	0.75KW	1.1KW	1.1KW	1.5KW	1.5KW
Cooling Tower Water Pump	1.1KW	1.5KW	1.5KW	3KW	4KW
Cooling Tower Motor	0.18KW	0.37KW	0.37KW	0.55KW	1.5KW
Main Machine Dimensions	140011001950	150012002130	170013002260	190014002730	220016003040
Water Tower Size	100010001900	120012002200	120012002200	167016702290	212021202550
Main machine weight (kg)	730	1000	1150	1700	2500
Water tower weight (kg)	60	80	80	116	290

Specific application of tube ice machine:

1.Fishery and seafood products

Tube ice is hollow,hard and transparent, long storage life,not easy to melt, good air permeability,etc.,it is one of the best ice species for seafood and aquatic products preservation.

Tube ice without horn will not hurt the cold storage gooods, hollow in the center and breathable,it can guarantee the quality of seafood,compared with the sheeticewith thelonger preservation for the sea-food and aquatic products.

2.Commercial cold drinks

Bar, hotel,cold drink shop, KTV and other places. Tube ice is a popular addition to the cold drinks,especially in tropical Southeast Asia,it is one of the best ways for people to beat the summer hot.

3.Tube ice is also one of the types of wholesale and retail ice for ice making factories.Because of its beautiful appearance,and not easy to melt, it is particularly suitable for packaging for wholesale and retail to hotels,supermarkets,cold drink shops etc.

Máquina de hielo en tubo Prámetro

Items/Model	RBT-1T (1T/día)）	RBT-2T (2T/día)	RBT-3T (3T/día)	RBT-5T (5T/día)	RBT-10T (10T/día)
Compresor	Copeland/Refcomp	Copeland/Refcomp	Refcomp/Bitzer	Refcomp/Bitzer	Refcomp/Bitzer
Método de refrigeración	Refrigeración por agua/refrigeración por aire	Refrigeración por agua/refrigeración por aire	Refrigeración por agua/refrigeración por aire	Refrigeración por agua/refrigeración por aire	Refrigeración por agua
Potencia del compresor	5	10	15	25	50
Potencia del cortador de hielo	0.75KW	0.75KW	0.75KW	0.75KW	0.75KW
Potencia de la bomba de agua circulante	0.75KW	1.1KW	1.1KW	1.5KW	1.5KW
Bomba de agua de la torre de refrigeración	1.1KW	1.5KW	1.5KW	3KW	4KW
Motor de la torre de refrigeración	0.18KW	0.37KW	0.37KW	0.55KW	1.5KW
Tamaño de la máquina principal	140011001950	150012002130	170013002260	190014002730	220016003040
Tamaño de la torre de agua	100010001900	120012002200	120012002200	167016702290	212021202550
Peso de la máquina principal KG	730	1000	1150	1700	2500
Peso de la torre de agua KG	60	80	80	116	290

Features：

1. With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.

2. The use of stainless steel SUS304,aluminum alloy plate-type evaporator, accords with the health and safety requirements.

3. The use of air pressure control excludes the risk of rupture of the evaporator tube and the tube ice diameter can be adjusted according to customers' needs.

Application:

In sectors with rigorous demands for ice quality and supply stability—such as cold chain logistics, food processing, aquatic product preservation, and chemical cooling—the 1-ton daily output tube ice machine has emerged as a pivotal piece of equipment for safeguarding operational efficiency and product quality. Its unique hollow tubular ice structure features high hardness, slow melting rates, and superior cooling efficiency compared to traditional block ice, thereby meeting the demands for large-scale, continuous commercial and industrial ice supply.

Services

Service before sale

1.One-on-one exclusive customer service staff, 24 hours online.

2.Inquiry, email, message will be replied at first time.

3.Supply professional technical parameters, video picture sharing, project design.

Service on sale

1.Ensure customer payment security.

2.Ensure the customer's price is stable and reasonable.

3.Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.

Service after sale

1.Arrange high-efficiency delivery and safe transport.

2.Supply installation training, direction for use, maintenance instructions, technical support, all necessary documents you need and oversea service.

FAQ

1.Can I customize the machine?

Yes. You can choose output, material, accessories brand, etc.

2.Are the prices on the website accurate?

No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.

3.How do I get a more accurate price?

Tell the salesman your requirements and they will give you a more accurate price.

4.How long will it take to make the machines?

The production time required for machines of different output is different. Peak season requires longer production time.

5.Is there any guarantee for my payment?

In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.

6.How do I receive the goods?

After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
