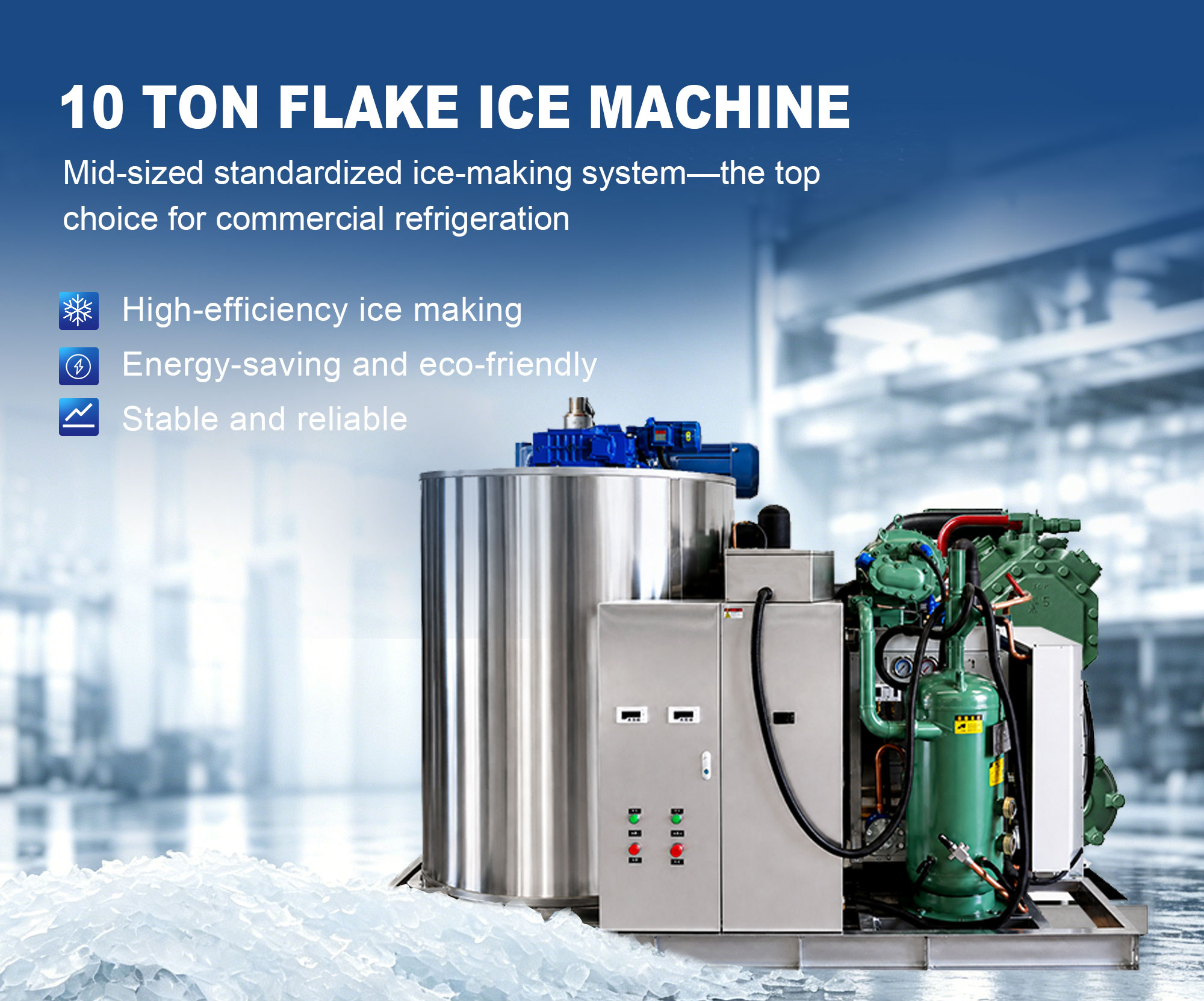

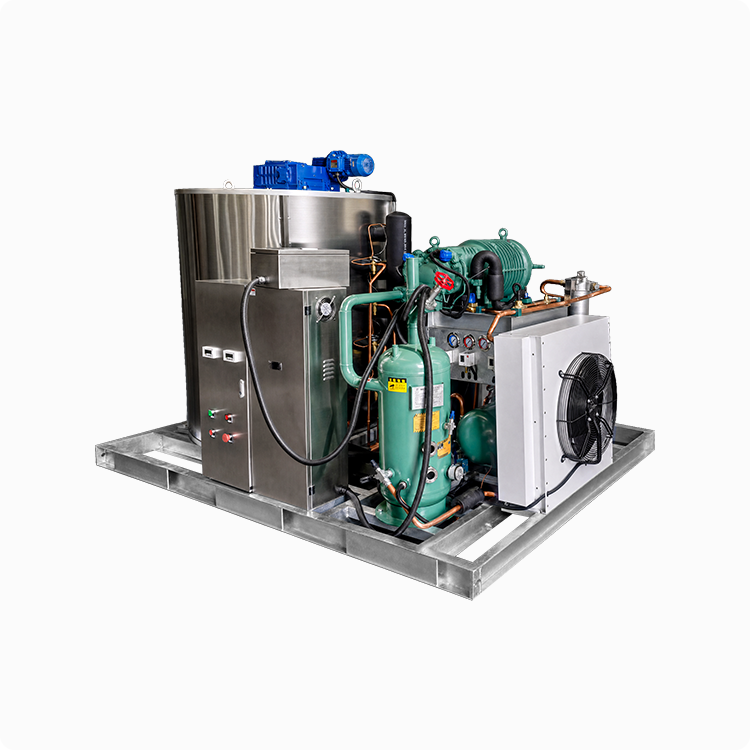

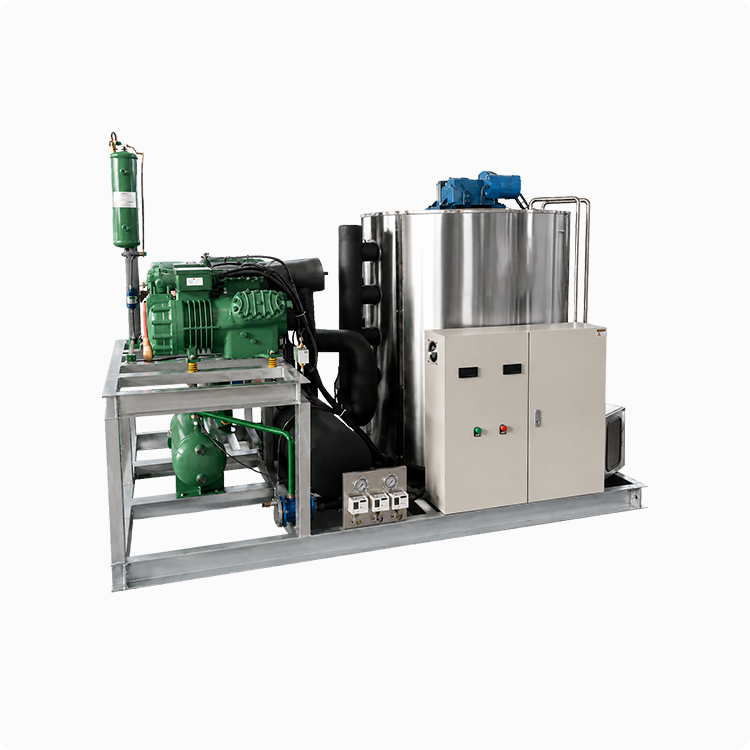

10 Ton Flake Ice Machine Industrial Ice Making Machines for Fish
10-ton flake ice machine produces 10,000 kg (10 metric tons) of flake ice per 24 hours, typically used in seafood processing, concrete cooling, food preservation, or fisheries. Key specs vary by model but commonly include:
Capacity: 10,000 kg/24h
Ice temperature: -5°C to -15°C (flake thickness ~1.5–2.3 mm)
Power: 32–45.5 kW (380V/3-phase/50Hz, often customizable)
Cooling type: Air-cooled (most common) or water-cooled
Evaporator material: SUS304/SUS316 stainless steel
Refrigerant: R404A or R22 (phase-out compliant options increasingly available)
Compression: Usually Refcomp, Bitzer, or Hanbell compressors
Control: PLC-based automation with safety protections (water shortage, overload, etc.)
| High-efficiency evaporator, fast ice production and stable output | |
 | |
| It adopts an annealing process to eliminate welding internal stress, has a stainless steel structure, high heat exchange efficiency, continuous and uninterrupted ice making, no decrease in full load operation, and can stably produce the rated ice output even for large tonnage models. | |
 | |
| Intelligent fully automatic control system | |
| |
| The PLC control program and touch screen control panel feature automatic water intake, automatic ice making, automatic shutdown when full of ice, automatic restart when ice is low, water shortage protection, high and low voltage overload protection, and fault code self-checking, requiring no dedicated personnel to operate it. | |
 | |
| Core Precision Spiral Ice Blade | |
| |
| Stainless steel precision spiral ice blade, scrapes ice evenly with less ice debris, wear-resistant and won't damage the evaporation tank, operates quietly, is durable, and saves energy. | |
 | |
| High-efficiency condenser for rapid heat dissipation and stable ice-making production | |
| |
| High-efficiency internally threaded copper tube heat exchanger, with a larger heat exchange area and better heat exchange effect.. | |
 | |
| Application Scenarios | |
| |
| Widely Used In Fields Such As Food Preservation,Beverage Cooling, And Industrial Cooling | |
 | |
| High-quality flake ice, highly efficient refrigeration | |
| |
| Ice flakes are available in thicknesses from 1.8 to 2.2 mm; the ice flakes have a large contact area, are dry and do not easily stick together or clump, resulting in rapid cooling and thorough mixing of materials. The ice flakes have rounded edges without sharp corners, preventing scratches or punctures to the materials being frozen during operation. | |
 | |
| Customer Visit | |
| |
| On-site visit to production lines, customized complete set solutions | |
 | |
 |
 |
 |
 |
| Technical Parameter | |||
| Name | Producer | Name | Technical Data |
| Compressor | Bitzer | Ice production | 15000kg/24h |
| Evaporator | Jinan Robin | Refrigeration capacity | 97.5kw |
| Condenser | LT | Evaporating temp. | -25℃ |
| Expansion valve | Danfoss | Condensing Temp. | 40℃ |
| Filter | Danfoss | Ambient Temp. | 25℃ |
| H-L pressure controller | Danfoss | Inlet water Temp. | 18℃ |
| Reducer | GONGJI | Total Power | 64kw |
| Circulating water pump | HONKING | Compressor Power | 40HP*2 |
| Brine pump | RDOSE | Reducer Power | 0.75KW |
| Infra-red ray | RIKO | Water pump Power | 0.37KW |
| Oil Separator | FASIKE | Brine Pump | 0.016KW |
| Gas filter | FASIKE | Standard Power | 3P-440V-60Hz |
| Gas&Oil separator | FASIKE | Inlet water pressure | 0.1Mpa-0.5Mpa |
| Solenoid valve | Castel | Refrigerant | R404A |
| PLC controller | LG | Flake ice Temp. | -5℃ |
| Contactor | Schneider | Feeding water tube size | 1/2" |
| Thermal Relay | Schneider | Net weight | 2250kg |
| Phase sequence | CHINT | Dimension(ice machine) | 3900x2250x2200mm |
| Air Switch | Schneider | Dimension(ice storage room) | exclude |
