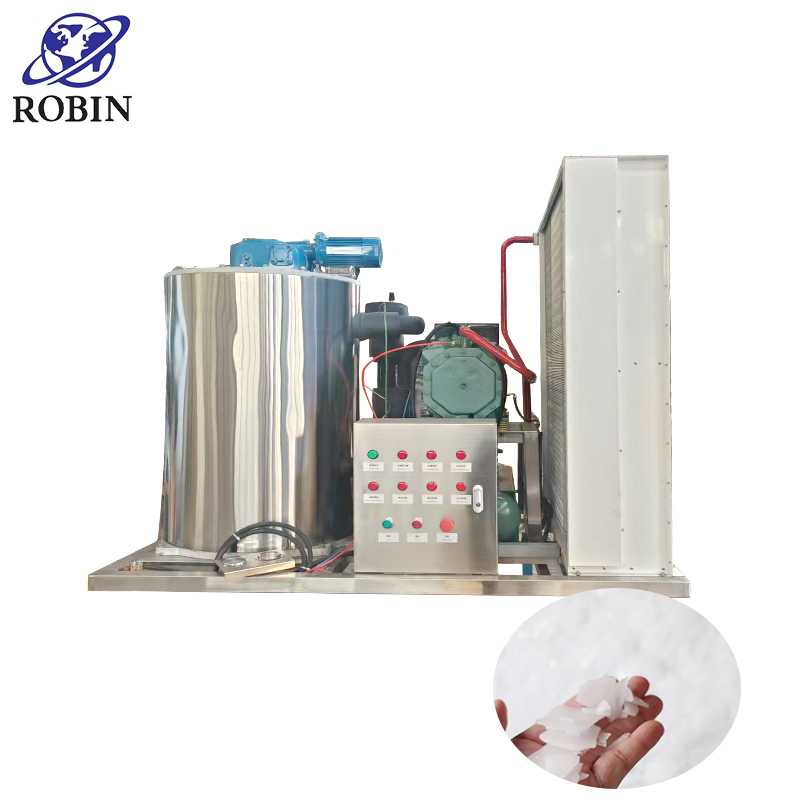

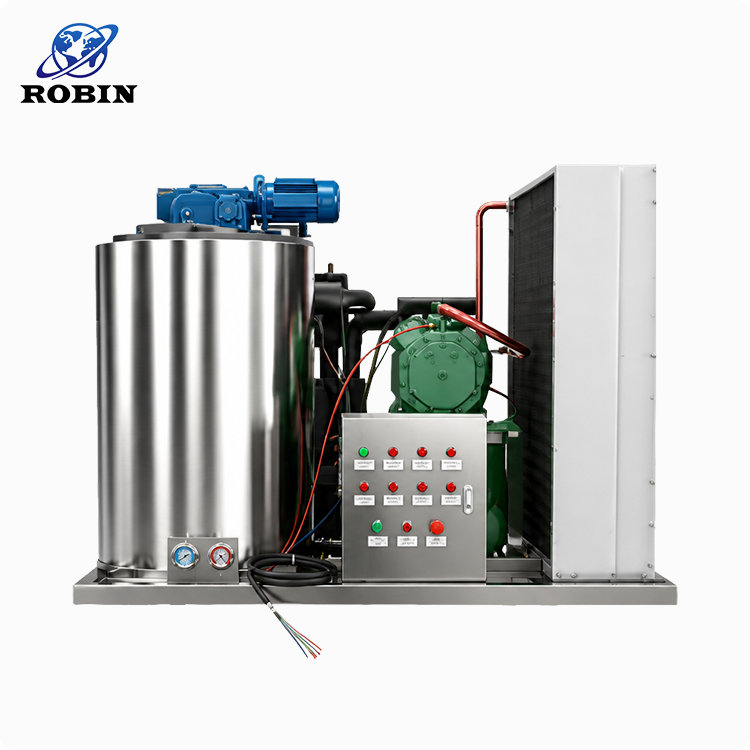

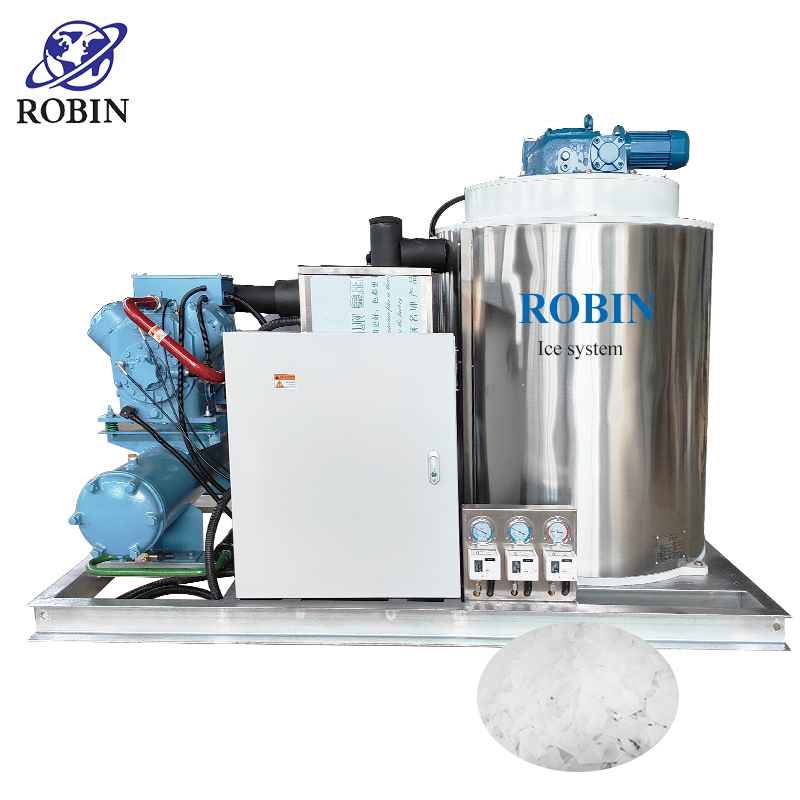

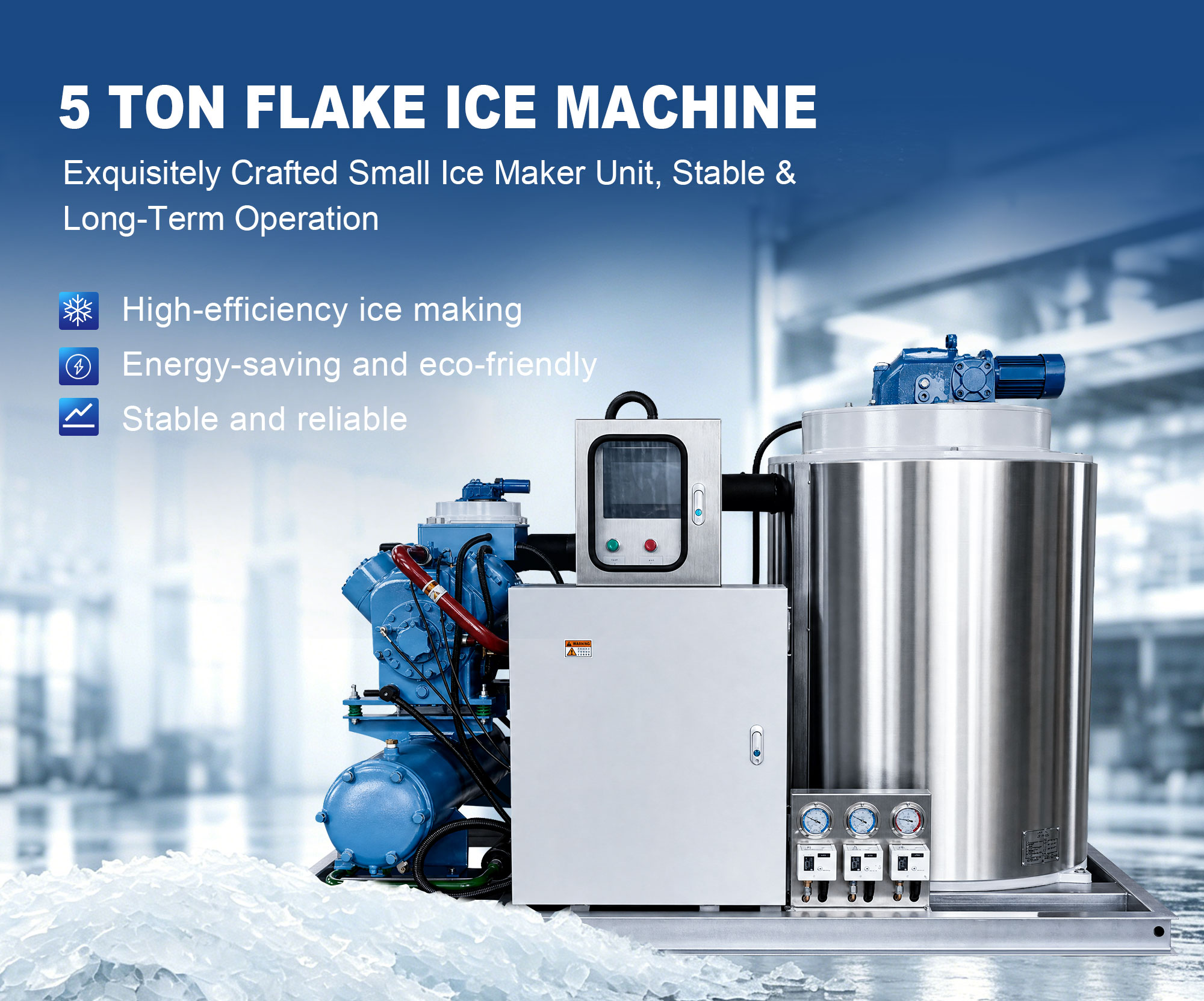

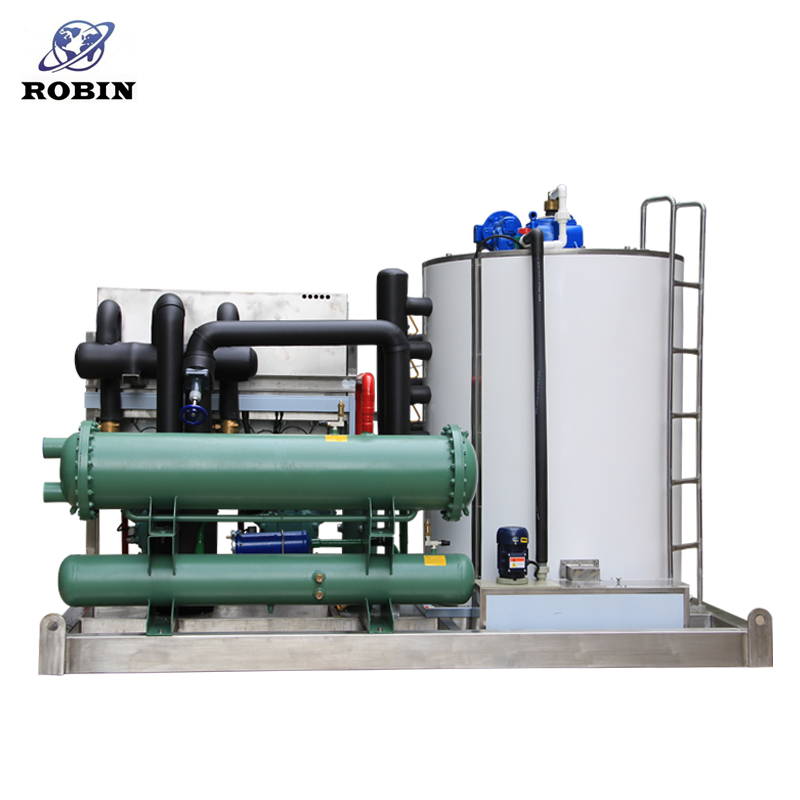

5-ton/day flake ice machine

The 5-ton flake ice machine is an industrial-grade ice-making unit with a daily production capacity of approximately 5 tons (per 24-hour cycle). Characterized by soft, low-temperature flakes that cool rapidly and lack sharp edges, this equipment is widely used in sectors such as seafood preservation, food processing, concrete cooling, and medical laboratories.

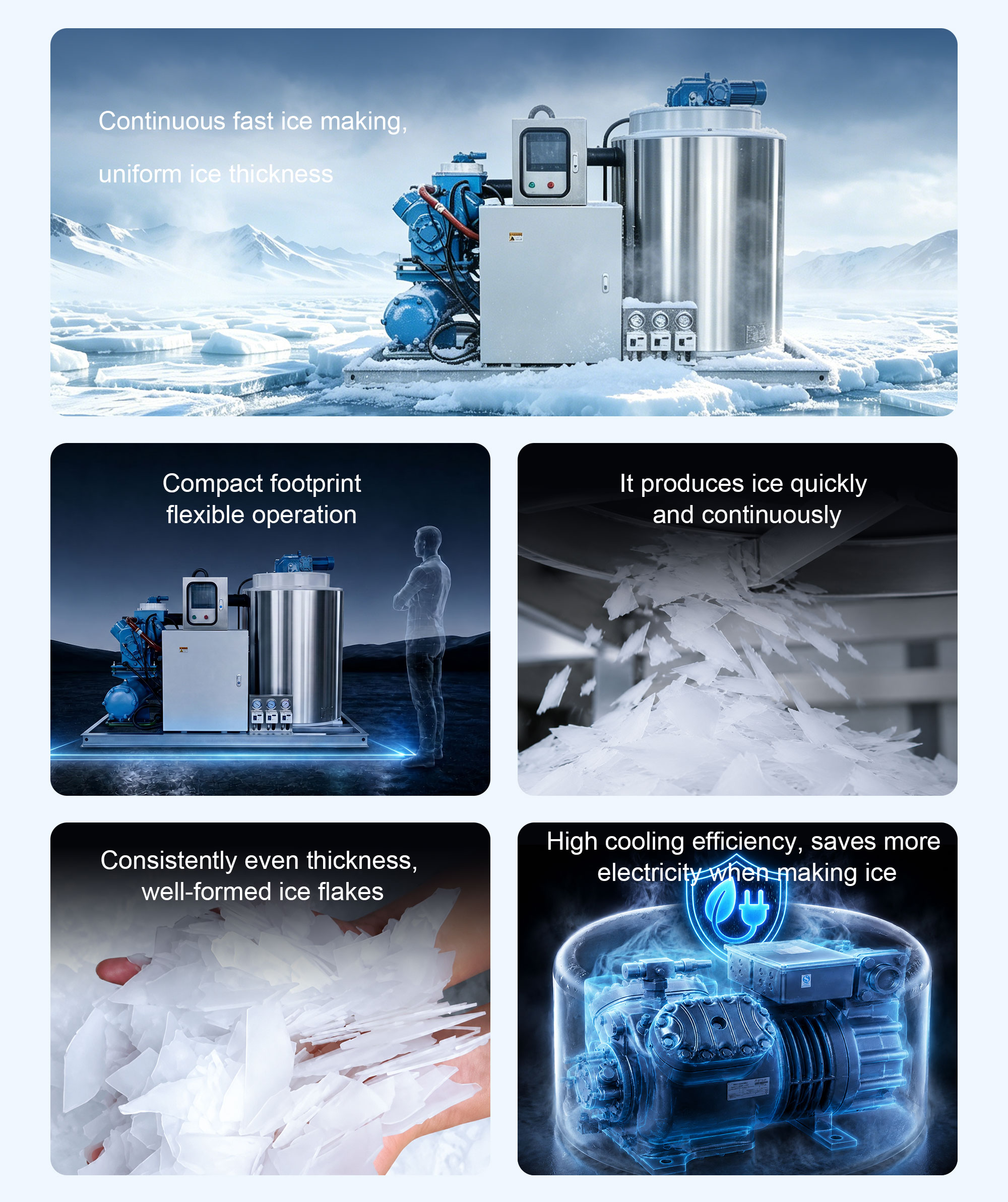

High-efficiency evaporator, fast ice production and stable output

It adopts an annealing process to eliminate welding internal stress, has a stainless steel structure, high heat exchange efficiency, continuous and uninterrupted ice making, no decrease in full load operation, and can stably produce the rated ice output even for large tonnage models.

Intelligent fully automatic control system

The PLC control program and touch screen control panel feature automatic water intake, automatic ice making, automatic shutdown when full of ice, automatic restart when ice is low, water shortage protection, high and low voltage overload protection, and fault code self-checking, requiring no dedicated personnel to operate it.

Core Precision Spiral Ice Blade

Stainless steel precision spiral ice blade, scrapes ice evenly with less ice debris, wear-resistant and won't damage the evaporation tank, operates quietly, is durable, and saves energy.

High-efficiency condenser for rapid heat dissipation and stable ice-making production

High-efficiency internally threaded copper tube heat exchanger, with a larger heat exchange area and better heat exchange effect..

Application Scenarios

Widely Used In Fields Such As Food Preservation,Beverage Cooling, And Industrial Cooling

High-quality flake ice, highly efficient refrigeration

Ice flakes are available in thicknesses from 1.8 to 2.2 mm; the ice flakes have a large contact area, are dry and do not easily stick together or clump, resulting in rapid cooling and thorough mixing of materials. The ice flakes have rounded edges without sharp corners, preventing scratches or punctures to the materials being frozen during operation.

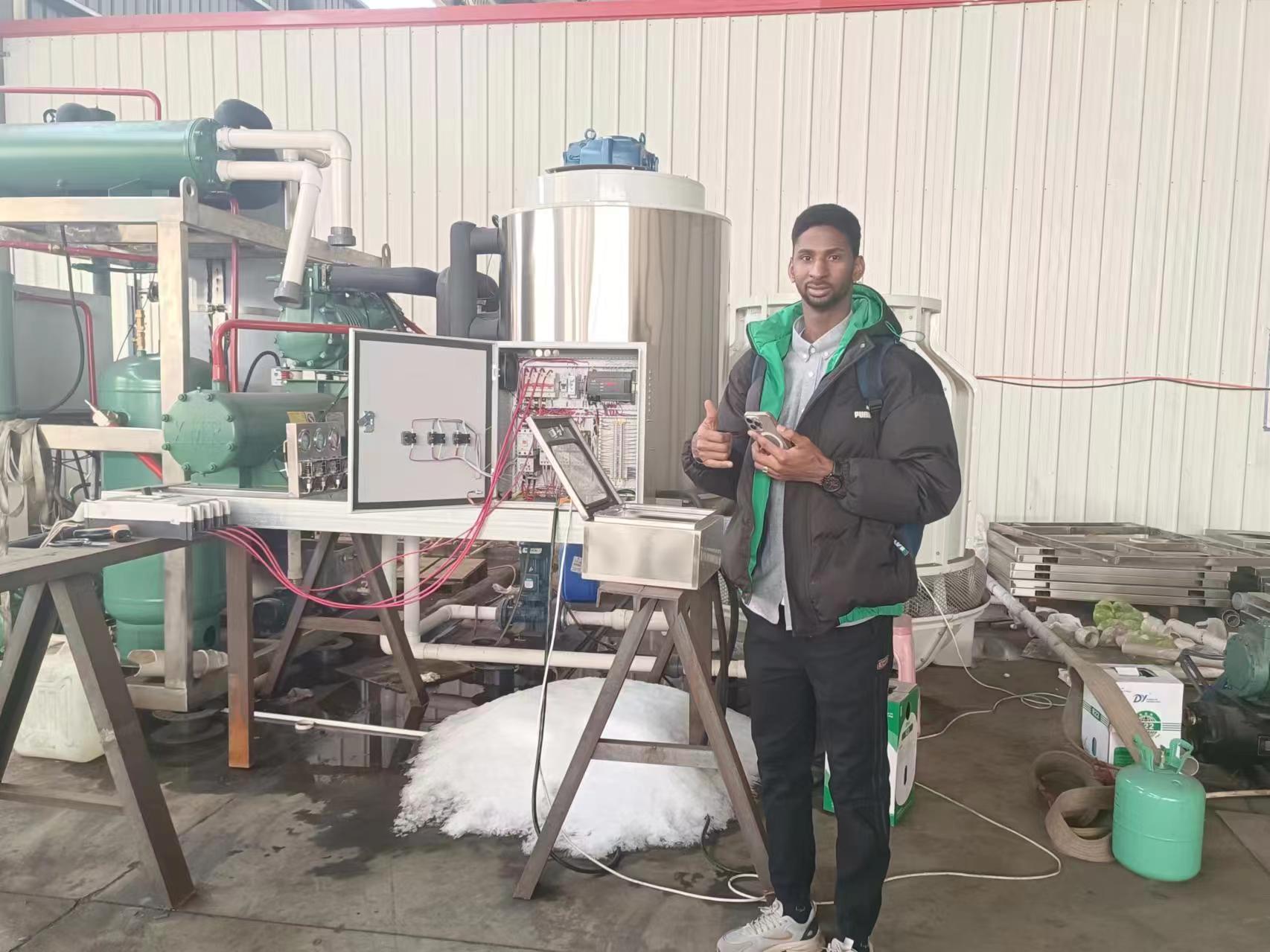

Customer Visit

On-site visit to production lines, customized complete set solutions

Flake Ice Machine Parameters

1. Key Technical Specifications
While specifications vary by brand and configuration, 5-ton models typically feature the following:

‌Daily Production Capacity‌: 5 tons/24 hours (based on standard operating conditions: water inlet temperature 20°C, ambient temperature 25°C).
‌Ice Flake Specifications‌: Thickness typically ranges from 1.0mm to 2.5mm; irregular flake shape; temperature approximately -5°C to -8°C.
‌Refrigeration System‌:
‌Refrigerant‌: Commonly R404A or R22 (some newer models support eco-friendly refrigerants).
‌Compressor Power‌: Approximately 14.5kW – 17.7kW.
‌Total Power‌: Approximately 16.7kW – 21.1kW (including auxiliary power for water pumps, gear reducers, etc.).
‌Cooling Method‌:
‌Water-cooled‌: High efficiency; suitable for areas with abundant water supply; requires a cooling tower.
‌Air-cooled‌: Easy to install; requires no additional water piping; however, performance is more significantly affected by ambient temperature.
‌Dimensions and Weight‌:
Overall dimensions are approximately 1800mm × 1500mm × 1500mm (excluding the ice storage bin).
Machine weight is approximately 800kg – 1500kg.
