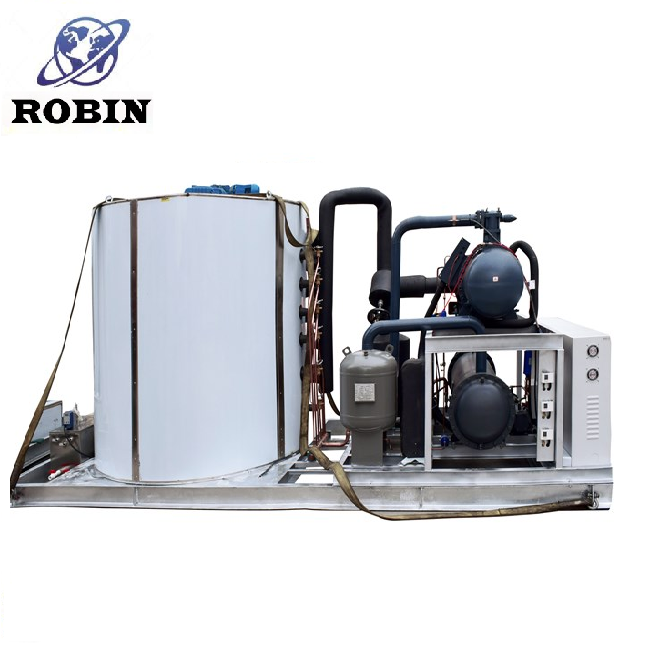

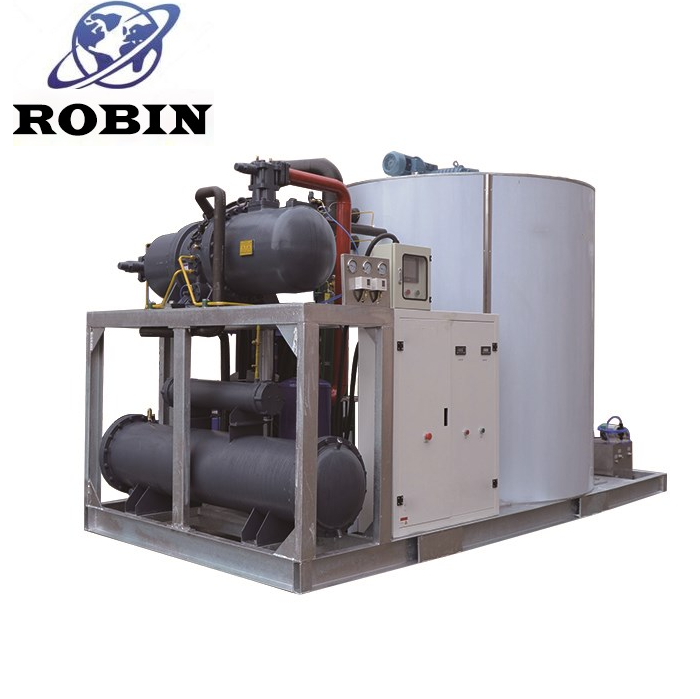

The 10-ton water-cooled flake ice machine is an industrial ice-making system with a daily production capacity of approximately 10,000 kg (10 tons). It operates by spraying a thin film of water onto the surface of an evaporator, allowing it to freeze, and then scraping it off to form thin flakes (typically 1.5–2.5 mm thick). Utilizing a water-cooling method, this equipment is ideally suited for applications such as aquatic product preservation, food processing, concrete cooling, and commercial fishing operations. Specifications: Daily production capacity of 10 tons/24h; Voltage: 380V, 3-phase, 50Hz (customizable); Refrigerant: Primarily R404A; Evaporator Material: SUS304/316 stainless steel; Ice Temperature: -5°C to -15°C; Total Power Consumption: Approx. 32–46 kW (depending on brand and compressor configuration). Cooling Method: Water-cooled (requires a matching cooling tower or circulating water system). Unlike air-cooled models, this system is suitable for high-temperature environments, locations with limited airflow, or noise-sensitive settings. Core Structure: Integrated or split-system design, comprising a rotary evaporator, ice-scraping mechanism, and ice storage hopper. Features automated control (PLC touchscreen) and produces soft flake ice with no sharp edges, ensuring high cooling efficiency.
| High-efficiency evaporator, fast ice production and stable output | |
 | |
| It adopts an annealing process to eliminate welding internal stress, has a stainless steel structure, high heat exchange efficiency, continuous and uninterrupted ice making, no decrease in full load operation, and can stably produce the rated ice output even for large tonnage models. | |
 | |
| Intelligent fully automatic control system | |
| |
| The PLC control program and touch screen control panel feature automatic water intake, automatic ice making, automatic shutdown when full of ice, automatic restart when ice is low, water shortage protection, high and low voltage overload protection, and fault code self-checking, requiring no dedicated personnel to operate it. | |
 | |
| Core Precision Spiral Ice Blade | |
| |
| Stainless steel precision spiral ice blade, scrapes ice evenly with less ice debris, wear-resistant and won't damage the evaporation tank, operates quietly, is durable, and saves energy. | |
 | |
| High-efficiency condenser for rapid heat dissipation and stable ice-making production | |
| |
| High-efficiency internally threaded copper tube heat exchanger, with a larger heat exchange area and better heat exchange effect.. | |
 | |
| Application Scenarios | |
| |
| Widely Used In Fields Such As Food Preservation,Beverage Cooling, And Industrial Cooling | |
 | |
| High-quality flake ice, highly efficient refrigeration | |
| |
| Ice flakes are available in thicknesses from 1.8 to 2.2 mm; the ice flakes have a large contact area, are dry and do not easily stick together or clump, resulting in rapid cooling and thorough mixing of materials. The ice flakes have rounded edges without sharp corners, preventing scratches or punctures to the materials being frozen during operation. | |
 | |
| Customer Visit | |
| |
| On-site visit to production lines, customized complete set solutions | |
 | |
 |
 |
 |
 |
| Technical Parameter | ||
| Model number: RBF-10T | ||
| No | Name | Technical parameter |
| 1 | Daily capacity | 10000KG/24h |
| 2 | Refrigeration capacity | 65kw |
| 3 | Evaporating temp | -20℃ |
| 4 | Condensing temp | 40℃ |
| 5 | Environment temp | 25℃ |
| 6 | Water supply temp | 20℃ |
| 7 | Installation power | 0.95KW |
| 8 | Reducer power | 0.75KW |
| 9 | Water pump power | 0.18KW |
| 10 | Salt pump power | 0.016KW |
| 11 | Power supply | 3P/380V/50Hz |
| TO BE CONFIRMED BY CUSTOMERS | ||
| 12 | Water supply pressure | 0.1Mpa-0.5Mpa |
| 13 | Gas | R404a |
| 14 | Ice temperature | -8℃ |
| 15 | Water pipe size | 6"*2 |
| 16 | Net weight | 795KG |
| 17 | Ice thickness | 1.8MM-2.2MM |
| 18 | evaporator size mm | 1720mm*1270mm*1860mm |
